1. The Nearest Neighbor Problem

Given a query vector q and a collection of N vectors in d dimensions, the k-nearest neighbor (k-NN) problem asks for the k vectors most similar to q. The brute-force solution computes the distance between q and every vector in the collection, then returns the top k. This requires $O(N \times d)$ operations per query, which becomes prohibitive as N grows into the millions. Code Fragment 19.2.2 below puts this into practice.

# Brute-force k-NN search with NumPy
import numpy as np
import time

def brute_force_knn(query, vectors, k=10, metric="cosine"):
 """
 Exact nearest neighbor search.
 query: (d,) vector
 vectors: (N, d) matrix
 Returns: indices of k nearest neighbors and their distances
 """
 if metric == "cosine":
 # For normalized vectors, cosine similarity = dot product
 similarities = np.dot(vectors, query)
 # Higher similarity = more similar, so negate for argsort
 top_k_indices = np.argsort(-similarities)[:k]
 top_k_distances = similarities[top_k_indices]
 elif metric == "l2":
 distances = np.linalg.norm(vectors - query, axis=1)
 top_k_indices = np.argsort(distances)[:k]
 top_k_distances = distances[top_k_indices]
 return top_k_indices, top_k_distances

# Benchmark at different scales
dim = 768
for n_vectors in [10_000, 100_000, 1_000_000]:
 vectors = np.random.randn(n_vectors, dim).astype(np.float32)
 vectors /= np.linalg.norm(vectors, axis=1, keepdims=True)
 query = np.random.randn(dim).astype(np.float32)
 query /= np.linalg.norm(query)

 start = time.time()
 indices, distances = brute_force_knn(query, vectors, k=10)
 elapsed = time.time() - start

 print(f"N={n_vectors:>10,}: {elapsed*1000:.1f}ms")

The same brute-force search can be expressed in three lines with FAISS, which also provides a seamless upgrade path to approximate indexes:

# Library shortcut: brute-force kNN with FAISS (pip install faiss-cpu)
import faiss, numpy as np

dim, k = 768, 10
vectors = np.random.randn(1_000_000, dim).astype(np.float32)
faiss.normalize_L2(vectors) # in-place normalize for cosine similarity

index = faiss.IndexFlatIP(dim) # exact inner-product search
index.add(vectors)
distances, indices = index.search(vectors[:1], k) # query the first vector
print(f"Top-{k} indices: {indices[0]}")
# To switch to approximate search, replace IndexFlatIP with IndexHNSWFlat.

At one million vectors with 768 dimensions, brute-force search takes nearly 200ms per query. For real-time applications that need sub-10ms latency (the kind of constraint explored in Chapter 09 on inference optimization), this is unacceptable. This motivates the use of Approximate Nearest Neighbor (ANN) algorithms, which build index structures that enable much faster search at the cost of occasionally missing the true nearest neighbor.

Measuring ANN Quality: Recall@k

The standard quality metric for ANN algorithms is recall@k: the fraction of true k-nearest neighbors that appear in the ANN algorithm's top-k results. A recall@10 of 0.95 means that on average, 9.5 of the 10 returned results are actual top-10 nearest neighbors. For most RAG applications, recall@10 above 0.95 is sufficient.

2. HNSW: Hierarchical Navigable Small World Graphs

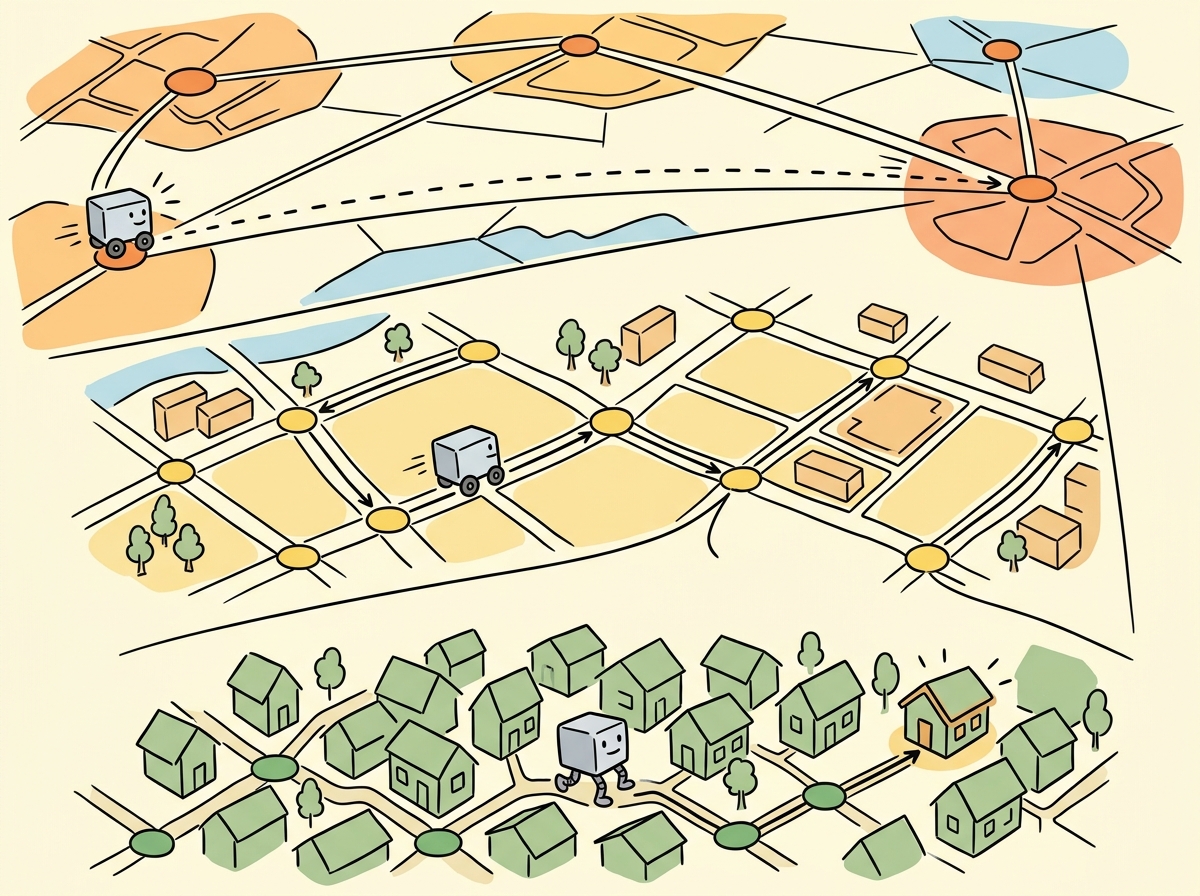

HNSW is the most widely used ANN algorithm in production vector databases. It builds a multi-layer graph where each vector is a node, and edges connect vectors that are close to each other in the embedding space. The graph is navigable: starting from any node, you can reach any other node by following a short path of edges, and greedy traversal (always moving to the neighbor closest to the query) finds excellent approximate nearest neighbors.

Graph Construction

HNSW builds the graph incrementally. When a new vector is inserted, it is assigned a random maximum layer according to an exponential distribution. The algorithm then searches for the nearest neighbors of the new vector at each layer and connects them with bidirectional edges. Two parameters control the graph structure: Figure 19.2.4 illustrates the multi-layer graph structure of HNSW.

• M (max edges per node): Controls the graph connectivity. Higher M means more edges per node, which improves recall but increases memory usage and insertion time. Typical values range from 16 to 64.
• ef_construction (search width during build): Controls how thoroughly the algorithm searches for neighbors during insertion. Higher values produce a better graph but slow down construction. Typical values range from 100 to 400.

Search Algorithm

At query time, HNSW search begins at the top layer's entry point and greedily navigates toward the query vector. At each layer, it finds the closest node, then descends to the same node in the layer below. At the bottom layer (layer 0, which contains all vectors), it performs a more thorough local search controlled by the ef_search parameter. Higher ef_search values explore more candidates, improving recall at the cost of latency.

# HNSW index with FAISS
import faiss
import numpy as np
import time

dim = 768
n_vectors = 1_000_000

# Generate random normalized vectors
np.random.seed(42)
vectors = np.random.randn(n_vectors, dim).astype(np.float32)
faiss.normalize_L2(vectors)

query = np.random.randn(1, dim).astype(np.float32)
faiss.normalize_L2(query)

# Build HNSW index
# M=32: each node connected to ~32 neighbors
# ef_construction=200: search width during build
index = faiss.IndexHNSWFlat(dim, 32)
index.hnsw.efConstruction = 200

print("Building HNSW index...")
start = time.time()
index.add(vectors)
build_time = time.time() - start
print(f"Build time: {build_time:.1f}s")
print(f"Memory: ~{index.ntotal * dim * 4 / 1e9:.2f} GB (vectors only)")

# Search with different ef values to show recall/latency tradeoff
for ef_search in [16, 64, 256]:
 index.hnsw.efSearch = ef_search

 start = time.time()
 distances, indices = index.search(query, k=10)
 search_time = (time.time() - start) * 1000

 print(f"ef_search={ef_search:>3}: {search_time:.2f}ms, "
 f"top result idx={indices[0][0]}")

3. IVF: Inverted File Index

The Inverted File (IVF) index partitions the vector space into nlist regions using k-means clustering. Each vector is assigned to its nearest cluster centroid. At query time, the algorithm first identifies the nprobe closest centroids to the query, then performs an exhaustive search only within those clusters. This reduces the number of distance computations from N to approximately N × nprobe / nlist.

IVF Construction

Building an IVF index requires a training phase where k-means clustering is performed on a representative sample of the data. The number of clusters (nlist) is typically set to the square root of N, although values between 4×sqrt(N) and 16×sqrt(N) are also common. More clusters enable more selective search but require more centroids to be compared at query time. Code Fragment 19.2.4 below puts this into practice.

# IVF index with FAISS
import faiss
import numpy as np
import time

dim = 768
n_vectors = 1_000_000

np.random.seed(42)
vectors = np.random.randn(n_vectors, dim).astype(np.float32)
faiss.normalize_L2(vectors)

query = np.random.randn(1, dim).astype(np.float32)
faiss.normalize_L2(query)

# IVF with flat (uncompressed) storage within each cell
nlist = 1024 # Number of Voronoi cells (clusters)
quantizer = faiss.IndexFlatIP(dim) # Inner product for normalized vectors
index = faiss.IndexIVFFlat(quantizer, dim, nlist, faiss.METRIC_INNER_PRODUCT)

# IVF requires a training step (k-means on the data)
print("Training IVF index...")
start = time.time()
index.train(vectors)
print(f"Training time: {time.time() - start:.1f}s")

# Add vectors to index
start = time.time()
index.add(vectors)
print(f"Add time: {time.time() - start:.1f}s")

# Search with different nprobe values
for nprobe in [1, 8, 32, 128]:
 index.nprobe = nprobe

 start = time.time()
 distances, indices = index.search(query, k=10)
 search_time = (time.time() - start) * 1000

 print(f"nprobe={nprobe:>3}: {search_time:.2f}ms, "
 f"searched {nprobe * n_vectors // nlist:,} vectors")

4. Product Quantization (PQ)

Product Quantization compresses vectors by splitting each d-dimensional vector into m sub-vectors, then quantizing each sub-vector independently using a small codebook. A 768-dimensional vector split into 96 sub-vectors of 8 dimensions each, with 256 codes per sub-vector, requires only 96 bytes of storage instead of 3,072 bytes (768 × 4 for float32). This represents a 32x compression ratio. Figure 19.2.5 shows how product quantization compresses vectors by replacing sub-vectors with codebook indices. Code Fragment 19.2.5 below puts this into practice.

How PQ Works

1. Split: Divide each d-dimensional vector into m sub-vectors of d/m dimensions.
2. Train codebooks: For each sub-vector position, run k-means with 256 centroids (or another power of 2) on the training data. This produces m codebooks, each with 256 entries.
3. Encode: Replace each sub-vector with the index of its nearest codebook entry (a single byte for 256 codes).
4. Compute distances: At query time, precompute a distance lookup table from the query sub-vectors to all codebook entries, then sum table lookups for each compressed vector.

# IVF + Product Quantization composite index in FAISS
import faiss
import numpy as np
import time

dim = 768
n_vectors = 1_000_000

np.random.seed(42)
vectors = np.random.randn(n_vectors, dim).astype(np.float32)
faiss.normalize_L2(vectors)

query = np.random.randn(1, dim).astype(np.float32)
faiss.normalize_L2(query)

# IVF-PQ: combines partitioning with compression
nlist = 1024 # Number of IVF partitions
m_subquantizers = 96 # Number of sub-quantizers (must divide dim)
nbits = 8 # Bits per sub-quantizer (256 codes)

index = faiss.IndexIVFPQ(
 faiss.IndexFlatIP(dim), # Coarse quantizer
 dim,
 nlist,
 m_subquantizers,
 nbits
)

# Train and add
print("Training IVF-PQ index...")
index.train(vectors)
index.add(vectors)

# Memory comparison
flat_memory = n_vectors * dim * 4 # float32
pq_memory = n_vectors * m_subquantizers # 1 byte per sub-quantizer
print(f"Flat memory: {flat_memory / 1e9:.2f} GB")
print(f"PQ memory: {pq_memory / 1e6:.0f} MB")
print(f"Compression: {flat_memory / pq_memory:.0f}x")

# Search
index.nprobe = 32
start = time.time()
distances, indices = index.search(query, k=10)
search_time = (time.time() - start) * 1000
print(f"Search time: {search_time:.2f}ms")

5. Composite Indexes and Advanced Techniques

IVF-HNSW

Instead of using a flat (brute-force) coarse quantizer in IVF, the coarse quantizer itself can be an HNSW index. This accelerates the cluster assignment step when there are many clusters (tens of thousands), which is important for very large datasets where you need fine-grained partitioning.

ScaNN (Scalable Nearest Neighbors)

Google's ScaNN algorithm introduces anisotropic vector quantization, which accounts for the direction of quantization error rather than minimizing error magnitude uniformly. Standard PQ minimizes the overall reconstruction error, but ScaNN specifically minimizes the error in the direction that matters for inner product computation. This produces better search quality at the same compression ratio.

6. Index Selection Guide

7. FAISS Index Factory

FAISS provides an index factory that lets you construct composite indexes using a string descriptor. This is the most convenient way to experiment with different configurations. Code Fragment 19.2.6 below puts this into practice.

# FAISS index factory: composing index types with string descriptors
import faiss
import numpy as np

dim = 768
n_vectors = 500_000

vectors = np.random.randn(n_vectors, dim).astype(np.float32)
faiss.normalize_L2(vectors)

# Index factory string format: "preprocessing,coarse_quantizer,encoding"
index_configs = {
 "Flat": "Flat",
 "HNSW32": "HNSW32",
 "IVF1024,Flat": "IVF1024,Flat",
 "IVF1024,PQ96": "IVF1024,PQ96",
 "IVF1024,SQ8": "IVF1024,SQ8", # Scalar quantization (8-bit)
}

for name, factory_str in index_configs.items():
 index = faiss.index_factory(dim, factory_str, faiss.METRIC_INNER_PRODUCT)

 # Train if needed
 if not index.is_trained:
 index.train(vectors[:100_000]) # Train on subset

 index.add(vectors)

 # Estimate memory (rough approximation)
 if "PQ96" in factory_str:
 mem_mb = n_vectors * 96 / 1e6
 elif "SQ8" in factory_str:
 mem_mb = n_vectors * dim / 1e6
 else:
 mem_mb = n_vectors * dim * 4 / 1e6

 print(f"{name:>20}: {n_vectors:,} vectors, ~{mem_mb:.0f} MB")
