Document Loaders, Splitters, and Retrievers

1. Document Loaders

A document loader reads data from a source and returns a list of Document objects. Each Document has two attributes: page_content (the text) and metadata (a dictionary of source information such as file name, page number, or URL). LangChain: Chains, Agents, and Retrieval provides loaders for hundreds of formats and sources. The most commonly used ones cover PDFs, web pages, CSV files, and directories of files.

This example loads documents from three different sources: a PDF file, a web page, and a CSV file.

from langchain_community.document_loaders import (
    PyPDFLoader,
    WebBaseLoader,
    CSVLoader,
    DirectoryLoader
)

# Load a PDF (one Document per page)
pdf_loader = PyPDFLoader("reports/annual_report.pdf")
pdf_docs = pdf_loader.load()
print(f"PDF pages: {len(pdf_docs)}")
print(f"First page metadata: {pdf_docs[0].metadata}")
# {'source': 'reports/annual_report.pdf', 'page': 0}

# Load a web page
web_loader = WebBaseLoader("https://en.wikipedia.org/wiki/Transformer_(deep_learning_architecture)")
web_docs = web_loader.load()
print(f"Web doc length: {len(web_docs[0].page_content)} characters")

# Load a CSV (one Document per row)
csv_loader = CSVLoader("data/products.csv", source_column="product_id")
csv_docs = csv_loader.load()
print(f"CSV rows loaded: {len(csv_docs)}")
print(f"First row: {csv_docs[0].page_content[:100]}")

Every loader returns the same Document type, which means downstream components (splitters, embeddings, vector stores) work identically regardless of the original data source. You can also combine documents from multiple loaders before splitting.

2. Text Splitters

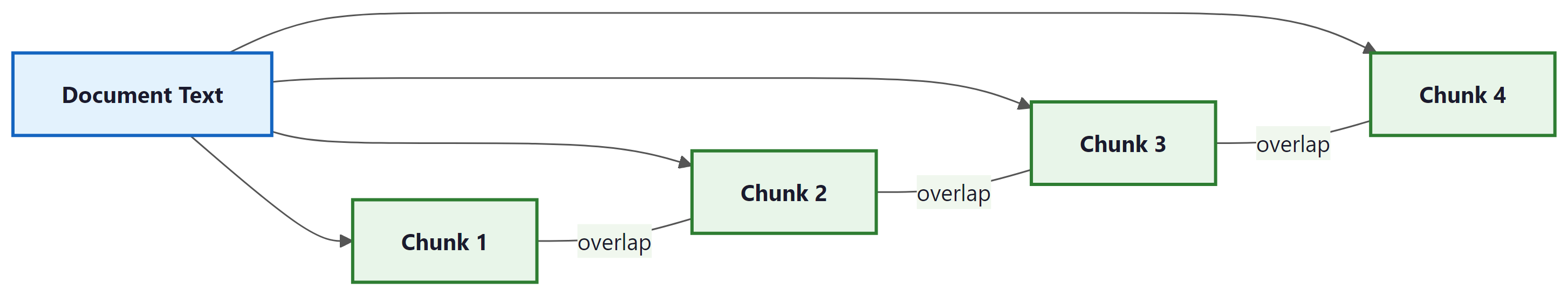

Raw documents are usually too long to embed as single chunks or to fit in a prompt alongside other context. Text splitters break documents into smaller, overlapping pieces. The overlap ensures that information spanning a chunk boundary is not lost. Choosing the right splitter and chunk size significantly affects retrieval quality.

RecursiveCharacterTextSplitter

The most versatile splitter, RecursiveCharacterTextSplitter, tries to split on natural boundaries (paragraphs, then sentences, then words) before falling back to character-level splitting. It accepts a list of separator characters and tries them in order, preferring splits that produce the most semantically coherent chunks.

from langchain_text_splitters import RecursiveCharacterTextSplitter

splitter = RecursiveCharacterTextSplitter(
    chunk_size=500,        # Target chunk size in characters
    chunk_overlap=50,      # Overlap between consecutive chunks
    separators=["\n\n", "\n", ". ", " ", ""],  # Try these in order
    length_function=len
)

# Split a single document
chunks = splitter.split_documents(pdf_docs)
print(f"Original pages: {len(pdf_docs)}, Chunks: {len(chunks)}")
print(f"Chunk 0 length: {len(chunks[0].page_content)} chars")
print(f"Chunk 0 metadata: {chunks[0].metadata}")
# Metadata is preserved from the original document

Choosing Chunk Size

There is no universal "best" chunk size. Smaller chunks (200 to 500 characters) produce more precise retrieval but may lose surrounding context. Larger chunks (1000 to 2000 characters) preserve context but may dilute relevance. A good starting point is 500 to 1000 characters with 10% to 20% overlap. Always evaluate retrieval quality on representative queries when tuning these parameters.

Specialized Splitters

LangChain: Chains, Agents, and Retrieval provides splitters optimized for specific content types. These are more effective than generic character splitting when working with structured or formatted content.

from langchain_text_splitters import (
    Language,
    RecursiveCharacterTextSplitter,
    MarkdownHeaderTextSplitter,
    HTMLHeaderTextSplitter
)

# Split Python code along function and class boundaries
python_splitter = RecursiveCharacterTextSplitter.from_language(
    language=Language.PYTHON,
    chunk_size=1000,
    chunk_overlap=100
)

code = """
class DataProcessor:
    def __init__(self, config):
        self.config = config

    def load_data(self, path):
        with open(path) as f:
            return json.load(f)

    def process(self, data):
        results = []
        for item in data:
            results.append(self.transform(item))
        return results
"""
code_chunks = python_splitter.split_text(code)
print(f"Code chunks: {len(code_chunks)}")

# Split Markdown by headers (preserves document structure)
md_splitter = MarkdownHeaderTextSplitter(
    headers_to_split_on=[
        ("#", "h1"),
        ("##", "h2"),
        ("###", "h3"),
    ]
)
md_text = "# Intro\nSome text.\n## Methods\nMore text.\n### Details\nFine details."
md_chunks = md_splitter.split_text(md_text)
for chunk in md_chunks:
    print(chunk.metadata, chunk.page_content[:50])

3. Vector Store Retrievers

After splitting, chunks are embedded into vectors and stored in a vector database. At query time, the user's question is embedded using the same model, and the vector store returns the chunks whose embeddings are most similar. LangChain: Chains, Agents, and Retrieval wraps this workflow in a retriever interface that any LCEL chain can consume.

This example creates a vector store from document chunks using FAISS (a fast, in-memory similarity search library) and then queries it.

from langchain_openai import OpenAIEmbeddings
from langchain_community.vectorstores import FAISS
from langchain_text_splitters import RecursiveCharacterTextSplitter
from langchain_community.document_loaders import WebBaseLoader

# Load and split
loader = WebBaseLoader("https://python.langchain.com/docs/get_started/introduction")
docs = loader.load()
splitter = RecursiveCharacterTextSplitter(chunk_size=500, chunk_overlap=50)
chunks = splitter.split_documents(docs)

# Embed and store
embeddings = OpenAIEmbeddings(model="text-embedding-3-small")
vectorstore = FAISS.from_documents(chunks, embeddings)

# Convert to a retriever (returns top-k documents)
retriever = vectorstore.as_retriever(
    search_type="similarity",
    search_kwargs={"k": 4}
)

# Query the retriever
results = retriever.invoke("What is LangChain: Chains, Agents, and Retrieval?")
for doc in results:
    print(doc.page_content[:100], "...")
    print(f"  Source: {doc.metadata.get('source', 'unknown')}\n")

4. Ensemble Retrievers

A single retrieval method may miss relevant documents. EnsembleRetriever combines results from multiple retrievers using reciprocal rank fusion (RRF). A common pattern is to combine a dense vector retriever (good at semantic similarity) with a sparse BM25 retriever (good at keyword matching).

from langchain.retrievers import EnsembleRetriever
from langchain_community.retrievers import BM25Retriever

# Dense retriever (from vectorstore, as above)
dense_retriever = vectorstore.as_retriever(search_kwargs={"k": 4})

# Sparse retriever (BM25 keyword matching)
bm25_retriever = BM25Retriever.from_documents(chunks)
bm25_retriever.k = 4

# Combine with equal weights
ensemble = EnsembleRetriever(
    retrievers=[dense_retriever, bm25_retriever],
    weights=[0.5, 0.5]
)

results = ensemble.invoke("How do I install LangChain: Chains, Agents, and Retrieval?")
for doc in results:
    print(doc.page_content[:80])

5. Contextual Compression

Retrieved chunks often contain irrelevant text alongside the useful passages. Contextual compression uses an LLM (or a smaller model) to extract only the relevant portions of each retrieved document before passing them to the final generation step. This reduces noise in the prompt and improves answer quality.

The following example wraps a retriever with a compressor that extracts only the relevant sentences from each chunk.

from langchain.retrievers import ContextualCompressionRetriever
from langchain.retrievers.document_compressors import LLMChainExtractor
from langchain_openai import ChatOpenAI

compressor_llm = ChatOpenAI(model="gpt-4o-mini", temperature=0)
compressor = LLMChainExtractor.from_llm(compressor_llm)

compressed_retriever = ContextualCompressionRetriever(
    base_compressor=compressor,
    base_retriever=retriever  # The FAISS retriever from earlier
)

results = compressed_retriever.invoke("What are LangChain: Chains, Agents, and Retrieval's core components?")
for doc in results:
    # Each document now contains only the relevant extracted text
    print(doc.page_content)
    print("---")

6. Putting It All Together: A Complete RAG Chain

The following example assembles a full RAG pipeline using LCEL: load documents, split them, store embeddings, retrieve relevant chunks, and generate an answer.

from langchain_openai import ChatOpenAI, OpenAIEmbeddings
from langchain_core.prompts import ChatPromptTemplate
from langchain_core.output_parsers import StrOutputParser
from langchain_core.runnables import RunnablePassthrough
from langchain_community.vectorstores import FAISS
from langchain_text_splitters import RecursiveCharacterTextSplitter
from langchain_community.document_loaders import PyPDFLoader

# 1. Load and split
docs = PyPDFLoader("handbook.pdf").load()
chunks = RecursiveCharacterTextSplitter(
    chunk_size=800, chunk_overlap=100
).split_documents(docs)

# 2. Embed and store
vectorstore = FAISS.from_documents(chunks, OpenAIEmbeddings())
retriever = vectorstore.as_retriever(search_kwargs={"k": 5})

# 3. Define the RAG prompt
rag_prompt = ChatPromptTemplate.from_template("""
Answer the question based only on the following context.
If the context does not contain enough information, say so.

Context:
{context}

Question: {question}

Answer:""")

# 4. Helper to format retrieved documents
def format_docs(docs):
    return "\n\n".join(doc.page_content for doc in docs)

# 5. Assemble the LCEL chain
rag_chain = (
    {"context": retriever | format_docs, "question": RunnablePassthrough()}
    | rag_prompt
    | ChatOpenAI(model="gpt-4o", temperature=0)
    | StrOutputParser()
)

# 6. Query
answer = rag_chain.invoke("What is the company's vacation policy?")
print(answer)
