Soft Prompts: Prompt Tuning, Prefix Tuning, and P-Tuning

"A well-placed soft prompt does not change what the model knows. It changes what the model is trying to do."

LoRA, Softly Persuasive AI Agent

1. The Soft Prompt Family: A Taxonomy

A soft prompt is a set of learnable continuous vectors that are concatenated with the model's input representations and updated through gradient descent. Unlike the discrete tokens used in Chapter 11's prompt engineering, soft prompts exist only as floating-point tensors: they have no natural language interpretation, cannot be read by a human, and are discovered entirely by the optimizer.

The key architectural question that distinguishes each method is where the learned vectors are inserted:

• Input layer only (Prompt Tuning): prepend vectors to the token embeddings before the first transformer block.
• All attention layers (Prefix Tuning, P-Tuning v2): prepend learned key-value pairs to every layer's attention, giving the model access to task-specific context at every depth.
• Specific positions via encoder (P-Tuning v1): use a small LSTM or MLP to generate embeddings that are inserted at chosen positions in the input sequence.

A useful mental model: think of a soft prompt as a context-setting preamble that only the model's internals can read. You are teaching the model to adopt a "mode" for a given task without rewriting any of its core knowledge.

2. Prompt Tuning (Lester et al., 2021)

Prompt Tuning, introduced by Lester, Al-Rfou, and Constant at Google (2021), is the simplest member of the soft-prompt family. It prepends a small set of learnable vectors (the "soft prompt") to the token embeddings at the very first layer of the transformer. All other weights remain frozen. During forward and backward passes, only these prefix vectors accumulate gradients.

The parameter count is striking: for a prompt of 100 tokens on a model with a 4096-dimensional embedding, you are training 100 x 4096 = 409,600 parameters. For a 7B-parameter model, that is roughly 0.006% of model parameters. Storage and swapping costs are negligible.

The main finding of the original paper was that Prompt Tuning performance scales with model size. On small models (100M parameters), it significantly underperforms full fine-tuning. As models approach 10B parameters, Prompt Tuning closes the gap almost entirely. For practitioners using frontier-scale models, it can match fine-tuning performance at a fraction of the cost.

The following code (Code Fragment 15.4.1) shows how to set up Prompt Tuning with the HuggingFace PEFT library.

# Code Fragment 15.4.1: Prompt Tuning with HuggingFace PEFT
# Adds learnable tokens only at the input embedding layer
from transformers import AutoModelForCausalLM, AutoTokenizer
from peft import PromptTuningConfig, PromptTuningInit, get_peft_model, TaskType

MODEL_NAME = "meta-llama/Llama-3.2-1B"

tokenizer = AutoTokenizer.from_pretrained(MODEL_NAME)
model = AutoModelForCausalLM.from_pretrained(MODEL_NAME, torch_dtype="auto")

# Configure Prompt Tuning
# num_virtual_tokens: length of the soft prompt (10-100 is typical)
# prompt_tuning_init: TEXT initializes from a real string; RANDOM is also valid
peft_config = PromptTuningConfig(
 task_type=TaskType.CAUSAL_LM,
 prompt_tuning_init=PromptTuningInit.TEXT,
 prompt_tuning_init_text="Classify the sentiment of the following text:",
 num_virtual_tokens=20,
 tokenizer_name_or_path=MODEL_NAME,
)

# Wrap model: only the prompt embeddings are trainable
model = get_peft_model(model, peft_config)
model.print_trainable_parameters()
# Typical output: trainable params: 81,920 || all params: 1,235,814,400
# || trainable%: 0.0066

# Standard training loop (SFTTrainer or custom loop works unchanged)
# The PEFT wrapper transparently prepends the soft prompt during forward passes
from trl import SFTTrainer
from transformers import TrainingArguments
from datasets import load_dataset

dataset = load_dataset("imdb", split="train[:2000]")

training_args = TrainingArguments(
 output_dir="./prompt-tuning-output",
 num_train_epochs=3,
 per_device_train_batch_size=8,
 learning_rate=3e-2, # Higher LR than LoRA; soft prompts need it
 warmup_steps=100,
 logging_steps=50,
 save_strategy="epoch",
 fp16=True,
)

trainer = SFTTrainer(
 model=model,
 args=training_args,
 train_dataset=dataset,
 dataset_text_field="text",
 max_seq_length=512,
)
trainer.train()

# Saving: only the soft prompt vectors are stored (~320 KB for 20 tokens)
model.save_pretrained("./my-prompt-tuning-adapter")

When to use Prompt Tuning: very large models (10B+), scenarios where you need dozens of task-specific adapters sharing one base model, and simple classification or generation tasks where the additional expressiveness of deeper methods is not required.

3. Prefix Tuning (Li & Liang, 2021)

Prefix Tuning, from Li and Liang at Stanford (2021), takes a more aggressive approach: it prepends learnable key-value pairs to every transformer layer's attention mechanism, not just the input. Each layer gets its own set of prefix tokens that directly modulate what the attention mechanism attends to at that depth.

The practical consequence: Prefix Tuning is far more expressive than Prompt Tuning. Because prefixes influence attention at every layer, the model can steer mid-level representations and not just the initial input conditioning. This makes a material difference on generation-heavy tasks such as table-to-text and summarization, where the output structure is complex and sequential.

A key implementation detail is reparameterization. Directly optimizing prefix parameters can be unstable. During training, the prefix vectors are generated by a small MLP applied to a lower-dimensional latent space. This MLP introduces smoother gradients and prevents collapse or divergence. At inference time, the MLP is discarded; only the final prefix key-value tensors are stored and used.

Parameter count sits roughly between 0.1% and 1% of model parameters, depending on prefix length and model depth. This is roughly 10-100x more than Prompt Tuning, but still far below LoRA.

# Code Fragment 15.4.2: Prefix Tuning with HuggingFace PEFT
# Injects learned KV pairs at every attention layer
from transformers import AutoModelForSeq2SeqLM, AutoTokenizer
from peft import PrefixTuningConfig, get_peft_model, TaskType

MODEL_NAME = "google/flan-t5-large" # Encoder-decoder well-suited to prefix tuning

tokenizer = AutoTokenizer.from_pretrained(MODEL_NAME)
model = AutoModelForSeq2SeqLM.from_pretrained(MODEL_NAME)

# PrefixTuningConfig with reparameterization enabled by default
peft_config = PrefixTuningConfig(
 task_type=TaskType.SEQ_2_SEQ_LM,
 num_virtual_tokens=30, # Prefix length per layer
 encoder_hidden_size=512, # Dimension of the reparameterization MLP
 # prefix_projection=True by default: uses MLP during training,
 # discards it at inference and uses the final projected vectors
)

model = get_peft_model(model, peft_config)
model.print_trainable_parameters()
# trainable params: 1,835,008 || all params: 783,150,080
# || trainable%: 0.2343 (about 0.23%)

# At inference, the MLP is transparent: model.forward() uses cached prefix KVs
# This means zero extra latency from the reparameterization MLP after training
print("Prefix Tuning config:", peft_config)
# PrefixTuningConfig(num_virtual_tokens=30, encoder_hidden_size=512, ...)

When to use Prefix Tuning: generation tasks requiring structural control (summarization, data-to-text, dialogue response generation), encoder-decoder architectures, and situations where Prompt Tuning underperforms due to small model size.

4. P-Tuning v1 (Liu et al., 2021)

P-Tuning (v1), from Liu et al. at Tsinghua University and MIT (2021), targets a different problem: can autoregressive models like GPT compete with BERT on natural language understanding (NLU) tasks, given the right prompting strategy?

The paper's core insight was that the GPT-NLU performance gap was not an architectural limitation but a prompting problem. Hard prompts for NLU tasks like "The capital of France is [MASK]" require the learnable tokens to appear at specific non-prefix positions in the input. But naively placing random embeddings in the middle of a sequence leads to poor optimization: nearby token embeddings interfere with gradient flow, and the learned vectors collapse to degenerate solutions.

P-Tuning v1 solves this by routing the learnable prompt tokens through a small prompt encoder: an LSTM (or MLP) that takes positional indices as input and produces contextualized embeddings. The LSTM's sequential structure provides smooth gradient signal and prevents the collapse problem.

The resulting approach allows learnable tokens to appear anywhere in the input template, not just as a prefix. A P-Tuning template for a knowledge-probing task might look like: [P1][P2] The capital of [P3][P4] is, where P1-P4 are learned vectors generated by the LSTM encoder.

# Code Fragment 15.4.3: P-Tuning v1 concept with HuggingFace PEFT
# Note: HuggingFace PEFT implements P-Tuning v1 as PromptEncoderConfig
from transformers import AutoModelForCausalLM, AutoTokenizer
from peft import PromptEncoderConfig, PromptEncoderReparameterizationType, get_peft_model, TaskType

MODEL_NAME = "gpt2-medium"

tokenizer = AutoTokenizer.from_pretrained(MODEL_NAME)
tokenizer.pad_token = tokenizer.eos_token
model = AutoModelForCausalLM.from_pretrained(MODEL_NAME)

# PromptEncoderConfig maps to P-Tuning v1:
# encoder_reparameterization_type selects LSTM or MLP
peft_config = PromptEncoderConfig(
 task_type=TaskType.CAUSAL_LM,
 num_virtual_tokens=20,
 encoder_reparameterization_type=PromptEncoderReparameterizationType.LSTM,
 encoder_hidden_size=128, # LSTM hidden dimension
 encoder_num_layers=2, # Number of LSTM layers
 encoder_dropout=0.0,
)

model = get_peft_model(model, peft_config)
model.print_trainable_parameters()
# trainable params: 307,340 || all params: 354,841,948
# Includes both the virtual token embeddings AND the LSTM encoder parameters

# The LSTM encoder is used during both forward and backward passes.
# At inference, the LSTM is still present (unlike Prefix Tuning's MLP,
# which is discarded). However, you can cache the encoder outputs once
# and reuse them for all inference calls on a given task.

# Example: manual encode to show the two-stage process
import torch
prompt_encoder = model.prompt_encoder["default"]
# Step 1: LSTM generates contextualized prompt embeddings from learned input embeddings
# Step 2: these embeddings are prepended to the token embeddings in model.forward()

The results from Liu et al. were striking at the time: GPT-style models, previously thought to be weak at NLU tasks without task-specific heads, matched or exceeded BERT on SuperGLUE benchmarks when guided by P-Tuning prompts. The conclusion: the bottleneck was prompt design, not model capability.

5. P-Tuning v2 (Liu et al., 2022)

P-Tuning v2, also from Liu et al. (2022), represents a convergence of ideas: it adopts the deep, layer-wise prefix injection strategy from Prefix Tuning but applies it to NLU tasks with a classification head, and demonstrates strong performance even at small model scales (as small as 300M parameters).

The key architectural features of P-Tuning v2 are:

• Deep prompting: prefix tokens are added to every transformer layer, not just the input, giving the same depth advantage as Prefix Tuning.
• Classification head: instead of treating everything as a language modeling task, P-Tuning v2 adds a task-specific linear head on top of the final hidden state, making it directly applicable to token-level tasks like NER and POS tagging.
• No reparameterization MLP: unlike Prefix Tuning, P-Tuning v2 optimizes prefix parameters directly (with careful learning rate selection), which the authors found to be stable for NLU tasks.
• Verbalizer-free: earlier soft-prompt approaches for NLU required mapping model outputs to class labels via "verbalizers" (mapping "positive" to class 1, etc.). P-Tuning v2 bypasses this with a direct classification head.

# Code Fragment 15.4.4: P-Tuning v2 for sequence classification with PEFT
# Uses deep prefix tuning (all layers) with a classification head
from transformers import AutoModelForSequenceClassification, AutoTokenizer
from peft import PrefixTuningConfig, get_peft_model, TaskType
import torch

MODEL_NAME = "bert-base-uncased" # Works on encoder models too

tokenizer = AutoTokenizer.from_pretrained(MODEL_NAME)
# P-Tuning v2 for classification: use SEQ_CLS task type
# This adds a linear classification head on top of the frozen model
model = AutoModelForSequenceClassification.from_pretrained(
 MODEL_NAME,
 num_labels=2 # Binary classification
)

# P-Tuning v2 is PrefixTuningConfig with prefix_projection=False
# (direct optimization, no reparameterization MLP)
peft_config = PrefixTuningConfig(
 task_type=TaskType.SEQ_CLS,
 num_virtual_tokens=16,
 prefix_projection=False, # Direct prefix optimization (P-Tuning v2 style)
)

model = get_peft_model(model, peft_config)
model.print_trainable_parameters()
# trainable params: 197,634 || all params: 109,682,178
# || trainable%: 0.1801

# Training with a standard classification objective
from transformers import TrainingArguments, Trainer
from datasets import load_dataset
import numpy as np

dataset = load_dataset("glue", "sst2")

def tokenize(batch):
 return tokenizer(batch["sentence"], truncation=True, max_length=128, padding="max_length")

tokenized = dataset.map(tokenize, batched=True)
tokenized = tokenized.rename_column("label", "labels")
tokenized.set_format("torch", columns=["input_ids", "attention_mask", "labels"])

def compute_metrics(eval_pred):
 logits, labels = eval_pred
 predictions = np.argmax(logits, axis=-1)
 return {"accuracy": (predictions == labels).mean()}

training_args = TrainingArguments(
 output_dir="./p-tuning-v2-sst2",
 num_train_epochs=5,
 per_device_train_batch_size=32,
 per_device_eval_batch_size=64,
 learning_rate=5e-3, # Higher than full fine-tuning; prefix params need it
 warmup_ratio=0.1,
 evaluation_strategy="epoch",
 save_strategy="best",
 load_best_model_at_end=True,
 metric_for_best_model="accuracy",
)

trainer = Trainer(
 model=model,
 args=training_args,
 train_dataset=tokenized["train"],
 eval_dataset=tokenized["validation"],
 compute_metrics=compute_metrics,
)
trainer.train()

6. Comprehensive Comparison

The table below summarizes the key characteristics of each soft prompt method and places them alongside LoRA and QLoRA from Section 15.1 for context.

For practitioners making a practical choice, the following decision guide covers the most common scenarios:

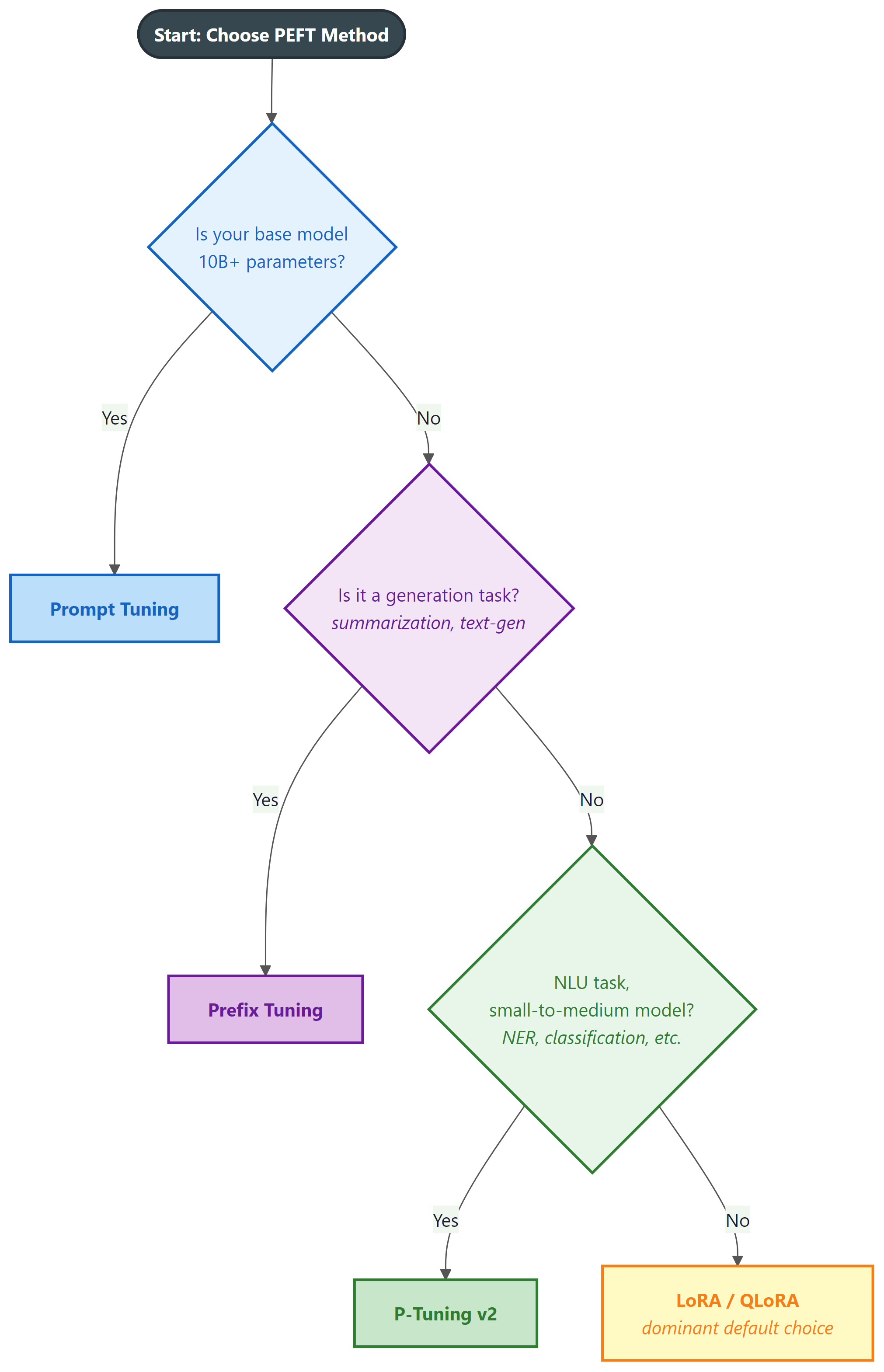

Figure 15.4.2: Decision guide for choosing among soft prompt methods and LoRA. Most practitioners should default to LoRA unless they have a specific reason to use a soft prompt approach.

7. Practical Considerations and Limitations

Soft prompt methods have unique practical characteristics that differ from weight-based methods like LoRA. Understanding these helps you avoid common pitfalls.

Training Dynamics

Soft prompts are notoriously sensitive to learning rate. They typically need much higher learning rates (1e-2 to 1e-1) than LoRA (1e-4 to 1e-3), because the prompt parameters must "move far" in embedding space relative to where they are initialized. Using a learning rate that works for LoRA will leave soft prompts nearly unchanged. Conversely, too-high a learning rate causes oscillation and poor convergence. A linear warmup of at least 100-200 steps is strongly recommended.

Multi-Task Serving

One of the most compelling use cases for soft prompts is multi-task serving with a single frozen base model. Each task gets its own soft prompt (a few hundred kilobytes at most), and switching tasks at inference time is a matter of swapping the prepended vectors. This pattern is far cheaper to operate than maintaining separate LoRA adapters when the number of tasks is very large (hundreds or thousands), since the per-task storage is negligible and the base model is never copied.

# Code Fragment 15.4.5: Multi-task soft prompt serving pattern
# One base model, many task-specific soft prompts loaded on demand
from transformers import AutoModelForCausalLM, AutoTokenizer
from peft import PeftModel
import torch

BASE_MODEL = "meta-llama/Llama-3.2-3B"

tokenizer = AutoTokenizer.from_pretrained(BASE_MODEL)
base_model = AutoModelForCausalLM.from_pretrained(
 BASE_MODEL, torch_dtype=torch.float16, device_map="auto"
)

# Load multiple soft prompt adapters (each is ~200-500 KB)
task_adapters = {
 "sentiment": "./soft-prompts/sentiment-adapter",
 "summarization": "./soft-prompts/summary-adapter",
 "ner": "./soft-prompts/ner-adapter",
}

def run_task(task_name: str, text: str) -> str:
 """Load the appropriate soft prompt and run inference."""
 adapter_path = task_adapters[task_name]
 # PeftModel.from_pretrained loads the prompt vectors and
 # wraps the base model to prepend them during forward passes
 model = PeftModel.from_pretrained(base_model, adapter_path)
 model.eval()

 inputs = tokenizer(text, return_tensors="pt").to(model.device)
 with torch.no_grad():
 outputs = model.generate(**inputs, max_new_tokens=64)
 return tokenizer.decode(outputs[0], skip_special_tokens=True)

# Switch tasks with no base model reload
result_a = run_task("sentiment", "The product exceeded all my expectations.")
result_b = run_task("summarization", "Long article text goes here...")

Composability with LoRA

Soft prompts can be combined with LoRA adapters. A model can have both a LoRA adapter (modifying weight matrices) and a prefix tuning adapter (injecting prefix KVs) active simultaneously. This is supported by the PEFT library's multi-adapter mechanism. The use case is niche but real: use LoRA for domain adaptation and a soft prompt for task steering on top.

Limitations

• Small-model performance: Prompt Tuning degrades significantly on models below 1B parameters. If you are working with smaller models, LoRA is reliably better. P-Tuning v2 mitigates this somewhat but does not fully close the gap.
• Interpretability: unlike LoRA's weight deltas (which can be analyzed and sometimes interpreted), soft prompt vectors have no linguistic meaning. Debugging a misbehaving soft prompt is difficult: you cannot read the prompt or introspect what it "says."
• Sensitivity to input format: because soft prompts steer the model through the input context, they are sensitive to tokenization and input formatting changes. A prompt trained on one tokenizer version may degrade on another.
• Industry adoption: in production, LoRA and QLoRA have become the dominant choice for most fine-tuning tasks. Soft prompts are used in specific scenarios (very large models, extreme multi-task serving) but are not the default. If you are new to PEFT, start with LoRA from Section 15.1.
