Research Methodology for LLM Papers

"An experiment you cannot reproduce is an anecdote you cannot trust."

Eval, Reproducibly Paranoid AI Agent

1. Experiment Design for LLM Research

LLM experiments differ from classical machine learning experiments in several important ways. Models are expensive to run, outputs are stochastic even at low temperatures, API-based models change without notice, and the combinatorial space of prompts and hyperparameters is vast. Designing experiments that yield trustworthy conclusions under these constraints requires careful attention to randomness control, statistical power, and ablation structure.

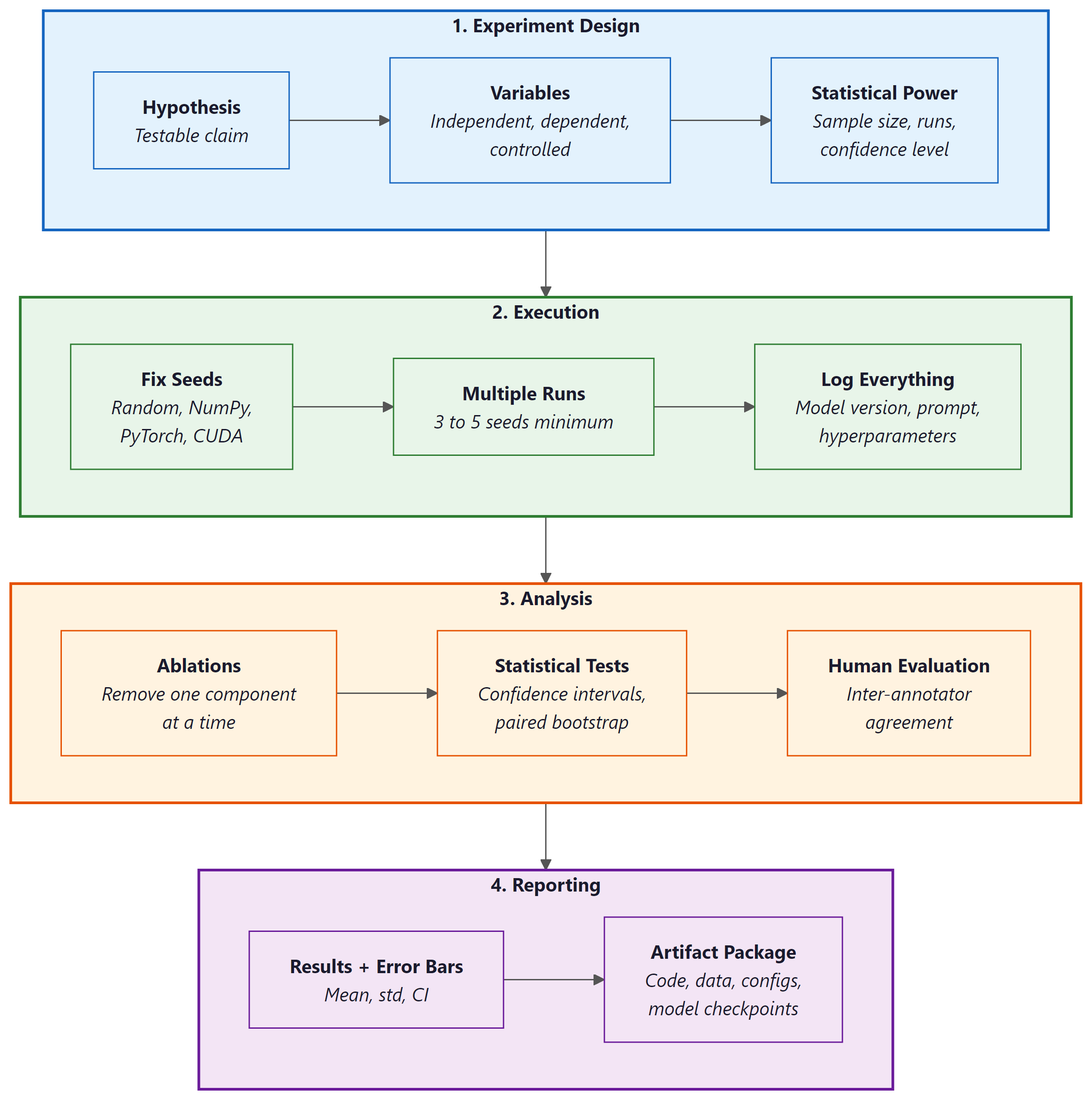

Figure 29.13.1: The four phases of rigorous LLM experiment methodology. Each phase builds on the previous: a well-designed experiment enables reproducible execution, which produces data suitable for proper statistical analysis, which yields trustworthy results with complete artifact packages.

1.1 Controlling for Randomness

Stochasticity in LLM experiments arises from multiple sources: sampling temperature, dropout during training, data shuffling, and even nondeterministic GPU operations. Controlling these sources is the first step toward reproducible results. Code Fragment 29.13.2 demonstrates how to set reproducible seeds across the major frameworks.

# Code Fragment 29.13.2: Setting reproducible seeds for LLM experiments
import os
import random
import numpy as np
import torch

def set_global_seed(seed: int = 42) -> None:
 """Set seeds across all sources of randomness for reproducibility."""
 random.seed(seed)
 np.random.seed(seed)
 torch.manual_seed(seed)
 torch.cuda.manual_seed_all(seed)
 os.environ["PYTHONHASHSEED"] = str(seed)

 # For maximum determinism on CUDA (may reduce performance)
 torch.backends.cudnn.deterministic = True
 torch.backends.cudnn.benchmark = False

set_global_seed(42)

# For API-based models, control randomness via generation parameters
def deterministic_api_call(client, prompt: str, model: str) -> str:
 """Make a reproducible API call by fixing temperature and seed."""
 response = client.chat.completions.create(
 model=model,
 messages=[{"role": "user", "content": prompt}],
 temperature=0.0, # Greedy decoding
 seed=42, # Server-side seed (OpenAI-specific)
 top_p=1.0, # No nucleus sampling
 max_tokens=512,
 )
 # Log the system_fingerprint for version tracking
 print(f"System fingerprint: {response.system_fingerprint}")
 return response.choices[0].message.content

# Run multiple trials even with temperature=0.0
# API models may still vary across calls due to infrastructure changes
def multi_trial_evaluation(
 client, prompts: list[str], model: str, n_trials: int = 5
) -> dict:
 """Run multiple trials and report variance."""
 from collections import defaultdict
 results = defaultdict(list)

 for trial in range(n_trials):
 for i, prompt in enumerate(prompts):
 output = deterministic_api_call(client, prompt, model)
 results[i].append(output)

 # Check consistency across trials
 consistency = {}
 for idx, outputs in results.items():
 unique_outputs = len(set(outputs))
 consistency[idx] = {
 "consistent": unique_outputs == 1,
 "unique_outputs": unique_outputs,
 "n_trials": n_trials,
 }
 return consistency

1.2 Statistical Significance with Expensive Models

Classical statistical testing assumes cheap evaluation: you can run thousands of bootstrap samples or cross-validation folds at minimal cost. LLM evaluation inverts this assumption. A single evaluation run on GPT-4 across 1,000 examples might cost $50 or more, and training runs can cost thousands of dollars. This cost constraint demands sample-efficient experimental designs.

Paired comparisons are essential. Rather than comparing aggregate scores between two systems, compare their performance on the same examples. The paired bootstrap test and the permutation test are well suited to this setting because they operate on per-example score differences and do not assume normality. When budget is limited, prioritize paired designs over independent evaluations, and use stratified sampling to ensure coverage of important subgroups (e.g., question difficulty, domain, or output length).

1.3 Ablation Study Design

An ablation study systematically removes or modifies components of a system to measure each component's contribution. In LLM research, ablations typically target: (1) prompt components (system instructions, few-shot examples, chain-of-thought formatting), (2) retrieval components (in RAG systems), (3) hyperparameters (temperature, top-p, max tokens), and (4) data (training data subsets, few-shot example selection strategies). A well-designed ablation holds all variables constant except the one under study. Section 4 covers ablation methodology in depth.

2. Reproducibility Challenges

Reproducibility in LLM research faces challenges that do not exist in traditional machine learning. API models change silently, hardware differences produce different floating-point results, and training data contamination can inflate benchmark scores. Understanding these challenges is essential for both producers and consumers of LLM research.

2.1 Version Drift in API Models

When a paper reports results using "GPT-4," that label is ambiguous. The model behind the GPT-4 API endpoint changes over time as the provider updates weights, modifies safety filters, or adjusts infrastructure. Results obtained in January may not be reproducible in June, even with identical prompts and parameters. To mitigate this problem: (1) record the specific model version or snapshot identifier (e.g., gpt-4-0613 rather than gpt-4), (2) log the system fingerprint returned by the API, (3) run evaluations within a narrow time window, and (4) archive raw model outputs alongside scores.

2.2 Hardware-Dependent Results

For locally hosted models, floating-point arithmetic varies across GPU architectures, driver versions, and even batch sizes. A model evaluated on an A100 may produce slightly different logits than the same model on an H100, leading to different greedy-decoded outputs for borderline cases. These differences are typically small (affecting 1 to 3 percent of examples), but they can shift aggregate metrics enough to change the ranking of systems. Report the exact hardware configuration, CUDA version, and library versions used for all experiments.

2.3 Dataset Contamination Detection

Benchmark contamination occurs when test examples (or close paraphrases) appear in a model's training data. This is one of the most serious threats to the validity of LLM evaluation results. Detection methods include: (1) n-gram overlap analysis between training data and benchmark examples, (2) membership inference attacks that test whether the model has memorized specific examples, (3) canary string insertion during benchmark construction, and (4) performance comparison between original and rephrased versions of benchmark questions. If performance drops significantly on rephrased versions, contamination is likely.

3. Evaluation Protocol Design

An evaluation protocol specifies every decision required to go from a research question to a set of reported numbers. A well-designed protocol eliminates researcher degrees of freedom and ensures that results are interpretable and comparable. The three core decisions are: choosing baselines, selecting or constructing benchmarks, and defining data splits.

3.1 Choosing Baselines

Every evaluation needs baselines that anchor the results. Good baselines serve three purposes: they establish a lower bound (what a trivial system achieves), they represent the state of the art (what the best existing system achieves), and they isolate the contribution of your method (what happens without your specific innovation). At minimum, include: (1) a random or majority-class baseline, (2) a simple heuristic baseline, (3) the strongest published result on the same benchmark, and (4) an ablated version of your own system that removes the key proposed component.

3.2 Benchmark Selection vs. Construction

Using existing benchmarks enables comparison with prior work but carries risks: contamination, saturation (when top models all score above 95%), and misalignment between the benchmark's task distribution and your target application. Constructing a new benchmark avoids contamination and ensures task relevance, but requires substantial effort in annotation, quality control, and documentation. A common compromise is to use established benchmarks for comparability while also reporting results on a custom held-out evaluation set that is specific to your application domain.

3.3 Held-Out vs. In-Distribution Splits

The split between development and test data determines what your evaluation actually measures. An in-distribution split (random partitioning of examples) measures interpolation ability. A held-out split along a meaningful axis (unseen domains, unseen question types, temporal splits) measures generalization. For LLM research, temporal splits are particularly important: examples from before the model's training cutoff date may be memorized, while examples from after the cutoff test genuine reasoning. Always report which split strategy you used and why.

4. Ablation Studies

Ablation studies are the backbone of empirical evidence in system-building papers. A reader who sees only a final system score cannot judge which components matter. Ablation studies decompose the system's performance into individual contributions, revealing which design decisions are essential and which are incidental.

4.1 What to Ablate

In LLM-based systems, four categories of components are candidates for ablation. Architectural components: retrieval modules, rerankers, chain-of-thought prompting, tool use. Hyperparameters: temperature, top-p, number of few-shot examples, chunk size in RAG. Data choices: training data subsets, few-shot example selection strategies, document corpora. Prompt elements: system instructions, output format specifications, persona definitions. Each ablation should modify exactly one variable while holding everything else constant.

4.2 Reporting Marginal Contributions

Present ablation results as a table where each row removes one component from the full system. Report the absolute performance of each ablated variant and the delta from the full system. Include confidence intervals for every number. A common mistake is to present ablation results without error bars; this makes it impossible to determine whether the observed differences are statistically meaningful or within the noise margin. The table should be ordered by the magnitude of the contribution, making it immediately clear which components matter most.

4.3 Interaction Effects

Components in an LLM system can interact: chain-of-thought prompting may only help when combined with a specific system instruction, or retrieval may only improve performance above a certain context length threshold. Testing all pairwise interactions is expensive (quadratic in the number of components), so prioritize interactions where you have a theoretical reason to expect a dependency. Report any significant interactions discovered, as they reveal important design constraints that others building on your work should understand.

5. Human Evaluation Methodology

Automatic metrics capture only a fraction of what matters in language generation. Human evaluation remains the gold standard for assessing fluency, coherence, factual accuracy, helpfulness, and safety. However, poorly designed human evaluation can be worse than no evaluation at all, producing numbers that are unreliable, unreproducible, and misleading.

5.1 Inter-Annotator Agreement

Before trusting human evaluation scores, you must establish that different annotators agree on their judgments. Two standard metrics are Cohen's kappa (for two annotators) and Krippendorff's alpha (for any number of annotators and rating scales). Cohen's kappa corrects for chance agreement; values below 0.4 indicate poor agreement, 0.4 to 0.6 indicates moderate agreement, and above 0.8 indicates strong agreement. Code Fragment 29.13.5 demonstrates how to compute both metrics.

# Code Fragment 29.13.5: Inter-annotator agreement calculation
import numpy as np
from sklearn.metrics import cohen_kappa_score
import krippendorff # pip install krippendorff

def compute_agreement_metrics(annotations: dict[str, list[int]]) -> dict:
 """
 Compute inter-annotator agreement metrics.

 Args:
 annotations: dict mapping annotator_id to list of ratings.
 Each list has one rating per example; use np.nan for missing.

 Returns:
 Dictionary with agreement statistics.
 """
 annotator_ids = list(annotations.keys())
 rating_matrix = np.array([annotations[aid] for aid in annotator_ids])

 results = {}

 # Pairwise Cohen's kappa (for each pair of annotators)
 kappa_scores = []
 for i in range(len(annotator_ids)):
 for j in range(i + 1, len(annotator_ids)):
 # Filter to examples where both annotators provided ratings
 mask = ~(np.isnan(rating_matrix[i]) | np.isnan(rating_matrix[j]))
 if mask.sum() > 0:
 kappa = cohen_kappa_score(
 rating_matrix[i][mask].astype(int),
 rating_matrix[j][mask].astype(int),
 )
 kappa_scores.append({
 "pair": (annotator_ids[i], annotator_ids[j]),
 "kappa": round(kappa, 3),
 "n_shared": int(mask.sum()),
 })
 results["pairwise_kappa"] = kappa_scores
 results["mean_kappa"] = round(
 np.mean([k["kappa"] for k in kappa_scores]), 3
 )

 # Krippendorff's alpha (all annotators simultaneously)
 # Handles missing data and works with ordinal or nominal scales
 alpha = krippendorff.alpha(
 reliability_data=rating_matrix,
 level_of_measurement="ordinal",
 )
 results["krippendorff_alpha"] = round(alpha, 3)

 # Interpretation guide
 if alpha >= 0.8:
 results["interpretation"] = "Strong agreement; results are reliable."
 elif alpha >= 0.667:
 results["interpretation"] = "Moderate agreement; tentative conclusions only."
 else:
 results["interpretation"] = (
 "Low agreement; revise annotation guidelines before proceeding."
 )

 return results

# Example usage with three annotators rating 10 examples on a 1-5 scale
annotations = {
 "annotator_A": [4, 3, 5, 2, 4, 3, 5, 1, 4, 3],
 "annotator_B": [4, 2, 5, 3, 4, 3, 4, 1, 3, 3],
 "annotator_C": [5, 3, 5, 2, 3, 3, 5, 2, 4, 4],
}

agreement = compute_agreement_metrics(annotations)
print(f"Mean Cohen's kappa: {agreement['mean_kappa']}")
print(f"Krippendorff's alpha: {agreement['krippendorff_alpha']}")
print(f"Interpretation: {agreement['interpretation']}")

5.2 Annotation Guidelines Design

The quality of human evaluation depends entirely on the clarity of the annotation guidelines. Effective guidelines include: (1) a precise definition of each rating criterion with examples of each score level, (2) boundary cases that distinguish adjacent score levels (e.g., what makes a response a 3 rather than a 4), (3) instructions for handling edge cases (e.g., a response that is factually correct but unhelpful), and (4) a calibration exercise where annotators rate the same set of examples and discuss disagreements before the main annotation begins. Publish your full annotation guidelines as supplementary material so that others can replicate your human evaluation.

5.3 Crowdsourcing Quality Control

When using crowdsourcing platforms for annotation, quality control mechanisms are essential. Standard techniques include: (1) gold-standard questions with known answers to filter inattentive workers, (2) redundant annotation (at least 3 annotators per example) with majority voting or adjudication, (3) qualification tests that screen workers before they access the main task, (4) time-based filtering to remove workers who complete tasks implausibly fast, and (5) periodic requalification to detect quality degradation over time. Report the number of workers, their qualification criteria, pay rate, acceptance rate, and the aggregation method used.

6. Artifacts and Reproducibility Packages

A published result is only as reproducible as the artifacts that accompany it. The LLM research community has converged on several standard artifact types: model cards, datasheets, code release checklists, and containerized experiment specifications. Providing these artifacts is increasingly required by top venues and is always good scientific practice.

6.1 Model Cards and Datasheets

A model card (Mitchell et al., 2019) documents a model's intended use, training data, evaluation results, limitations, and ethical considerations. A datasheet (Gebru et al., 2021) provides analogous documentation for datasets. Both serve as structured disclosure mechanisms that help downstream users understand what a model or dataset can and cannot do. For LLM papers, the model card should include: the base model and version, fine-tuning data and procedure, evaluation benchmarks and scores (with confidence intervals), known failure modes, and computational cost of training.

6.2 Reproducibility Checklist

Code Fragment 29.13.3 provides a machine-readable reproducibility checklist that you can include in your paper's supplementary material. This checklist is adapted from the ML Reproducibility Checklist used by NeurIPS and ICML, extended with LLM-specific items.

# Code Fragment 29.13.3: Reproducibility checklist for LLM papers
import json
from dataclasses import dataclass, field, asdict
from datetime import date

@dataclass
class ReproducibilityChecklist:
 """Machine-readable checklist for LLM experiment reproducibility."""

 # Paper metadata
 paper_title: str = ""
 authors: list[str] = field(default_factory=list)
 date_completed: str = field(default_factory=lambda: str(date.today()))

 # Model specification
 model_name_and_version: str = "" # e.g., "gpt-4-0613"
 model_access_method: str = "" # "API" | "local weights" | "both"
 model_weights_available: bool = False
 api_version_pinned: bool = False
 system_fingerprint_logged: bool = False

 # Data specification
 dataset_publicly_available: bool = False
 dataset_license_documented: bool = False
 dataset_construction_described: bool = False
 contamination_check_performed: bool = False
 train_dev_test_split_described: bool = False

 # Experiment specification
 all_hyperparameters_reported: bool = False
 random_seeds_specified: bool = False
 number_of_trials_reported: bool = False
 confidence_intervals_reported: bool = False
 statistical_tests_specified: bool = False
 compute_budget_reported: bool = False
 hardware_specification_included: bool = False
 software_versions_pinned: bool = False

 # Ablation and analysis
 ablation_study_included: bool = False
 error_analysis_included: bool = False
 failure_cases_documented: bool = False

 # Human evaluation (if applicable)
 annotation_guidelines_published: bool = False
 inter_annotator_agreement_reported: bool = False
 annotator_demographics_described: bool = False
 annotator_compensation_reported: bool = False

 # Artifacts
 code_released: bool = False
 code_includes_readme: bool = False
 containerized_environment: bool = False
 raw_outputs_archived: bool = False

 def completion_rate(self) -> float:
 """Calculate the fraction of applicable items that are checked."""
 fields = asdict(self)
 bool_fields = {k: v for k, v in fields.items() if isinstance(v, bool)}
 return sum(bool_fields.values()) / len(bool_fields)

 def save(self, path: str) -> None:
 with open(path, "w") as f:
 json.dump(asdict(self), f, indent=2)

 def summary(self) -> str:
 rate = self.completion_rate()
 return (
 f"Reproducibility checklist: {rate:.0%} complete "
 f"({sum(1 for v in asdict(self).values() if v is True)} of "
 f"{sum(1 for v in asdict(self).values() if isinstance(v, bool))} items)"
 )

# Example usage
checklist = ReproducibilityChecklist(
 paper_title="Improving RAG with Adaptive Retrieval",
 authors=["Alice Smith", "Bob Jones"],
 model_name_and_version="gpt-4-0613",
 model_access_method="API",
 api_version_pinned=True,
 system_fingerprint_logged=True,
 dataset_publicly_available=True,
 dataset_license_documented=True,
 all_hyperparameters_reported=True,
 random_seeds_specified=True,
 number_of_trials_reported=True,
 confidence_intervals_reported=True,
 statistical_tests_specified=True,
 ablation_study_included=True,
 code_released=True,
)
print(checklist.summary())
checklist.save("reproducibility_checklist.json")

6.3 Containerized Experiments

Pinning software versions in a requirements file is necessary but not sufficient. Containerized environments (Docker, Singularity) capture the full execution environment, including system libraries, CUDA drivers, and OS-level dependencies. For LLM experiments, include the following in your container: (1) the exact model weights or API client library version, (2) all evaluation harness code at a pinned commit, (3) the evaluation dataset, (4) a single entry-point script that reproduces all reported results, and (5) expected output files for validation. Cross-reference the containerized reproducibility practices discussed in Section 29.7.

7. Writing and Presentation

How you present results is as important as how you obtain them. Reviewers and readers form judgments based on tables, figures, and statistical claims. Sloppy presentation undermines even strong experimental work.

7.1 Result Tables Best Practices

Every result table should include: (1) the metric name and direction (higher is better, or lower is better), (2) the number of evaluation examples, (3) confidence intervals or standard deviations from multiple runs, (4) bold formatting for the best result in each column, (5) a clear indication of which results are from your system and which are from prior work, and (6) statistical significance markers where applicable. Avoid reporting only mean scores without any measure of variance. A single number without context is uninterpretable.

7.2 Bootstrap Confidence Intervals

The bootstrap is the workhorse of statistical inference in LLM evaluation. It requires no distributional assumptions and works with any metric. The procedure is straightforward: resample the evaluation examples with replacement, compute the metric on each resample, and take the 2.5th and 97.5th percentiles as the 95% confidence interval. Code Fragment 29.13.5 demonstrates bootstrap confidence intervals for comparing two systems.

# Code Fragment 29.13.5: Bootstrap confidence intervals for metric comparison
import numpy as np
from typing import Callable

def bootstrap_confidence_interval(
 scores: np.ndarray,
 metric_fn: Callable[[np.ndarray], float],
 n_bootstrap: int = 10_000,
 confidence_level: float = 0.95,
 seed: int = 42,
) -> tuple[float, float, float]:
 """
 Compute bootstrap confidence interval for a metric.

 Args:
 scores: Per-example scores (e.g., 0/1 for accuracy).
 metric_fn: Function that aggregates scores (e.g., np.mean).
 n_bootstrap: Number of bootstrap resamples.
 confidence_level: Confidence level (default 0.95 for 95% CI).
 seed: Random seed for reproducibility.

 Returns:
 Tuple of (point_estimate, lower_bound, upper_bound).
 """
 rng = np.random.RandomState(seed)
 point_estimate = metric_fn(scores)

 bootstrap_estimates = []
 n = len(scores)
 for _ in range(n_bootstrap):
 resample = rng.choice(scores, size=n, replace=True)
 bootstrap_estimates.append(metric_fn(resample))

 bootstrap_estimates = np.array(bootstrap_estimates)
 alpha = 1 - confidence_level
 lower = np.percentile(bootstrap_estimates, 100 * alpha / 2)
 upper = np.percentile(bootstrap_estimates, 100 * (1 - alpha / 2))

 return point_estimate, lower, upper

def paired_bootstrap_test(
 scores_a: np.ndarray,
 scores_b: np.ndarray,
 metric_fn: Callable[[np.ndarray], float] = np.mean,
 n_bootstrap: int = 10_000,
 seed: int = 42,
) -> dict:
 """
 Paired bootstrap test: is system A significantly better than system B?

 Args:
 scores_a: Per-example scores for system A.
 scores_b: Per-example scores for system B.
 metric_fn: Aggregation function.
 n_bootstrap: Number of resamples.
 seed: Random seed.

 Returns:
 Dictionary with observed difference, confidence interval, and p-value.
 """
 assert len(scores_a) == len(scores_b), "Scores must be paired."
 rng = np.random.RandomState(seed)
 n = len(scores_a)

 observed_diff = metric_fn(scores_a) - metric_fn(scores_b)

 # Bootstrap the difference
 bootstrap_diffs = []
 for _ in range(n_bootstrap):
 indices = rng.choice(n, size=n, replace=True)
 diff = metric_fn(scores_a[indices]) - metric_fn(scores_b[indices])
 bootstrap_diffs.append(diff)

 bootstrap_diffs = np.array(bootstrap_diffs)

 # Two-sided p-value: fraction of bootstrap samples where
 # the difference has the opposite sign from observed
 p_value = np.mean(bootstrap_diffs <= 0) if observed_diff > 0 else np.mean(bootstrap_diffs >= 0)

 ci_lower = np.percentile(bootstrap_diffs, 2.5)
 ci_upper = np.percentile(bootstrap_diffs, 97.5)

 return {
 "observed_diff": round(observed_diff, 4),
 "ci_95": (round(ci_lower, 4), round(ci_upper, 4)),
 "p_value": round(p_value, 4),
 "significant_at_005": p_value < 0.05,
 }

# Example: comparing two systems on 500 binary accuracy scores
rng = np.random.RandomState(0)
system_a_scores = rng.binomial(1, 0.78, size=500).astype(float)
system_b_scores = rng.binomial(1, 0.74, size=500).astype(float)

# Single system confidence interval
point, lower, upper = bootstrap_confidence_interval(system_a_scores, np.mean)
print(f"System A accuracy: {point:.3f} [{lower:.3f}, {upper:.3f}]")

# Paired comparison
comparison = paired_bootstrap_test(system_a_scores, system_b_scores)
print(f"Difference: {comparison['observed_diff']:.3f}")
print(f"95% CI: [{comparison['ci_95'][0]:.3f}, {comparison['ci_95'][1]:.3f}]")
print(f"p-value: {comparison['p_value']:.4f}")
print(f"Significant at 0.05: {comparison['significant_at_005']}")

7.3 Permutation Tests

An alternative to the bootstrap is the permutation test, which tests the null hypothesis that two systems perform identically by randomly swapping their scores on each example. Permutation tests are exact (they do not rely on asymptotic approximations) and are particularly appropriate when the number of evaluation examples is small (fewer than 100). For LLM evaluation, where test sets are often in the hundreds rather than thousands, permutation tests can be more reliable than bootstrap methods for small-sample comparisons.

8. Common Pitfalls

The flexibility of LLM systems creates numerous opportunities for methodological errors. Some are accidental; others reflect systemic incentives to report favorable results. Awareness of these pitfalls is the first defense against them.

8.1 P-Hacking with Prompt Tuning

Prompt engineering is a form of hyperparameter search. If you try 50 prompt variants and report the best result, you have effectively run 50 hypothesis tests and selected the one that worked. This inflates your reported performance relative to what a new user would achieve with your system. To avoid this: (1) split your development data into a prompt-tuning set and a held-out validation set, (2) lock the prompt before evaluating on the test set, and (3) report how many prompt variants were tried. Treat prompt selection with the same rigor you would apply to any other hyperparameter search.

8.2 Data Leakage Through Few-Shot Examples

Few-shot examples in the prompt can leak information about the test distribution. If your few-shot examples are drawn from the same source as the test set, or if they are selected to be maximally similar to the test examples (e.g., via nearest-neighbor retrieval from the test set), the resulting performance will overestimate what the system achieves in practice. Few-shot examples should be drawn from a separate pool that does not overlap with the test set, and the selection method should be documented.

8.3 Cherry-Picking Generations

Showing selected model outputs in a paper is legitimate for illustration, but it becomes misleading when the examples are chosen to present the model in the best possible light without acknowledging failure cases. Best practice: select examples by a systematic method (e.g., the median-scoring example, the best and worst examples, or random samples) and state the selection criterion explicitly. Include a failure analysis section that examines cases where the system performs poorly.

8.4 Overfitting to Benchmarks

When the same benchmarks are used repeatedly across papers, there is a community-level risk of overfitting. Systems are implicitly optimized to perform well on popular benchmarks, and design choices that help on MMLU or GSM8K may not transfer to real-world tasks. Mitigations include: (1) evaluating on multiple diverse benchmarks rather than a single headline number, (2) including application-specific evaluations alongside standard benchmarks, (3) reporting results on held-out benchmarks that were not used during development, and (4) conducting user studies that measure real-world task completion rather than benchmark proxies.

Lab: Complete Evaluation Protocol for a RAG System

# Lab: Complete evaluation protocol for a retrieval-augmented QA system

from dataclasses import dataclass, field
from typing import Optional
import json

@dataclass
class EvaluationProtocol:
 """Full specification for a RAG QA system evaluation."""

 # ── Research question ──
 research_question: str = (
 "Does adaptive passage retrieval improve factual QA accuracy "
 "compared to fixed top-k retrieval?"
 )

 # ── Systems under evaluation ──
 systems: dict = field(default_factory=lambda: {
 "random_baseline": "Random passage selection (lower bound)",
 "bm25_topk": "BM25 retrieval, top-5 passages (sparse baseline)",
 "dense_topk": "Dense retrieval (ColBERT), top-5 passages (dense baseline)",
 "adaptive_ours": "Adaptive retrieval with confidence-based re-ranking (proposed)",
 "no_retrieval": "LLM only, no retrieval (ablation: is retrieval needed?)",
 "oracle_retrieval": "Gold passage provided (upper bound)",
 })

 # ── Benchmarks ──
 benchmarks: dict = field(default_factory=lambda: {
 "natural_questions_open": {
 "source": "Google NQ Open (Kwiatkowski et al., 2019)",
 "n_test": 3610,
 "split": "standard test split",
 "rationale": "Well-established open-domain QA benchmark",
 },
 "custom_held_out": {
 "source": "Manually curated, never published online",
 "n_test": 200,
 "split": "temporal split (questions from 2025+)",
 "rationale": "Contamination-free evaluation on recent knowledge",
 },
 })

 # ── Metrics ──
 metrics: list = field(default_factory=lambda: [
 {"name": "Exact Match (EM)", "primary": True,
 "description": "Strict string match after normalization"},
 {"name": "Token-level F1", "primary": True,
 "description": "Unigram overlap between prediction and reference"},
 {"name": "Recall@5", "primary": False,
 "description": "Retrieval quality: is the gold passage in the top 5?"},
 {"name": "Answer faithfulness", "primary": False,
 "description": "Human-judged: is the answer supported by retrieved passages?"},
 ])

 # ── Ablations ──
 ablations: list = field(default_factory=lambda: [
 "Remove adaptive re-ranking (use static top-k instead)",
 "Remove confidence thresholding (always retrieve)",
 "Vary number of retrieved passages: k in {1, 3, 5, 10, 20}",
 "Replace dense retriever with BM25 (keeping adaptive logic)",
 "Remove passage concatenation (use only top-1 passage)",
 "Vary LLM temperature: {0.0, 0.3, 0.7, 1.0}",
 ])

 # ── Statistical protocol ──
 statistical_protocol: dict = field(default_factory=lambda: {
 "n_trials": 5,
 "seeds": [42, 123, 456, 789, 1024],
 "confidence_intervals": "Bootstrap, 10000 resamples, 95% CI",
 "significance_test": "Paired bootstrap test, alpha=0.05",
 "multiple_comparison_correction": "Bonferroni for pairwise system comparisons",
 })

 # ── Human evaluation ──
 human_eval: dict = field(default_factory=lambda: {
 "n_examples": 100,
 "selection": "Stratified random: 50 correct, 50 incorrect by EM",
 "n_annotators": 3,
 "criteria": [
 "Factual accuracy (1-5 scale)",
 "Answer completeness (1-5 scale)",
 "Faithfulness to retrieved context (binary)",
 ],
 "agreement_threshold": "Krippendorff alpha >= 0.67",
 "calibration": "10 shared examples discussed before main annotation",
 "platform": "Prolific, English-fluent workers, qualification test required",
 "compensation": "$15/hour minimum",
 })

 # ── Reproducibility artifacts ──
 artifacts: list = field(default_factory=lambda: [
 "Docker container with pinned dependencies",
 "All prompts in version-controlled YAML files",
 "Raw model outputs for all experiments (JSON)",
 "Annotation guidelines (PDF)",
 "Reproducibility checklist (JSON)",
 "Model card for fine-tuned retriever",
 ])

 def save_protocol(self, path: str) -> None:
 """Export the full protocol as a JSON document."""
 from dataclasses import asdict
 with open(path, "w") as f:
 json.dump(asdict(self), f, indent=2)
 print(f"Protocol saved to {path}")

 def summarize(self) -> str:
 """Print a human-readable summary."""
 lines = [
 f"Research Question: {self.research_question}",
 f"Systems: {len(self.systems)} (including baselines and ablations)",
 f"Benchmarks: {len(self.benchmarks)}",
 f"Metrics: {len(self.metrics)} ({sum(1 for m in self.metrics if m['primary'])} primary)",
 f"Ablations: {len(self.ablations)}",
 f"Trials per configuration: {self.statistical_protocol['n_trials']}",
 f"Human evaluation: {self.human_eval['n_examples']} examples, "
 f"{self.human_eval['n_annotators']} annotators",
 f"Artifacts: {len(self.artifacts)} items",
 ]
 return "\n".join(lines)

# Create and inspect the protocol
protocol = EvaluationProtocol()
print(protocol.summarize())
protocol.save_protocol("evaluation_protocol.json")
