Distributed Training

When one GPU is no longer enough, distributed training spreads the model, the data, or both across multiple devices. PyTorch ships three increasingly capable approaches: the legacy single-process DataParallel (briefly covered for historical context), the modern multi-process DistributedDataParallel (the default for data-parallel training), and Fully Sharded Data Parallel (FSDP, the default for models that exceed a single GPU's memory). For most teams that do not want to write distributed code at all, Hugging Face Accelerate provides a thin launcher on top of these primitives. This section explains when to reach for each.

The mathematical story behind why distributed pretraining works at all (the Chinchilla scaling laws, the compute-optimal token budget) lives in Chapter 6. Distributed inference patterns for production serving are covered in Chapter 9.

DataParallel: The Legacy Single-Process Path

The original nn.DataParallel wraps a model and, on each forward pass, scatters the input across multiple GPUs, replicates the model on each, runs the forward pass in parallel, and gathers the outputs. It runs entirely in one Python process. This sounds attractive but is dominated by the global interpreter lock (GIL): the gather step serializes all gradients through the master process, and the replication step copies the model on every forward pass. DataParallel typically achieves 50 to 70 percent of single-GPU efficiency per added device.

Use DataParallel for nothing. It is mentioned here only because legacy code uses it. The drop-in modern replacement is DistributedDataParallel, which uses one process per GPU and is strictly faster and more scalable.

DistributedDataParallel: The Modern Default

nn.parallel.DistributedDataParallel (DDP) replicates the model on every GPU, runs forward and backward independently on each replica, and then synchronizes gradients via an all-reduce collective so every replica sees the average gradient and performs an identical optimizer step. Each GPU runs in its own process; there is no master process bottleneck. The all-reduce overlaps with the backward pass (gradients for early layers are reduced while later layers are still computing their backwards), so the communication cost is largely hidden.

The launcher is torchrun, which sets the environment variables every DDP process needs (RANK, WORLD_SIZE, LOCAL_RANK, MASTER_ADDR, MASTER_PORT) and spawns one process per GPU. The training script then initializes the process group, builds the model on the local GPU, and wraps it in DDP.

import os
import torch
import torch.distributed as dist
from torch.nn.parallel import DistributedDataParallel as DDP

def main():
    dist.init_process_group(backend="nccl")
    local_rank = int(os.environ["LOCAL_RANK"])
    torch.cuda.set_device(local_rank)
    device = torch.device("cuda", local_rank)

    model = NeuralNetwork(num_inputs=512, num_outputs=10).to(device)
    model = DDP(model, device_ids=[local_rank])
    optimizer = torch.optim.AdamW(model.parameters(), lr=1e-4)

    sampler = torch.utils.data.distributed.DistributedSampler(train_set)
    loader  = torch.utils.data.DataLoader(train_set, batch_size=32,
                                          sampler=sampler)

    for epoch in range(num_epochs):
        sampler.set_epoch(epoch)         # ensures different shuffle per epoch
        for features, labels in loader:
            features = features.to(device, non_blocking=True)
            labels   = labels.to(device, non_blocking=True)
            optimizer.zero_grad(set_to_none=True)
            loss = torch.nn.functional.cross_entropy(model(features), labels)
            loss.backward()
            optimizer.step()

    dist.destroy_process_group()

if __name__ == "__main__":
    main()

# Launch: torchrun --nproc-per-node=4 train_ddp.py

Fully Sharded Data Parallel

DDP replicates the model on every GPU, so the maximum model size is bounded by single-GPU memory. For multi-billion-parameter models, this is the binding constraint long before compute becomes the bottleneck. Fully Sharded Data Parallel (FSDP) breaks the constraint by sharding the model's parameters, gradients, and optimizer state across GPUs: each rank holds only its slice and reconstructs full layers on demand using all-gather collectives, freeing them again after use.

The intuition is that, for a transformer layer with parameter count $P$ per GPU sharded across $N$ GPUs, each GPU only stores $P/N$ in steady state but briefly materializes $P$ during the forward pass for that layer. With activation checkpointing layered on top, even very large models can be trained on commodity GPU clusters. The cost is communication: each layer's forward and backward incurs an all-gather and (in backward) a reduce-scatter; the wall clock penalty versus DDP is typically 10 to 30 percent, more than paid back by the larger model that now fits.

FSDP1 vs FSDP2

PyTorch has shipped two FSDP implementations. FSDP1 (the original, available since PyTorch 1.11) wraps modules at construction time and exposes a per-module API. It works but has rough edges: limited support for parameter freezing, complex interaction with torch.compile, and a state-dict format that does not match a single-GPU model. FSDP2 (introduced in PyTorch 2.4, generally available in 2.5) uses a per-parameter sharding strategy built on the DTensor abstraction. It is simpler to use, composes cleanly with torch.compile and mixed precision, supports partial freezing, and saves state dicts that are interchangeable with single-GPU checkpoints. New code should use FSDP2.

import torch
import torch.distributed as dist
from torch.distributed.fsdp import fully_shard, MixedPrecisionPolicy

dist.init_process_group(backend="nccl")
local_rank = int(os.environ["LOCAL_RANK"])
torch.cuda.set_device(local_rank)

model = build_transformer().cuda()

mp_policy = MixedPrecisionPolicy(
    param_dtype=torch.bfloat16,        # parameters held in bfloat16
    reduce_dtype=torch.float32,        # gradient all-reduce in float32
)

# Shard each transformer block independently for finer-grained
# overlap of compute and communication.
for block in model.transformer_blocks:
    fully_shard(block, mp_policy=mp_policy)
fully_shard(model, mp_policy=mp_policy)

optimizer = torch.optim.AdamW(model.parameters(), lr=1e-4)

# Training loop is identical to DDP from this point on.

Sharding Strategies

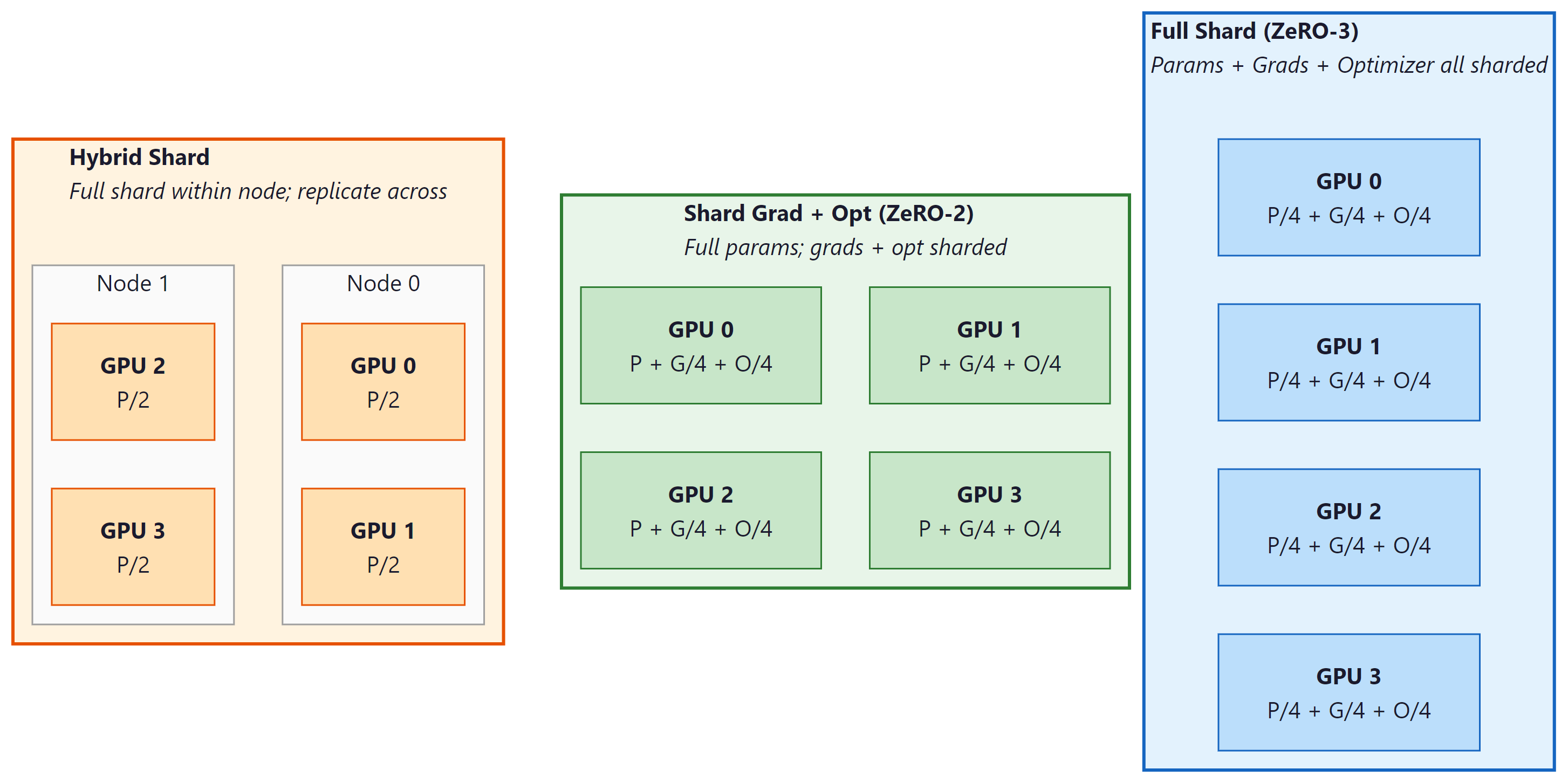

Figure E.7.1: Three FSDP sharding strategies trade memory savings for communication volume; full shard maximizes savings, hybrid shard balances intra-node speed against cross-node bandwidth.

FSDP exposes several strategies that trade memory against communication:

• Full shard (the default): parameters, gradients, and optimizer state are all sharded. Maximum memory savings, highest communication. The right choice when the model would not otherwise fit.
• Shard grad and optimizer only (ZeRO-2 in DeepSpeed terminology): parameters replicated, gradients and optimizer state sharded. Less communication, less memory savings. Useful when parameters fit but optimizer state does not.
• Hybrid shard: full shard within a small group of GPUs (e.g., one node), replicated across groups. Reduces cross-node bandwidth requirements; the typical choice for multi-node training where intra-node NVLink is much faster than inter-node Ethernet or InfiniBand.

Combining with Activation Checkpointing

Activation checkpointing (also called gradient checkpointing) trades compute for memory: instead of saving every intermediate activation for the backward pass, only a subset is saved and the rest are recomputed. For transformers, the typical recipe is to checkpoint every attention block, which roughly halves activation memory at the cost of one extra forward pass per backward. Combined with FSDP, activation checkpointing is what makes 7B-to-70B parameter models trainable on clusters of 80GB GPUs. The PyTorch API is torch.utils.checkpoint.checkpoint(function, *args) or, for whole modules, the more ergonomic torch.distributed.algorithms._checkpoint.checkpoint_wrapper.

Hugging Face Accelerate

Hugging Face's accelerate library is a thin abstraction over PyTorch's distributed primitives that lets a single training script run unchanged on CPU, single GPU, multi-GPU DDP, FSDP, or DeepSpeed. The pattern is to construct an Accelerator, call accelerator.prepare(model, optimizer, loader), and then use accelerator.backward(loss) instead of loss.backward(). The accelerate config CLI walks the user through choosing a launch strategy and writes a config file; accelerate launch script.py then handles the equivalent of torchrun.

Accelerate is the recommended starting point for teams that want distributed training without authoring the boilerplate. The escape hatch (dropping to raw DDP or FSDP) is always available when fine-grained control is needed.

from accelerate import Accelerator

accelerator = Accelerator(mixed_precision="bf16")
model, optimizer, loader = accelerator.prepare(model, optimizer, loader)

for epoch in range(num_epochs):
    for batch in loader:
        loss = compute_loss(model, batch)
        accelerator.backward(loss)
        optimizer.step()
        optimizer.zero_grad(set_to_none=True)
