RLHF: Reinforcement Learning from Human Feedback

Language models know a lot, but they do not know what we want. That is the alignment problem in one sentence.

Reward, Existentially Aware AI Agent

1. The Alignment Problem

A pretrained language model optimizes a single objective: predict the next token. This objective produces remarkable capabilities in text generation, translation, summarization, and reasoning. However, next-token prediction does not inherently encode any preference for helpful, harmless, or honest behavior. A base model will happily complete a request for harmful content, generate fabricated citations, or produce verbose responses when a concise answer would be more useful.

The alignment problem is the challenge of bridging this gap: how do we take a capable base model and steer its behavior to match human intentions? Supervised fine-tuning (SFT) on curated instruction-response pairs provides a partial solution, teaching the model the format of helpful responses. But SFT alone cannot capture the full spectrum of human preferences, especially for subjective qualities like tone, level of detail, safety boundaries, and response style. RLHF addresses this limitation by using human preferences as a training signal.

Why is RLHF fundamentally different from SFT? SFT shows the model examples of good behavior and says "do this." RLHF shows the model pairs of outputs and says "this one is better than that one." This distinction matters profoundly. SFT can only encode preferences that are expressible as explicit demonstrations, but many important qualities (helpfulness, safety, appropriate tone) are easier to judge comparatively than to demonstrate directly. You may struggle to write the "perfect" response to a sensitive question, but you can easily say which of two responses is better. RLHF converts this comparative judgment into a training signal, which is why it was the key ingredient that turned capable-but-erratic base models into usable assistants. The safety implications connect to Chapter 26, where alignment is a prerequisite for safe deployment.

2. The Three-Stage RLHF Pipeline

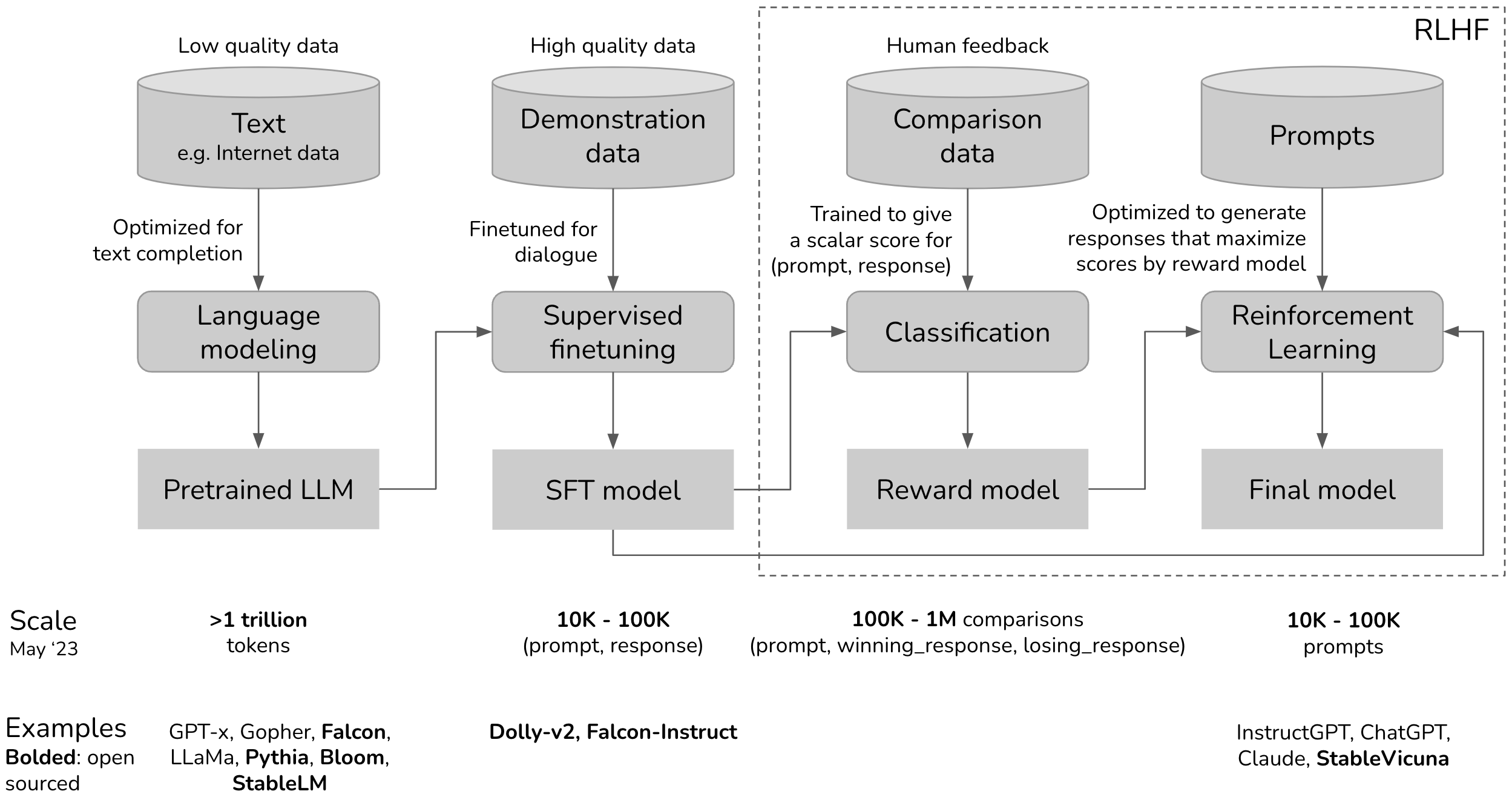

The canonical RLHF pipeline, as described in the InstructGPT paper (Ouyang et al., 2022), consists of three sequential stages. Each stage builds on the output of the previous one, and the entire pipeline transforms a pretrained base model into an aligned assistant. Figure 17.1.1 shows the three stages and how they connect.

2.1 Stage 1: Supervised Fine-Tuning (SFT)

The first stage takes a pretrained base model and fine-tunes it on a curated dataset of instruction-response pairs, following the fine-tuning workflow from Chapter 14. This step teaches the model the basic format and style of a conversational assistant. The SFT dataset typically contains thousands to tens of thousands of high-quality demonstrations written by human annotators or distilled from stronger models.

SFT alone produces a functional assistant, but its quality is bounded by the demonstration data. The model learns to imitate the average quality of the training responses, which means it cannot exceed the skill level of the annotators. RLHF addresses this ceiling by replacing imitation with optimization toward a learned preference signal.

Code Fragment 17.1.2 demonstrates the SFT stage using the TRL library, loading an instruction dataset and configuring the trainer for chat-formatted fine-tuning.

# Stage 1: Supervised Fine-Tuning with TRL
from trl import SFTTrainer, SFTConfig
from transformers import AutoModelForCausalLM, AutoTokenizer
from datasets import load_dataset

model_name = "meta-llama/Llama-3.1-8B"
model = AutoModelForCausalLM.from_pretrained(model_name)
tokenizer = AutoTokenizer.from_pretrained(model_name)

# Load instruction-following dataset
dataset = load_dataset("HuggingFaceH4/ultrachat_200k", split="train_sft")

# Format conversations into chat template
def format_chat(example):
 return {
 "text": tokenizer.apply_chat_template(
 example["messages"], tokenize=False
 )
 }

dataset = dataset.map(format_chat)

# Configure SFT training
sft_config = SFTConfig(
 output_dir="./sft-llama-8b",
 max_seq_length=2048,
 per_device_train_batch_size=4,
 gradient_accumulation_steps=8,
 learning_rate=2e-5,
 num_train_epochs=1,
 warmup_ratio=0.1,
 logging_steps=10,
 bf16=True,
)

trainer = SFTTrainer(
 model=model,
 args=sft_config,
 train_dataset=dataset,
 tokenizer=tokenizer, # use processing_class in TRL >= 0.14
)

trainer.train()
trainer.save_model("./sft-llama-8b-final")

Training samples: 161000
Example chosen: \n\nHuman: What is the best way to treat a sunburn?\n\nAssistant: The best approach is...
Example rejected: \n\nHuman: What is the best way to treat a sunburn?\n\nAssistant: You should just ignore...
{'train_loss': 0.4312, 'train_runtime': 1847.3}

2.2 Stage 2: Reward Model Training

The reward model is the bridge between human judgment and machine optimization. It takes a prompt and a response as input and produces a scalar score indicating how good the response is according to human preferences. The following snippet demonstrates how to train a reward model on pairwise comparison data.

# Stage 2: Reward Model Training
from trl import RewardTrainer, RewardConfig
from transformers import AutoModelForSequenceClassification

# Initialize reward model from the SFT checkpoint
reward_model = AutoModelForSequenceClassification.from_pretrained(
 "./sft-llama-8b-final",
 num_labels=1, # single scalar reward
)

# Load preference dataset (chosen / rejected pairs)
pref_dataset = load_dataset(
 "Anthropic/hh-rlhf", split="train"
)

# The dataset has 'chosen' and 'rejected' columns
# Each is a full conversation string
print(f"Training samples: {len(pref_dataset)}")
print(f"Example chosen: {pref_dataset[0]['chosen'][:100]}...")
print(f"Example rejected: {pref_dataset[0]['rejected'][:100]}...")

# Configure reward model training
reward_config = RewardConfig(
 output_dir="./reward-model-llama-8b",
 per_device_train_batch_size=4,
 gradient_accumulation_steps=8,
 learning_rate=1e-5,
 num_train_epochs=1,
 max_length=2048,
 logging_steps=10,
 bf16=True,
 # Reward model specific
 remove_unused_columns=False,
)

reward_trainer = RewardTrainer(
 model=reward_model,
 args=reward_config,
 train_dataset=pref_dataset,
 tokenizer=tokenizer,
)

reward_trainer.train()
reward_trainer.save_model("./reward-model-llama-8b-final")

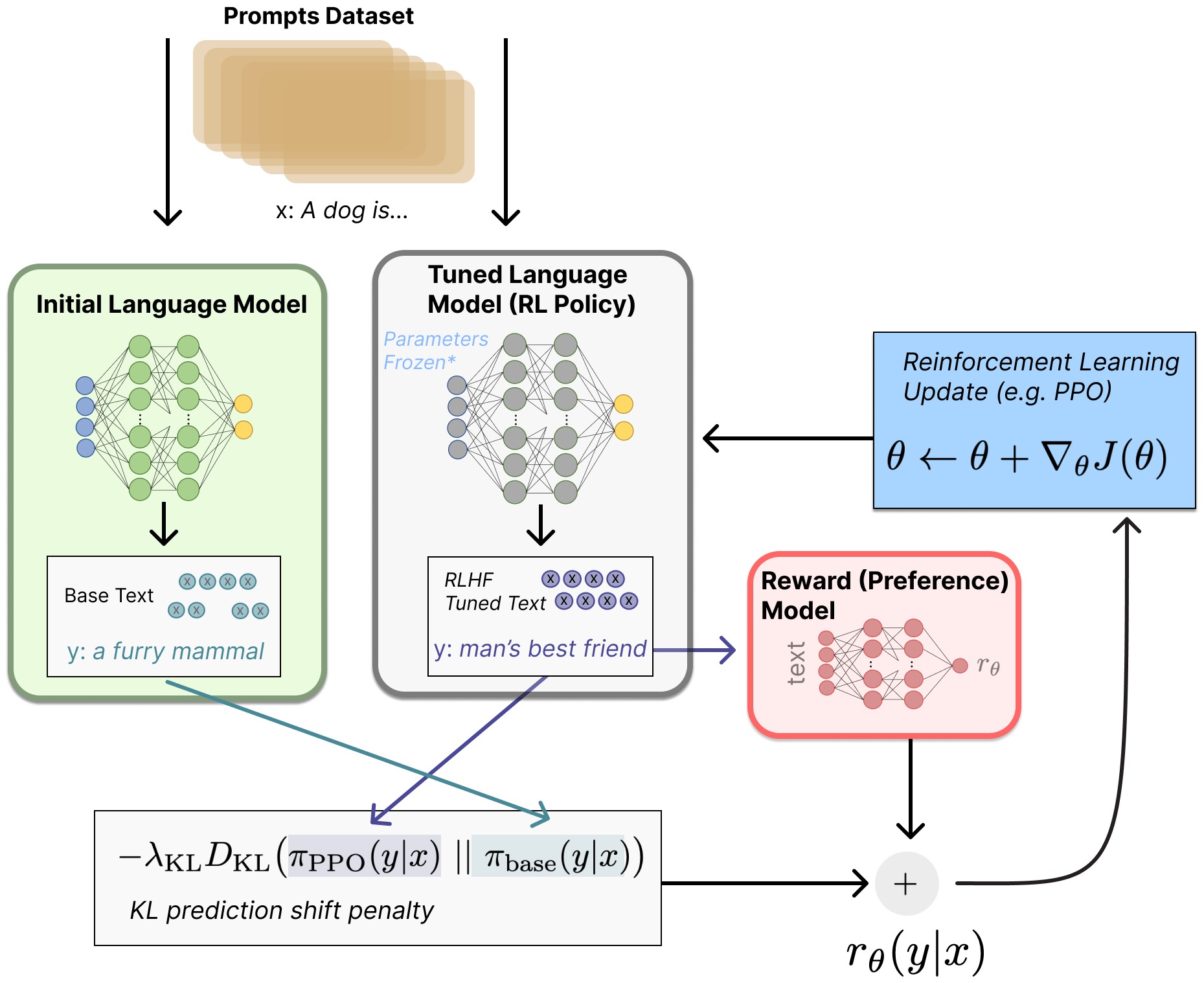

With both the SFT model and the reward model ready, Stage 3 applies PPO to optimize the policy. Algorithm 1 formalizes the PPO training loop for alignment.

Input: SFT model pi_sft, reward model R, reference policy pi_ref = pi_sft, KL weight beta
Output: aligned policy pi*

1. Initialize policy pi = pi_sft, value network V (same architecture as pi)
2. for each training iteration:
 a. Sample batch of prompts {x_1, ..., x_B}
 b. for each prompt x_i:
 Generate response y_i ~ pi(.|x_i)
 Compute reward: r_i = R(x_i, y_i) - beta * KL(pi(.|x_i) || pi_ref(.|x_i))
 c. Compute advantages using GAE (Generalized Advantage Estimation):
 A_t = r_t + gamma * V(s_{t+1}) - V(s_t), accumulated over tokens
 d. for each PPO epoch (typically 2 to 4):
 Update pi to maximize clipped surrogate objective:
 L = min(ratio * A, clip(ratio, 1-eps, 1+eps) * A)
 Update V to minimize value prediction error
3. return pi* (the aligned policy)


The KL penalty in step 2b is critical: without it, the policy can "game" the reward model by producing outputs that score highly but are incoherent or repetitive (a phenomenon called reward hacking). The KL term anchors the policy near the SFT distribution, preserving the model's language capabilities while steering its behavior. The following code demonstrates the PPO training loop with TRL.

# Stage 3: PPO Training with TRL
from trl import PPOTrainer, PPOConfig, AutoModelForCausalLMWithValueHead
import torch

# Load the SFT model as the policy (with a value head for PPO)
policy_model = AutoModelForCausalLMWithValueHead.from_pretrained(
 "./sft-llama-8b-final"
)

# The reference model is a frozen copy of the SFT model
ref_model = AutoModelForCausalLMWithValueHead.from_pretrained(
 "./sft-llama-8b-final"
)

# Load the trained reward model
from transformers import pipeline
reward_pipe = pipeline(
 "text-classification",
 model="./reward-model-llama-8b-final",
 device_map="auto",
)

# PPO configuration
ppo_config = PPOConfig(
 output_dir="./ppo-llama-8b",
 learning_rate=1e-6, # very small LR for stability
 batch_size=64,
 mini_batch_size=8,
 ppo_epochs=4, # PPO epochs per batch
 kl_penalty="kl",
 init_kl_coef=0.2, # initial beta for KL penalty
 target_kl=6.0, # adaptive KL target
 gamma=1.0,
 lam=0.95,
 cliprange=0.2, # PPO clipping
 log_with="wandb",
)

ppo_trainer = PPOTrainer(
 config=ppo_config,
 model=policy_model,
 ref_model=ref_model,
 tokenizer=tokenizer,
)

# Training loop (simplified; real code uses TRL's data utilities)
prompts_dataset = load_dataset("Anthropic/hh-rlhf", split="test")

for epoch, batch in enumerate(prompts_dataset.iter(batch_size=64)):
 query_tensors = [tokenizer.encode(p, return_tensors="pt").squeeze() for p in batch["chosen"]]

 # Generate responses from the current policy
 response_tensors = ppo_trainer.generate(
 query_tensors,
 max_new_tokens=256,
 temperature=0.7,
 top_p=0.9,
 )

 # Score responses with the reward model
 texts = [tokenizer.decode(r) for r in response_tensors]
 rewards = [
 torch.tensor(reward_pipe(t)[0]["score"])
 for t in texts
 ]

 # PPO update step
 stats = ppo_trainer.step(query_tensors, response_tensors, rewards)
 ppo_trainer.log_stats(stats, batch, rewards)

3. PPO Mechanics for LLM Alignment

The PPO stage in RLHF is where the actual policy optimization happens, and understanding its mechanics is essential for diagnosing training failures. PPO for LLM alignment involves four distinct models that must be coordinated during training, each with a specific role in the optimization loop.

3.1 The Four Models in PPO-Based RLHF

The policy model is the language model being trained. It starts as a copy of the SFT model and is updated at every PPO step. The reference model is a frozen copy of the SFT model. It never receives gradient updates. Its purpose is to anchor the policy: the KL divergence between the policy and the reference acts as a regularizer, preventing the policy from drifting into degenerate regions of the output space. The reward model is trained in Stage 2 on human preference data. During PPO, it scores each generated response with a scalar reward. It is frozen during the RL phase. The value model (also called the critic) estimates the expected future reward for each token position. It shares architecture with the policy model (often sharing the base weights, with only the value head trained separately) and is used to compute advantage estimates via Generalized Advantage Estimation (GAE).

3.2 The Clipping Mechanism

PPO's core innovation is the clipped surrogate objective. At each update step, the algorithm computes the probability ratio between the current policy and the old policy (the policy that generated the data): r(t) = π(a|s) / π_old(a|s). The clipped objective prevents excessively large updates by bounding this ratio:

Here, ε is the clip range (typically 0.2), and A(t) is the advantage estimate. When the advantage is positive (the action was better than expected), the clipping prevents the ratio from exceeding 1+ε, limiting how much the policy can increase the probability of that action in one step. When the advantage is negative, the clipping prevents the ratio from falling below 1−ε. This creates a "trust region" that keeps each update conservative, which is critical for training stability in the language model setting where the action space (vocabulary) is enormous.

A numeric example shows the clipping in action with ε = 0.2:

# PPO clipping: numeric walkthrough
eps = 0.2

# Case 1: positive advantage, ratio too high (policy moved too far)
r_t, A_t = 1.5, 0.4
clipped_r = min(max(r_t, 1 - eps), 1 + eps) # clip(1.5, 0.8, 1.2) = 1.2
loss = min(r_t * A_t, clipped_r * A_t) # min(0.60, 0.48) = 0.48
print(f"ratio={r_t}, A={A_t} -> clipped_ratio={clipped_r}, loss={loss}")

# Case 2: negative advantage, ratio too low
r_t, A_t = 0.6, -0.3
clipped_r = min(max(r_t, 1 - eps), 1 + eps) # clip(0.6, 0.8, 1.2) = 0.8
loss = min(r_t * A_t, clipped_r * A_t) # min(-0.18, -0.24) = -0.24
print(f"ratio={r_t}, A={A_t} -> clipped_ratio={clipped_r}, loss={loss}")
# In both cases, clipping limits the effective gradient magnitude.

3.3 KL Penalty and Reward Shaping

The final reward signal passed to PPO is not the raw reward model output. Instead, it is shaped by subtracting a KL penalty:

The coefficient β controls the strength of this penalty. TRL implements an adaptive KL controller that adjusts β dynamically during training: if KL divergence exceeds a target threshold, β increases to pull the policy back; if KL is below the target, β decreases to allow more exploration. Typical target KL values range from 4.0 to 8.0 nats.

Code Fragment 17.1.4 provides a simplified pseudocode walkthrough of the PPO update step, showing how the four models interact in a single training iteration.

# Pseudocode: One PPO update step for LLM alignment
# This shows the logical flow; real implementations use TRL/DeepSpeed

def ppo_update_step(
 policy, # trainable language model + value head
 ref_model, # frozen SFT model
 reward_model, # frozen reward model from Stage 2
 prompts, # batch of prompts
 beta=0.2, # KL penalty coefficient
 clip_eps=0.2, # PPO clipping range
 gamma=1.0, # discount factor (1.0 for single-turn)
 lam=0.95, # GAE lambda
):
 # --- Phase 1: Generate responses from current policy ---
 with torch.no_grad():
 responses = policy.generate(prompts, max_new_tokens=256)
 old_logprobs = policy.log_probs(prompts, responses)
 old_values = policy.value_head(prompts, responses) # V(s) estimates

 # --- Phase 2: Score with reward model and compute KL ---
 with torch.no_grad():
 rm_scores = reward_model.score(prompts, responses)
 ref_logprobs = ref_model.log_probs(prompts, responses)

 # Per-token KL divergence
 kl_per_token = old_logprobs - ref_logprobs
 # Shaped reward: RM score minus KL penalty
 shaped_rewards = rm_scores - beta * kl_per_token.sum(dim=-1)

 # --- Phase 3: Compute advantages via GAE ---
 advantages = compute_gae(shaped_rewards, old_values, gamma, lam)
 returns = advantages + old_values

 # --- Phase 4: PPO clipped update (multiple mini-epochs) ---
 for epoch in range(4): # ppo_epochs
 new_logprobs = policy.log_probs(prompts, responses)
 new_values = policy.value_head(prompts, responses)

 # Probability ratio
 ratio = torch.exp(new_logprobs - old_logprobs)

 # Clipped surrogate loss
 surr1 = ratio * advantages
 surr2 = torch.clamp(ratio, 1 - clip_eps, 1 + clip_eps) * advantages
 policy_loss = -torch.min(surr1, surr2).mean()

 # Value function loss
 value_loss = F.mse_loss(new_values, returns)

 # Combined loss
 total_loss = policy_loss + 0.5 * value_loss
 total_loss.backward()
 optimizer.step()
 optimizer.zero_grad()

mean=0.45, std=0.2217
advantages=[-1.13 1.58 0.23 -0.68]

TRL's PPOTrainer encapsulates all four phases into a single high-level API:

# Library shortcut: PPO alignment with TRL (pip install trl)
from trl import PPOTrainer, PPOConfig, AutoModelForCausalLMWithValueHead

model = AutoModelForCausalLMWithValueHead.from_pretrained("./sft-checkpoint")
ppo_config = PPOConfig(batch_size=16, learning_rate=1.4e-5, ppo_epochs=4)
trainer = PPOTrainer(config=ppo_config, model=model, tokenizer=tokenizer)

# Each step: generate, score, update (all handled internally)
for batch in dataloader:
 queries, responses = batch["input_ids"], trainer.generate(batch["input_ids"])
 rewards = [reward_model.score(q, r) for q, r in zip(queries, responses)]
 trainer.step(queries, responses, rewards)

4. GRPO: Group Relative Policy Optimization

Group Relative Policy Optimization (Shao et al., 2024), introduced as part of DeepSeek's training pipeline, offers an elegant simplification of PPO for LLM alignment. The core idea: instead of training a separate value network to estimate baselines, GRPO generates a group of G responses for each prompt and uses the group's reward statistics as the baseline. This eliminates one of the four models entirely, cutting memory requirements by roughly 25 to 40 percent.

4.1 How Group Normalization Replaces the Value Network

In standard PPO, the value network V(s) estimates "how good is this prompt on average?" so that the advantage A(t) = R(t) − V(s) measures whether a specific response is better or worse than expected. Training this value network requires its own forward and backward passes, its own optimizer states, and careful coordination with the policy.

GRPO sidesteps this entirely. For a given prompt x, it generates G responses {$y_{1}$, ..., $y_{G}$}, computes their rewards {$r_{1}$, ..., $r_{G}$}, and normalizes within the group:

This group-level z-score normalization serves the same purpose as a learned value baseline: it tells the algorithm which responses are above or below average for that specific prompt. The intuition is straightforward. If you generate eight responses and score them, the best ones get positive advantages and the worst ones get negative advantages, regardless of the absolute reward scale. This relative comparison is robust and requires no learned parameters.

A quick numeric example shows why this works. Suppose G = 4 responses receive rewards [0.2, 0.8, 0.5, 0.3]:

# GRPO group normalization: numeric walkthrough
import numpy as np

rewards = np.array([0.2, 0.8, 0.5, 0.3])
mean, std = rewards.mean(), rewards.std() # mean=0.45, std=0.2217
advantages = (rewards - mean) / (std + 1e-8)
print(f"mean={mean:.2f}, std={std:.4f}")
print(f"advantages={np.round(advantages, 2)}")
# advantages=[-1.13 1.58 0.23 -0.68]
# Response 2 (reward 0.8) gets the strongest positive signal.

4.2 When to Prefer GRPO Over PPO

GRPO is particularly well suited for tasks with verifiable rewards (math, coding, factual QA) where a reward function can be computed programmatically rather than learned from human preferences. DeepSeek-R1 used GRPO with outcome-based rewards (correct/incorrect) to train reasoning capabilities. For subjective tasks where the reward model itself is noisy, PPO's learned value function may provide more stable training because it smooths out reward model noise over time.

Code Fragment 17.1.9 provides a simplified GRPO implementation showing the group normalization mechanism and clipped policy gradient.

# GRPO: Group Relative Policy Optimization (simplified)
import torch
import torch.nn.functional as F

def grpo_loss(
 policy_model,
 ref_model,
 prompts,
 tokenizer,
 reward_fn,
 group_size=8,
 beta=0.1,
 clip_range=0.2,
):
 """
 Simplified GRPO training step.

 Key difference from PPO: no value network.
 Advantages are computed by normalizing rewards
 within each group of responses per prompt.
 """
 all_losses = []

 for prompt in prompts:
 # Generate a group of responses
 input_ids = tokenizer.encode(prompt, return_tensors="pt")
 responses = []
 for _ in range(group_size):
 output = policy_model.generate(
 input_ids, max_new_tokens=512, do_sample=True,
 temperature=0.8, top_p=0.95,
 )
 responses.append(output[0])

 # Compute rewards for each response
 rewards = torch.tensor([
 reward_fn(prompt, tokenizer.decode(r)) for r in responses
 ])

 # Group-level normalization (replaces value network)
 normalized_rewards = (rewards - rewards.mean()) / (rewards.std() + 1e-8)

 # Compute policy gradient with clipped objective
 for response, advantage in zip(responses, normalized_rewards):
 # Log probabilities under current and reference policy
 with torch.no_grad():
 ref_logprobs = compute_logprobs(ref_model, input_ids, response)
 policy_logprobs = compute_logprobs(policy_model, input_ids, response)

 # Importance ratio
 ratio = torch.exp(policy_logprobs - ref_logprobs)

 # Clipped surrogate objective (PPO-style)
 surr1 = ratio * advantage
 surr2 = torch.clamp(ratio, 1 - clip_range, 1 + clip_range) * advantage
 policy_loss = -torch.min(surr1, surr2).mean()

 # KL penalty
 kl = (ref_logprobs - policy_logprobs).mean()
 total_loss = policy_loss + beta * kl
 all_losses.append(total_loss)

 return torch.stack(all_losses).mean()

5. Reward Hacking and Mitigation

Reward hacking (also called reward gaming or Goodhart's Law applied to RL) is the phenomenon where the policy learns to exploit weaknesses in the reward model rather than genuinely improving response quality. It is the most common failure mode in RLHF and one of the most difficult to detect early.

5.1 Mitigation Strategies

Several complementary strategies help prevent or detect reward hacking:

• KL divergence as a leash: The KL penalty between the policy and reference model is the first line of defense. If the policy drifts too far from the SFT model, it has likely found an exploit. Adaptive KL controllers (as in TRL) automatically increase the penalty when divergence spikes.
• Reward model ensembles: Training multiple reward models on different data splits and using their consensus score reduces the surface area for exploitation. Disagreement between ensemble members signals unreliable regions of the reward landscape.
• Iterative RLHF with reward model retraining: After each round of PPO training, collect fresh human preferences on the current policy's outputs and retrain the reward model. This closes the distribution gap between the reward model's training data and the policy's actual behavior. Anthropic's training process uses multiple iterations of this loop.
• Length normalization: Normalizing the reward by response length prevents the model from learning that "longer is better." This is especially important when the preference dataset has a length bias.
• Held-out human evaluation: Automated metrics are themselves subject to Goodhart's Law. Periodic human evaluation on randomly sampled outputs catches reward hacking that the reward model misses. See Section 29.1 on evaluation methodology for frameworks.

5.5 RLHF vs DPO vs GRPO: Choosing an Alignment Method

With three major alignment optimization methods available, practitioners need clear guidance on which to choose. The following comparison covers the key dimensions that affect both training feasibility and outcome quality.

5.7 Practical Tips for RL-Based Alignment

Learning Rate and Schedule

Use a learning rate 10 to 100 times smaller than your SFT learning rate. Typical ranges: 1e-6 to 5e-6 for PPO, 1e-7 to 5e-7 for DPO. A cosine schedule with a warmup period of 5 to 10 percent of training steps helps stabilize early training. For PPO specifically, the learning rate for the value head can be 2 to 5 times larger than the policy learning rate.

Batch Size

Larger batches produce more stable reward and advantage estimates. For PPO, use at least 64 responses per batch (across all prompts). For GRPO, the effective batch size is the number of prompts times the group size G; a minimum of 128 total responses per update is recommended. For DPO, batch sizes of 32 to 128 preference pairs work well, with larger batches improving gradient stability.

When to Stop Training

Monitor these signals to determine when to stop:

• KL divergence exceeds threshold: If KL between policy and reference exceeds 10 to 15 nats, the policy has drifted too far. In TRL, set target_kl to trigger adaptive adjustment.
• Reward plateau with rising KL: If the reward score stops improving but KL keeps growing, the policy is likely reward hacking rather than genuinely improving.
• Validation win rate stalls: If the model's win rate against the SFT baseline (measured on held-out prompts by an LLM judge) stops increasing, further training is unlikely to help.
• Generation diversity collapse: If distinct prompts produce nearly identical responses, the policy has collapsed. Measure this with type-token ratio or self-BLEU on a held-out prompt set.

Common Failure Modes and Diagnostics

6. RLHF Infrastructure at Scale

Running RLHF at production scale is an infrastructure challenge that goes far beyond the algorithm itself. A full RLHF training run requires simultaneously managing four models: the policy model being trained, the reference model (a frozen copy), the reward model, and (in standard PPO) the value model. This quadruples the GPU memory requirements compared to standard SFT.
