Part VIII: Evaluation & Production
Chapter 30: Observability, Monitoring & MLOps

LLM-Specific Monitoring & Drift Detection

"Your model did not break. It just quietly became a different model when the provider updated their weights last Tuesday."

Sentinel Sentinel, Quietly Drifting AI Agent
Big Picture

LLM applications degrade silently. Unlike traditional software that crashes loudly when something breaks, LLM systems can quietly produce worse outputs without any errors or exceptions. Provider model updates change behavior overnight, embedding models get swapped, user query distributions shift, and prompts accumulate ad-hoc patches that interact in unexpected ways. Building on the observability infrastructure from Section 30.1, this section covers the types of drift unique to LLM systems and how to detect them before users notice the degradation.

Prerequisites

This section builds on the observability material from Section 30.1. Understanding fine-tuning from Section 14.1 and alignment from Section 17.1 helps with understanding evaluation of model adaptation quality.

A monitoring dashboard showing drift metrics, with some gauges in the green zone and others trending toward red
Figure 30.2.1: Drift monitoring keeps watch so you do not wake up to a degraded model. When the gauges start trending red, it is time to investigate before users notice.

1. Types of Drift in LLM Systems

Tip

The single most impactful drift detection measure you can implement today is a nightly cron job that runs 50 golden test prompts against your production endpoint and compares the outputs to a baseline snapshot. If the average similarity score drops below a threshold, alert your on-call engineer. This catches provider model updates within hours instead of weeks.

Drift in LLM applications occurs when the behavior of any component changes over time without intentional modification. Unlike classical ML systems where data drift and concept drift are the primary concerns, LLM systems face several additional drift categories that are unique to the LLM technology stack. Figure 30.2.1 categorizes the three types of drift in LLM systems.

Fun Fact

OpenAI's silent update to GPT-4 in March 2024 caused widespread production failures across companies who had calibrated their prompts to the previous version's quirks. The AI community now treats "same model name, different weights" as a known hazard, much like expired milk with a future date on the carton.

LLM System Drift Prompt Drift Accumulating patches Inconsistent formatting Context window pressure Unversioned changes Template variable creep You control this Provider Drift Silent model updates Deprecation of versions Safety filter changes Pricing changes Rate limit adjustments Provider controls this Embedding Drift Embedding model update Stale document index Query distribution shift Knowledge base growth Semantic gap widening Data evolution drives this
Figure 30.2.2: Three categories of drift in LLM systems, each with different root causes and detection strategies.
Key Insight

LLM drift has more attack surfaces than classical ML drift. In classical ML, drift typically means the input data distribution shifted. In LLM systems, drift can come from at least four independent sources: the model itself (silent provider updates), the prompts (incremental edits by teammates), the retrieved knowledge (new documents in the RAG corpus), and the user population (different types of queries over time). Each source requires its own monitoring strategy. The most dangerous form is model drift from provider updates, because it happens without any action on your part: the evaluation framework from Section 29.4 should run continuously, not just at deployment time.

To detect drift quantitatively, two statistical measures are commonly used. Both compare a reference distribution (collected during a healthy baseline period) against the current observed distribution:

Distribution Drift Detection Metrics.

Two common measures for detecting distribution shift between a reference distribution P and a current distribution Q:

\operatorname{KL} Divergence.

$$D_{\operatorname{KL}}(P || Q) = \sum _{i} P(i) \cdot \log(P(i) / Q(i))$$

KL divergence is asymmetric and unbounded; values above 0.1 typically warrant investigation.

Population Stability Index (PSI).

$$PSI = \sum _{i} (P(i) - Q(i)) \cdot \log(P(i) / Q(i))$$

PSI is symmetric and easier to threshold: PSI < 0.1 indicates negligible drift, 0.1 to 0.25 indicates moderate drift (monitor), and PSI > 0.25 indicates significant drift (investigate or retrain).

2. Prompt Drift Detection

Prompt drift occurs when the system prompt or prompt templates gradually change over time through incremental edits, accumulating special-case instructions, or growing context. Each individual change may seem harmless, but the cumulative effect can significantly alter model behavior. Without version control and monitoring, these changes are invisible. Code Fragment 30.2.2 below puts this into practice.


# Define PromptDriftMonitor; implement __init__, register_template, check_template
# Key operations: prompt construction
import hashlib
import json
from datetime import datetime, timezone
from difflib import unified_diff

class PromptDriftMonitor:
 """Monitor prompt templates for unauthorized or untracked changes."""

 def __init__(self):
 self.known_hashes: dict[str, str] = {} # template_name -> hash
 self.change_log: list[dict] = []

 def register_template(self, name: str, template: str):
 """Register a prompt template and its hash."""
 h = hashlib.sha256(template.encode()).hexdigest()[:16]
 self.known_hashes[name] = h
 return h

 def check_template(self, name: str, current_template: str) -> dict:
 """Check if a template has drifted from its registered version."""
 current_hash = hashlib.sha256(current_template.encode()).hexdigest()[:16]
 registered_hash = self.known_hashes.get(name)

 if registered_hash is None:
 return {"status": "unregistered", "name": name}

 drifted = current_hash != registered_hash
 result = {
 "name": name,
 "drifted": drifted,
 "registered_hash": registered_hash,
 "current_hash": current_hash,
 "checked_at": datetime.now(timezone.utc).isoformat(),
 }

 if drifted:
 self.change_log.append(result)

 return result

 def compute_template_metrics(self, template: str) -> dict:
 """Compute structural metrics for a prompt template."""
 return {
 "char_count": len(template),
 "word_count": len(template.split()),
 "line_count": template.count("\n") + 1,
 "variable_count": template.count("{"),
 "instruction_density": round(
 sum(1 for w in template.lower().split()
 if w in {"must", "always", "never", "should", "ensure"})
 / max(len(template.split()), 1), 4
 ),
 }
Recommended action: pin_model_version
Code Fragment 30.2.1: Define PromptDriftMonitor; implement __init__, register_template, check_template
Library Shortcut: Langfuse for Prompt Management

The same result in 5 lines with Langfuse prompt management, which versions and monitors prompts automatically:


# pip install langfuse
from langfuse import Langfuse

langfuse = Langfuse()
# Fetch a versioned, tracked prompt from Langfuse
prompt = langfuse.get_prompt("rag-system-prompt", version=3)
compiled = prompt.compile(context=context, query=query)
# Langfuse tracks which prompt version was used in each trace,
# enabling drift detection and A/B comparison in the dashboard
Code Fragment 30.2.2: pip install langfuse
Provider Updates Break Applications

API providers (OpenAI, Anthropic, Google) regularly update their models, sometimes changing behavior significantly while keeping the same model name. A prompt that worked perfectly with gpt-4o-2024-05-13 may produce different results with gpt-4o-2024-08-06. Always pin model versions in production, monitor the system_fingerprint field in responses, and run your evaluation suite whenever a new version is released before adopting it.

3. Embedding Drift in RAG Systems

Embedding drift is particularly insidious in RAG systems (Chapter 20) because it can happen without any code changes. The most common cause is updating the embedding model (Chapter 19) (or the provider silently updating it), which changes the vector space. Documents embedded with the old model and queries embedded with the new model will have mismatched representations, degrading retrieval quality. Code Fragment 30.2.2 below puts this into practice.


# Define EmbeddingDriftDetector; implement __init__, _compute_embeddings, _pairwise_similarities
# Key operations: embedding lookup
import numpy as np
from typing import Callable

class EmbeddingDriftDetector:
 """Detect drift in embedding model behavior using reference queries."""

 def __init__(self, embed_fn: Callable, reference_queries: list[str]):
 self.embed_fn = embed_fn
 self.reference_queries = reference_queries
 # Store baseline embeddings
 self.baseline_embeddings = self._compute_embeddings(reference_queries)
 self.baseline_pairwise = self._pairwise_similarities(self.baseline_embeddings)

 def _compute_embeddings(self, texts: list[str]) -> np.ndarray:
 return np.array([self.embed_fn(t) for t in texts])

 def _pairwise_similarities(self, embeddings: np.ndarray) -> np.ndarray:
 # Cosine similarity matrix
 norms = np.linalg.norm(embeddings, axis=1, keepdims=True)
 normalized = embeddings / norms
 return normalized @ normalized.T

 def check_drift(self, threshold: float = 0.05) -> dict:
 """Re-embed reference queries and compare to baseline.

 Drift is detected when the pairwise similarity structure changes
 beyond the threshold, indicating the embedding model has changed.
 """
 current_embeddings = self._compute_embeddings(self.reference_queries)
 current_pairwise = self._pairwise_similarities(current_embeddings)

 # Compare pairwise similarity matrices
 diff = np.abs(self.baseline_pairwise - current_pairwise)
 mean_diff = float(np.mean(diff))
 max_diff = float(np.max(diff))

 # Also check direct cosine similarity of same-query embeddings
 direct_sims = []
 for b, c in zip(self.baseline_embeddings, current_embeddings):
 sim = np.dot(b, c) / (np.linalg.norm(b) * np.linalg.norm(c))
 direct_sims.append(float(sim))

 return {
 "drift_detected": mean_diff > threshold,
 "mean_pairwise_diff": round(mean_diff, 6),
 "max_pairwise_diff": round(max_diff, 6),
 "mean_direct_similarity": round(np.mean(direct_sims), 4),
 "min_direct_similarity": round(min(direct_sims), 4),
 "recommendation": (
 "Re-index all documents with new embedding model"
 if mean_diff > threshold
 else "No action needed"
 ),
 }
{'current_mean': 0.836, 'recent_mean': 0.836, 'baseline_mean': None, 'below_threshold': False, 'samples': 10}
Code Fragment 30.2.3: Define EmbeddingDriftDetector; implement __init__, _compute_embeddings, _pairwise_similarities

4. Output Quality Monitoring

Output quality monitoring samples production responses and evaluates them against quality criteria, complementing the production engineering practices from Chapter 31. Because you cannot evaluate every response in real time (LLM-based evaluation is too slow and expensive), the typical approach is to sample a fraction of requests, evaluate them asynchronously, and track quality metrics over time on a dashboard. Figure 30.2.3 shows a quality monitoring timeline with a silent degradation event. Code Fragment 30.2.4 below puts this into practice.


# Define QualityWindow; implement add_score, check_degradation
# Key operations: forward pass computation, RAG pipeline, evaluation logic
import random
import time
from collections import deque
from dataclasses import dataclass, field
from typing import Optional

@dataclass
class QualityWindow:
 """Sliding window for tracking quality metrics over time."""
 window_size: int = 100
 scores: deque = field(default_factory=lambda: deque(maxlen=100))
 alert_threshold: float = 0.7
 degradation_threshold: float = 0.05 # alert if mean drops by this much
 baseline_mean: Optional[float] = None

 def add_score(self, score: float):
 self.scores.append(score)
 if self.baseline_mean is None and len(self.scores) >= self.window_size:
 self.baseline_mean = sum(self.scores) / len(self.scores)

 def check_degradation(self) -> dict:
 if len(self.scores) < 10:
 return {"status": "insufficient_data"}

 current_mean = sum(self.scores) / len(self.scores)
 recent_mean = sum(list(self.scores)[-20:]) / min(20, len(self.scores))

 result = {
 "current_mean": round(current_mean, 4),
 "recent_mean": round(recent_mean, 4),
 "baseline_mean": round(self.baseline_mean, 4) if self.baseline_mean else None,
 "below_threshold": recent_mean < self.alert_threshold,
 "samples": len(self.scores),
 }

 if self.baseline_mean:
 drop = self.baseline_mean - recent_mean
 result["drop_from_baseline"] = round(drop, 4)
 result["degradation_alert"] = drop > self.degradation_threshold

 return result

# Usage: add scores from sampled production evaluations
quality_monitor = QualityWindow(window_size=200, alert_threshold=0.75)
# Simulate scored production responses
for score in [0.85, 0.90, 0.78, 0.82, 0.91, 0.73, 0.88, 0.79, 0.84, 0.86]:
 quality_monitor.add_score(score)
print(quality_monitor.check_degradation())
Code Fragment 30.2.4: Define QualityWindow; implement add_score, check_degradation

# Define InterventionAction, DriftReport; implement recommend_action
# Key operations: training loop, embedding lookup, results display
from dataclasses import dataclass
from enum import Enum

class InterventionAction(Enum):
 NONE = "no_action"
 INVESTIGATE = "investigate"
 ROLLBACK_PROMPT = "rollback_prompt"
 PIN_MODEL_VERSION = "pin_model_version"
 REINDEX_EMBEDDINGS = "reindex_embeddings"
 RETRAIN_ADAPTER = "retrain_adapter"

@dataclass
class DriftReport:
 """Aggregated drift report with intervention recommendations."""
 prompt_drifted: bool = False
 provider_changed: bool = False
 embedding_drifted: bool = False
 quality_degraded: bool = False
 quality_drop: float = 0.0

 def recommend_action(self) -> InterventionAction:
 """Determine the appropriate intervention based on drift signals."""
 if self.embedding_drifted:
 return InterventionAction.REINDEX_EMBEDDINGS
 if self.prompt_drifted and self.quality_degraded:
 return InterventionAction.ROLLBACK_PROMPT
 if self.provider_changed and self.quality_degraded:
 return InterventionAction.PIN_MODEL_VERSION
 if self.quality_degraded and self.quality_drop > 0.10:
 return InterventionAction.RETRAIN_ADAPTER
 if self.quality_degraded:
 return InterventionAction.INVESTIGATE
 return InterventionAction.NONE

# Example: generate and act on a drift report
report = DriftReport(
 prompt_drifted=False,
 provider_changed=True,
 quality_degraded=True,
 quality_drop=0.08,
)
action = report.recommend_action()
print(f"Recommended action: {action.value}")
Recommended action: pin_model_version
Code Fragment 30.2.5: Define InterventionAction, DriftReport; implement recommend_action

Types of Drift and Their Detection Strategies

Types of Drift and Their Detection Strategies Comparison
Drift Type Root Cause Detection Method Response
Prompt drift Accumulating template edits Hash comparison, version control Revert to last known good version
Provider version drift Silent model updates by provider system_fingerprint monitoring, eval suite Pin version; run eval before adopting new version
Embedding drift Embedding model change Pairwise similarity stability on reference set Re-index entire document collection
Query distribution drift User behavior changes Topic clustering, query length distribution Update few-shot examples, expand knowledge base
Output quality drift Any of the above Sampled eval scores, user feedback trends Investigate root cause, then apply targeted fix

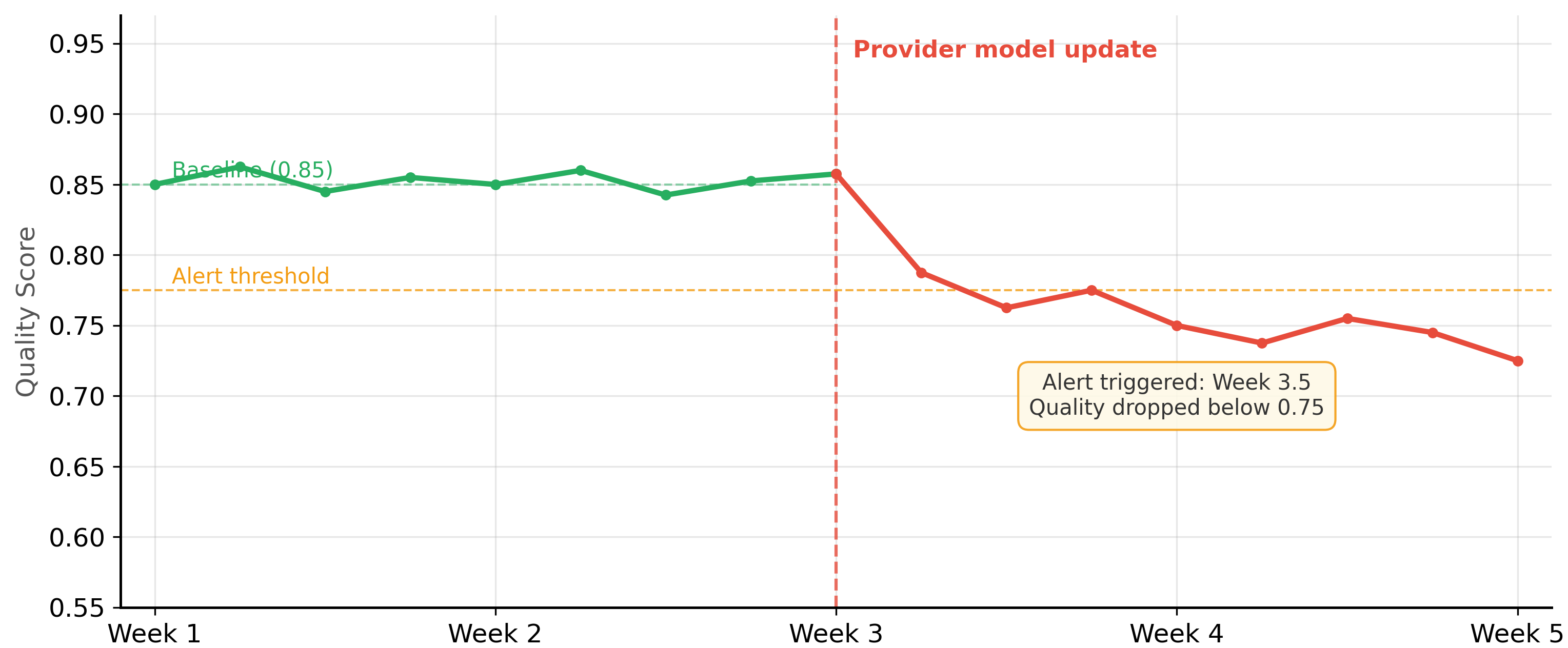

Quality monitoring timeline showing stable performance followed by silent degradation after a provider model update, with an alert threshold crossed at Week 3.5
Figure 30.2.3: Quality monitoring timeline showing a silent degradation caused by a provider model update.

5. Retraining and Intervention Triggers

Key Insight

The best drift detection strategy is a continuous evaluation pipeline that runs your evaluation suite on a sample of production traffic every day. Compare today's scores against the baseline established when the system was last validated. When you detect degradation, correlate it with known changes (prompt updates, provider version changes, data updates) to identify the root cause quickly. Automated intervention triggers should start with conservative actions (investigate, alert) and only escalate to disruptive actions (rollback, reindex) when the evidence is strong.

Self-Check

1. Why is provider version drift particularly dangerous for production LLM applications?

Show Answer
Provider version drift is dangerous because it happens without any changes to your code or configuration. The provider silently updates the model behind the same API endpoint, potentially changing behavior, output format, safety filters, and performance characteristics. Your application may break or degrade without any deployment or code change on your side, making the root cause difficult to identify. This is why pinning model versions and monitoring the system_fingerprint field are essential practices.

2. What happens when an embedding model is updated but the document index is not re-embedded?

Show Answer
Documents in the vector store remain in the old embedding space while new queries are embedded in the new space. Even though both are high-dimensional vectors with the same dimensions, the semantic relationships between them have shifted. Cosine similarity scores between queries and documents become unreliable: previously relevant documents may score low, and irrelevant documents may score high. The only solution is to re-embed and re-index all documents using the new embedding model.

3. How does the pairwise similarity stability method detect embedding drift?

Show Answer
The method works by embedding a fixed set of reference queries and computing the pairwise cosine similarity matrix (how similar each reference query is to every other). This matrix captures the semantic structure of the embedding space. When the same reference queries are re-embedded later, the pairwise similarities should remain stable if the embedding model has not changed. A significant change in the pairwise similarity matrix indicates that the embedding space has shifted, even if individual embeddings look similar in isolation.

4. Why should quality monitoring use sampling rather than evaluating every production response?

Show Answer
Evaluating every production response with an LLM judge would be prohibitively expensive (doubling or tripling API costs), add latency to user-facing requests if done synchronously, and scale poorly with traffic. Sampling a representative fraction (such as 1 to 5% of requests) and evaluating them asynchronously provides sufficient statistical power to detect quality trends while keeping costs manageable. The key is to sample randomly and evaluate enough requests per time window to produce reliable aggregate statistics.

5. Describe a scenario where prompt drift and provider drift interact to cause a subtle failure.

Show Answer
Consider a system prompt that was tuned to produce JSON output using specific formatting instructions that worked well with gpt-4o-2024-05-13. Over time, developers add several special-case instructions to handle edge cases (prompt drift). Then the provider updates to gpt-4o-2024-08-06 (provider drift). The new model interprets the accumulated special-case instructions differently, causing it to occasionally output malformed JSON. Neither the prompt changes nor the model update alone would have caused the failure; it is the interaction of both that produces the bug. This compound drift is why monitoring both dimensions simultaneously is critical.
Real-World Scenario: Detecting Silent Model Drift After a Provider Update

Who: ML operations team at a healthcare information company running a symptom-checking chatbot

Situation: The chatbot used an OpenAI model endpoint without a pinned version. One Monday morning, response quality metrics dropped, but error rates remained at zero and latency was normal.

Problem: The provider had silently updated the model version over the weekend. The chatbot continued to function, but its medical triage accuracy degraded from 94% to 81% on their internal evaluation set. Without proactive monitoring, the team would not have noticed for days.

Dilemma: Pinning to an older model version preserved accuracy but would eventually reach end-of-life. Always using the latest version meant accepting unpredictable quality changes. Neither approach alone was sufficient.

Decision: The team implemented a three-layer drift detection system: model version fingerprinting, continuous evaluation sampling, and embedding stability monitoring.

How: They pinned the model to a dated version (e.g., gpt-4o-2024-08-06) and logged the system fingerprint from each API response. A background job evaluated 50 sampled production queries daily against their golden test set. When a new model version became available, they ran their full evaluation suite before switching. Embedding drift was tracked by computing pairwise cosine similarity on a fixed reference set weekly.

Result: The system now detected model changes within hours instead of days. When the provider released a new version, the team's evaluation suite ran automatically, and the switch was made only after confirming accuracy met their 92% threshold. They never again experienced an undetected quality degradation.

Lesson: Pin model versions, log system fingerprints, and run continuous evaluation against golden test sets; silent degradation is the most dangerous failure mode for LLM applications because it produces no errors to alert on.

Tip: Trace Requests End-to-End

Assign a unique trace ID to every user request and propagate it through all components (retrieval, model calls, post-processing). When something breaks, this ID lets you reconstruct the full execution path in seconds instead of hours.

Key Takeaways
Research Frontier

Open Questions in Drift Detection (2024-2026):

Explore Further: Build a drift detection pipeline that tracks embedding stability on a fixed reference set, then simulate a provider model update to see how quickly your pipeline detects the change.

Exercises

Exercise 30.2.1: Drift Categories Conceptual

Name and define three categories of drift specific to LLM systems. For each, explain why it is harder to detect than traditional ML data drift.

Answer Sketch

Prompt drift: gradual, untracked changes to prompts by multiple team members. Hard to detect because prompts are often stored as strings in code, not in a versioned system. Model drift: the provider updates the model behind the same API endpoint. Hard to detect because there is no notification and behavior changes are subtle. Behavioral drift: the model's output style or accuracy shifts due to any upstream change. Hard to detect because LLM outputs are high-dimensional text, not simple numeric features.

Exercise 30.2.2: Quality Monitoring Metrics Coding

Write a Python function that computes three real-time quality signals from LLM responses: (1) average response length, (2) refusal rate (responses containing "I cannot" or similar phrases), and (3) JSON validity rate (for structured output tasks). Track these over a sliding window of the last 1,000 requests.

Answer Sketch

Use a collections.deque(maxlen=1000) to store recent responses. For each new response, append it and compute: (1) mean of len(r) for all responses in the deque, (2) count responses matching a regex for refusal patterns divided by total, (3) count responses where json.loads(r) succeeds divided by total. Emit these as metrics to your monitoring system. Alert when any metric deviates more than 2 standard deviations from the 7-day baseline.

Exercise 30.2.3: Silent Degradation Scenario Analysis

Your LLM chatbot's user satisfaction score dropped from 4.2 to 3.8 over two weeks, but no code changes were made. Walk through a systematic investigation to identify the root cause, including which drift types to check first.

Answer Sketch

Step 1: Check for model drift (did the provider update the model?). Compare canary test scores before and after. Step 2: Check for data drift (did user query patterns change?). Analyze embedding distributions of recent vs. baseline queries. Step 3: Check for prompt drift (did anyone edit the system prompt?). Review prompt version history. Step 4: Check for knowledge base drift (were documents added/removed?). Review retrieval quality metrics. Step 5: Check external dependencies (did any API the agent calls change?). The most common cause is an unannounced provider model update.

Exercise 30.2.4: Alerting Thresholds Conceptual

Explain the tradeoff between alert sensitivity and alert fatigue in LLM monitoring. How would you set thresholds for latency, error rate, and quality score alerts? What is the role of anomaly detection?

Answer Sketch

Too sensitive: alerts fire on normal variation, team ignores them. Too lenient: real issues go undetected. Approach: use rolling baselines rather than fixed thresholds. Alert on latency when p99 exceeds 2x the 7-day rolling average. Alert on error rate when it exceeds the baseline plus 3 standard deviations. Alert on quality score when the daily average drops below the 7-day rolling average minus 2 standard deviations. Anomaly detection (e.g., isolation forest on metric time series) adapts to changing baselines automatically and reduces false positives.

Exercise 30.2.5: Monitoring Dashboard Coding

Design and sketch the layout of an LLM monitoring dashboard with panels for: model performance (canary scores), user experience (latency, satisfaction), cost tracking (daily spend, cost per query), and drift indicators (embedding distribution shift). Explain which panels should trigger pages vs. tickets.

Answer Sketch

Top row: canary test pass rate (page if below 85%), user satisfaction trend (ticket if drops 10%). Middle row: p50/p99 latency (page if p99 exceeds SLA), error rate (page if above 2%), request volume (context only). Bottom row: daily cost with budget line (ticket if 130% of budget), cost per query trend, embedding drift score (ticket if above threshold). Use red/yellow/green color coding. Pages go to on-call for immediate issues; tickets are queued for next business day investigation.

What Comes Next

In the next section, Section 30.3: LLM Experiment Reproducibility, we address experiment reproducibility, the practices that make LLM research and development results trustworthy and repeatable.

Bibliography

Model Drift

Chen, L., Zaharia, M., & Zou, J. (2024). "How Is ChatGPT's Behavior Changing over Time?" arXiv:2307.09009

Demonstrates that ChatGPT and GPT-4 performance on specific tasks changed significantly between API versions, with some tasks degrading substantially. Provides the methodology for tracking model behavior drift over time. Essential reading for anyone relying on third-party LLM APIs in production.
Model Drift
Provider Documentation

OpenAI. (2024). "Model Deprecation and Version Pinning." https://platform.openai.com/docs/deprecations

Official documentation on how OpenAI handles model version lifecycle, deprecation timelines, and migration paths. Covers the practical implications of model updates for production systems. Required reference for any team using OpenAI models in production.
Provider Documentation
ML Engineering

Sculley, D., Holt, G., Golovin, D., et al. (2015). "Hidden Technical Debt in Machine Learning Systems." NeurIPS 2015

The foundational paper on technical debt in ML systems, introducing concepts like data dependency, feedback loops, and configuration debt that apply directly to LLM applications. While predating the LLM era, its taxonomy of failure modes remains remarkably relevant. Important background for engineering teams managing LLM systems.
ML Engineering
Drift Detection

Rabanser, S., Gunnemann, S., & Lipton, Z.C. (2019). "Failing Loudly: An Empirical Study of Methods for Detecting Dataset Shift." arXiv:1810.11953

Compares statistical methods for detecting distribution shift in high-dimensional data, evaluating approaches from simple divergence measures to kernel-based tests. Provides practical guidance on which tests work in which scenarios. Useful for building drift detection pipelines for LLM input and output distributions.
Drift Detection
Monitoring Tools

Langfuse. (2024). "Production Monitoring for LLM Applications." https://langfuse.com/docs/scores/model-based-evals

Covers Langfuse's approach to continuous evaluation in production using model-based scoring, with examples of monitoring faithfulness, relevance, and toxicity over time. Provides practical integration patterns. Recommended for teams implementing production quality monitoring.
Monitoring Tools
