Image-to-3D: Stable Zero123 & Multi-View Diffusion

"DreamFusion needed an hour. Zero123 needed a model. Now we need both."

Pixel, Image-To-3D AI Agent

23.3.1 The Zero-1-to-3 Trick

Zero-1-to-3 by Liu et al. (2023) showed that you can teach Stable Diffusion to perform novel view synthesis with surprisingly little surgery. The recipe is:

1. Start from a pretrained Stable Diffusion 1.5 checkpoint.
2. Fine-tune on the Objaverse-LVIS dataset where each example is (input view, target view, relative camera pose).
3. Condition the diffusion U-Net on the relative camera pose (three numbers: $\Delta\text{elevation}$, $\Delta\text{azimuth}$, $\Delta\text{radius}$) via a small MLP that projects into the cross-attention space alongside the CLIP image embedding.

The model learns a strong, generic prior over object-centric novel views. Given a single image of a teddy bear and a target pose, it produces a plausible image of the teddy bear from that pose. The crucial limitation: each call is independent. Sampling two different target poses gives two views that may not be mutually consistent (the teddy's bow appears in different sizes or shifts color).

23.3.2 Stable Zero123: The Stability AI Successor

Stability AI's Stable Zero123 (released December 2023) improved Zero-1-to-3 along three axes:

• Better filtering of Objaverse: removed low-quality assets (CAD-like flat shading, watermarked previews, malformed UVs), keeping ~80k high-quality objects out of the ~800k in Objaverse.
• Elevation conditioning fix: original Zero-1-to-3 used arbitrary camera elevations; Stable Zero123 normalizes elevation to a canonical reference frame, which substantially reduces the "tilted floor" artifact.
• SDXL backbone for the larger Stable Zero123 XL variant: more capacity, sharper outputs at 768x768.

# Stable Zero123 via the diffusers library. Generates a single
# novel view from an input image at a target relative pose.
from diffusers import DiffusionPipeline
from PIL import Image
import torch

pipe = DiffusionPipeline.from_pretrained(
    "stabilityai/stable-zero123",
    custom_pipeline="stable_zero123",
    torch_dtype=torch.float16,
).to("cuda")

input_image = Image.open("chair.png").convert("RGBA")
# Camera deltas in degrees. (0, 0, 0) is the input view.
elevation = 10.0      # positive = look down
azimuth = 90.0        # orbit to the right
radius = 0.0          # keep the same distance

novel_view = pipe(
    image=input_image,
    elevation=elevation,
    azimuth=azimuth,
    radius=radius,
    num_inference_steps=50,
    guidance_scale=3.0,
).images[0]
novel_view.save("chair_side.png")

23.3.3 The Multi-View Consistency Problem

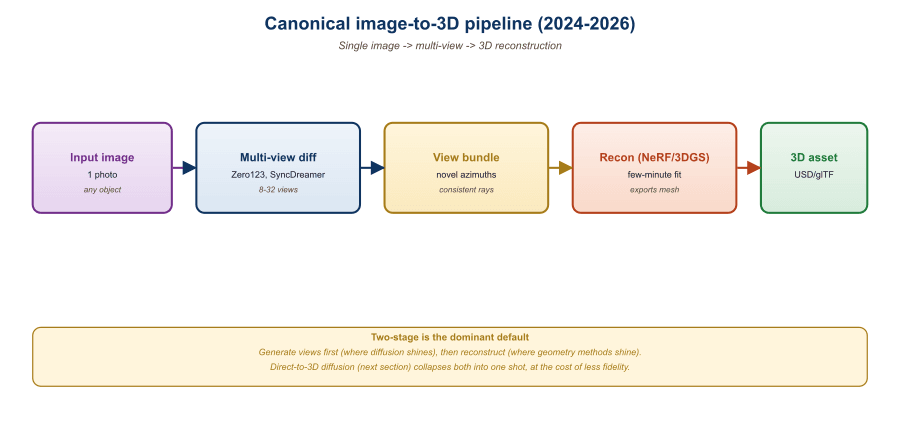

Sampling four poses independently and lifting them with 3DGS produces a famous failure mode: the front of the chair looks fine, the back looks fine, the seam where they meet is a smear. The fix is joint sampling: generate all $N$ views in a single diffusion run with cross-view attention. MVDream (Shi et al., 2024) and Zero123++ (Shi et al., 2023) were the first widely-used joint samplers.

MVDream extends the SD U-Net so that the attention layers also attend across views. Mathematically, the cross-view attention at layer $\ell$ uses keys and values pooled across all $N$ views being denoised in parallel:

$$ \text{Attn}_\ell(Q^{(v)}, K^{(1..N)}, V^{(1..N)}) $$

This forces the diffusion process to maintain global consistency: a stripe on the chair's back is visible (in mirror image) from the front view, and the joint attention propagates that constraint through every denoising step. Empirically, MVDream produces 4 to 8 views that lift cleanly to a 3DGS scene with minimal seam artifacts.

23.3.4 Lifting with Score Distillation Sampling (SDS)

Even with consistent multi-view samples, you still need to produce a 3D representation. DreamFusion (Poole et al., 2023) introduced Score Distillation Sampling (SDS), the loss function that bridges 2D diffusion priors with 3D optimization:

$$ \nabla_\theta \mathcal{L}_{\text{SDS}} = \mathbb{E}_{t,\epsilon}\!\left[ w(t)\,\big(\epsilon_\phi(z_t; y, t) - \epsilon\big)\, \frac{\partial z}{\partial \theta} \right] $$

Here $\theta$ are the 3DGS parameters (or NeRF MLP weights), $z$ is the rendered image at a random camera, $z_t$ is its noised version at diffusion timestep $t$, and $\epsilon_\phi$ is the pretrained diffusion model. The expression says: render the 3D scene from a random view, noise the render, ask the diffusion model "what noise was that?", and backpropagate the difference into the 3D parameters. Over thousands of iterations, this pulls the 3D scene toward something that looks plausible to the 2D diffusion model from every angle.

SDS has known pathologies: it produces over-saturated colors, Janus-face artifacts (two-faced animals), and slow convergence. Three remedies dominate 2024-2026 practice:

• Variational SDS (VSD) from ProlificDreamer reduces over-saturation by treating the rendered view distribution as a Gaussian rather than a delta.
• LRM-style amortization trains a feed-forward network to predict the 3D representation in one shot from multi-view diffusion outputs, skipping SDS entirely.
• Joint multi-view + SDS, as in DreamGaussian (Tang et al., 2024), uses MVDream outputs as direct supervision for the first 100 to 500 steps, then continues with SDS for fine details. DreamGaussian produces a textured mesh from a single image in ~2 minutes on an A100.

23.3.5 The Large Reconstruction Model Pivot

By mid-2024, the field largely abandoned per-object SDS optimization in favor of feed-forward Large Reconstruction Models (LRMs). The bet: if Stable Diffusion can amortize text-to-image into a single forward pass, an analogous transformer can amortize image-to-3D. The LRM by Hong et al. (2024) trains a transformer encoder-decoder on Objaverse to map a single image to triplane NeRF features, achieving high-quality reconstruction in 300 ms per object.

InstantMesh (Xu et al., 2024) layered an SDF-based mesh extractor on top, producing watertight meshes in ~10 seconds. SF3D (Stable Fast 3D, Stability AI 2024) produced UV-unwrapped, PBR-shaded meshes in ~500 ms.

The next leap, Trellis (covered in Section 23.4), skips multi-view rendering entirely: the model diffuses a structured 3D latent that can be decoded into a Gaussian splat, NeRF, or mesh.

23.3.6 Failure Modes and the Objaverse Domain Gap

Every model in this section was trained on Objaverse, a dataset of artist-created 3D assets dominated by single isolated objects. When the input strays from that distribution, the failure modes are predictable and worth memorizing:

• Scenes versus objects: Zero123-family models collapse on full scenes (a kitchen, a street). For scene-scale image-to-3D, look at MVDiffusion or BlockFusion instead.
• Humans: generic models produce melted faces. Use human-specific pipelines (Magic123, TeCH, SiTH) or condition on a parametric body model.
• Reflective and transparent surfaces: the underlying diffusion model never learned to predict consistent reflections across views, so you get hallucinated geometry where the glass should be.
• Top-down or unusual viewpoints: training data is heavily front-3/4 view biased; satellite and overhead inputs trigger out-of-distribution behavior.
