Direct 3D Diffusion: Trellis & Structured Latents

"Stop rendering 2D shadows of 3D things. Diffuse the 3D thing."

Pixel, Trellis-Trained AI Agent

23.4.1 The Case for Native 3D Latents

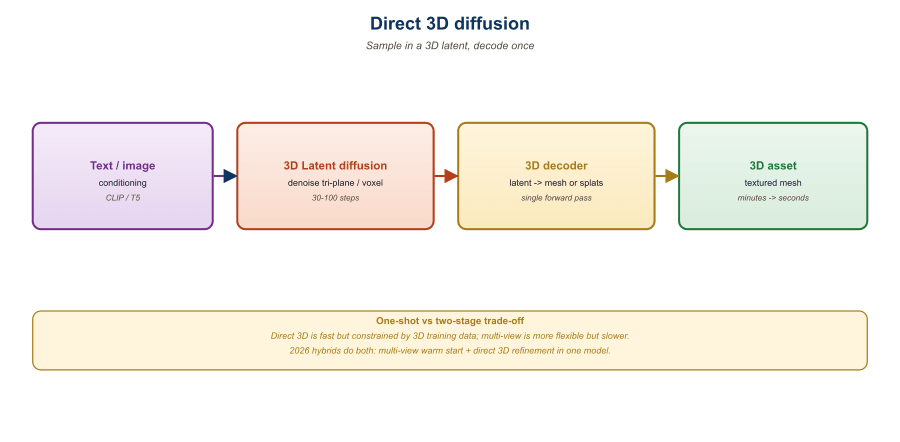

The deep reason direct 3D diffusion works is the same as the deep reason latent diffusion (Section 31.1) works for images: most of the bits in a raw 3D representation are redundant. A 3D Gaussian splat with one million Gaussians takes ~250 MB raw, but a learned encoder can compress most objects to a few tens of thousands of floats with no perceptual loss. Once you have such a 3D autoencoder, you can train a latent diffusion model that operates on the compressed representation. Inference is a single (latent) diffusion run plus a decoder pass, no multi-view rendering required.

The challenges are 3D-specific:

• Choice of representation: occupancy grid, triplane, sparse voxel, or point cloud. Each has different memory and inductive bias.
• Variable-shape inputs: meshes have different vertex counts, point clouds have different point counts. The latent has to be regular.
• Decoder versatility: production users want both Gaussian splats (for AR) and meshes (for downstream DCC tools like Blender or Unreal). The decoder must support both.

23.4.2 Trellis: Structured 3D Latents (Microsoft Research, 2024)

Trellis tackles all three challenges with a structured latent design. Each 3D object is encoded as a sparse voxel grid of feature vectors at multi-scale resolution. Empty voxels are dropped (sparsity); non-empty voxels carry a high-dimensional feature. A transformer-based decoder maps these features to whatever output representation you need.

The training stack has three components:

1. 3D VAE: encodes an object as a sparse latent voxel grid (typically 64³ sparse cells with ~1k non-empty cells per object). The encoder takes posed multi-view renders as input; the decoder produces either Gaussians, radiance fields, or signed distance fields for mesh extraction.
2. Sparse 3D diffusion transformer (DiT-3D): a diffusion model with sparse 3D attention that operates on the structured voxel latents. Trained on the full Objaverse-XL + curated Bemis collection (~500k objects).
3. Multi-decoder heads: independent decoders for Gaussian splat, radiance field, and SDF outputs. All share the same latent backbone.

# Trellis inference via the released pipeline (Microsoft/TRELLIS).
# A single image yields three different 3D representations.
from trellis.pipelines import TrellisImageTo3DPipeline
from PIL import Image

pipe = TrellisImageTo3DPipeline.from_pretrained(
    "JeffreyXiang/TRELLIS-image-large"
)
pipe.cuda()

image = Image.open("sneaker.png").convert("RGBA")
outputs = pipe.run(
    image,
    seed=42,
    formats=["gaussian", "radiance_field", "mesh"],
    sparse_structure_sampler_params={
        "steps": 12,
        "cfg_strength": 7.5,
    },
    slat_sampler_params={
        "steps": 12,
        "cfg_strength": 3.0,
    },
)

# Three representations from one inference run
outputs["gaussian"][0].save_ply("sneaker.ply")
outputs["mesh"][0].export("sneaker.glb")
# Radiance field can be rendered with the bundled viewer

23.4.3 GaussianAnything: Latent Gaussian Diffusion (2024)

GaussianAnything (Lan et al., 2024) takes a different cut. Instead of voxel features, the latent is a fixed-size set of Gaussian primitives: 4096 Gaussians whose parameters are themselves diffused. The encoder takes multi-view renders and predicts a canonical 4096-Gaussian latent; the diffusion model learns the distribution over these latents.

The advantage is that the decoder is trivial (just unpack the Gaussians). The disadvantage is that 4096 Gaussians is too few for fine details; GaussianAnything ships an optional upsampling stage that produces ~50k Gaussians from the latent set.

23.4.4 Latent NeRF and the Triplane Line

The other major line is triplane-latent diffusion. EG3D (Chan et al., 2022) introduced the triplane representation: three orthogonal 2D feature planes (XY, XZ, YZ) whose values can be looked up at any 3D point via trilinear interpolation. Diffusing in triplane space gives you a 2D-friendly latent (three 256x256x32 grids) that decodes to a 3D NeRF.

• SSDNeRF (Chen et al., 2024) trains a single-stage encoder-decoder that diffuses triplanes.
• LN3Diff (Lan et al., 2024) adds a hierarchical structure to triplane diffusion, enabling text-to-3D and image-to-3D from the same backbone.
• 3DTopia (Hong et al., 2024) cascades a triplane diffusion stage with an SDS refinement stage, balancing speed and quality.

23.4.5 Text Conditioning and Style Control

Trellis and LN3Diff both support text conditioning through cross-attention to a frozen text encoder (T5-XXL in Trellis, CLIP in LN3Diff). The pattern is identical to text-to-image diffusion: text tokens become keys and values, the diffusion latent becomes queries. Text-to-3D quality has lagged image-to-3D throughout 2024 to 2025; the open problem is that 3D training corpora are perhaps 1000x smaller than text-image pairs and far less diverse, so the model has trouble with compositional prompts.

Style and material control remain underdeveloped. The current pattern is to generate geometry with Trellis or similar, then re-texture using a 2D diffusion model (e.g., Paint3D, TextureDreamer) that paints a UV-unwrapped mesh. Section 23.5 covers the related problem of scene relighting.

23.4.6 Where the Field Is Heading (2025 to 2026)

Three trends define the next 18 months:

1. Scaling laws for 3D: early evidence (Trellis vs. its predecessors) suggests power-law improvements with both data and parameters, mirroring Chapter 6's text scaling laws. Expect 10B-parameter 3D diffusion models by 2026.
2. Native rectified flow: like SD3 and Flux, the 3D diffusion world is moving from DDPM training to rectified flow / flow matching for sharper outputs at fewer sampling steps.
3. Scene-scale generation: Trellis-style models are object-scale. Scene-scale equivalents (BlockFusion, SceneDreamer-2) are early but improving rapidly; expect a unified scene-and-object model within the year.
