1. Why GPU Architecture Matters

Here is a number that should surprise you: a modern GPU can perform 1,000 trillion floating-point operations per second, but it can only read about 3 trillion bytes from its main memory in that same second. The math does not lie: for many operations, the GPU finishes computing before the data even arrives. A Transformer's theoretical FLOP count tells only half the story. Two implementations with identical FLOP counts can differ by 10x in wall-clock time depending on how well they utilize the GPU's memory hierarchy. Understanding GPU architecture is not optional for anyone who wants to train or serve LLMs efficiently. This section provides the mental model you need to reason about performance bottlenecks and understand optimizations like FlashAttention.

2. GPU Architecture Overview

2.1 Streaming Multiprocessors (SMs)

A GPU is organized as an array of Streaming Multiprocessors (SMs). Each SM contains:

• CUDA cores: Scalar arithmetic units for FP32/FP64/INT operations. An A100 has 6912 CUDA cores across 108 SMs.
• Tensor Cores: Specialized matrix multiply-accumulate units that process small matrix tiles (e.g., 16x16x16) in a single cycle. They provide the bulk of the compute for matrix multiplications in Transformers.
• Shared Memory / L1 Cache: Fast, programmer-controlled on-chip memory (up to 228 KB per SM on H100). This is the key resource for kernel optimization.
• Register File: The fastest storage, private to each thread. 256 KB per SM.
• Warp Schedulers: Each SM schedules 32-thread groups called "warps" in a round-robin fashion, hiding memory latency by switching between warps.

2.2 Memory Hierarchy

Figure 4.4.2: GPU memory hierarchy. Each level is faster but smaller than the one below. The key optimization challenge is keeping data in the fast upper levels.

The bandwidth gap between shared memory (~19 TB/s) and HBM (~3.35 TB/s on H100) is roughly 6x. The gap between registers and HBM is even larger. This is why memory access patterns dominate GPU performance. An operation that reads the same data from HBM three times (like naive attention) can be 3x slower than one that reads it once and keeps it in shared memory (FlashAttention).

3. Compute-Bound vs. Memory-Bound Operations

3.1 The Roofline Model

The roofline model characterizes each operation by its arithmetic intensity: the ratio of FLOPs to bytes transferred from memory. If an operation does many FLOPs per byte loaded, it is compute-bound (limited by the number of arithmetic units). If it does few FLOPs per byte, it is memory-bound (limited by memory bandwidth).

4. The FlashAttention Algorithm

FlashAttention is the single most important GPU optimization for Transformers. It computes exact standard attention while reducing HBM reads/writes from O($T^{2}$) to O($T^{2}$d/M), where M is the size of on-chip SRAM. For typical values, this is a 5 to 10x reduction in memory traffic.

4.1 The Problem with Naive Attention

The standard attention implementation performs these steps, each reading from and writing to HBM:

1. Compute S = QKT / √d, write S to HBM. Size: O(T²).
2. Read S from HBM, apply mask, compute P = softmax(S), write P to HBM. Size: O(T²).
3. Apply dropout to P, write back to HBM.
4. Read P from HBM, compute O = PV, write O to HBM.

The T × T matrices S and P are the bottleneck. For T=4096, d=128, each matrix is 64 MB in FP32 per head per batch element. With 32 heads and batch size 4, that is 8 GB just for the intermediate attention matrices.

4.2 The Tiling Approach

FlashAttention processes the attention computation in tiles. Instead of computing the full T × T attention matrix at once, it processes blocks of size $B_{r}$ × $B_{c}$ that fit in SRAM. The challenge is computing the softmax correctly when you only see part of each row at a time.

Online Softmax

The critical algorithmic trick is online softmax: computing the softmax incrementally as new blocks arrive. For a row of attention scores being computed in blocks, the algorithm maintains running statistics (the current maximum and the running sum of exponentials) and rescales previous partial results as new maxima are discovered: Code Fragment 4.4.1 below puts this into practice.

# Pseudocode: Online softmax for FlashAttention
# Processing one row of the attention matrix in blocks

max_so_far = -infinity
sum_exp = 0
output_accumulator = zeros(d_v)

for each block j of keys/values:
 # Compute attention scores for this block
 scores_j = query @ keys_block_j.T / sqrt(d_k)

 # Update running max
 new_max = max(max_so_far, max(scores_j))

 # Rescale previous accumulator with correction factor
 correction = exp(max_so_far - new_max)
 sum_exp = sum_exp * correction + sum(exp(scores_j - new_max))
 output_accumulator = output_accumulator * correction + exp(scores_j - new_max) @ values_block_j

 max_so_far = new_max

# Final normalization
output = output_accumulator / sum_exp

Input: Q, K, V matrices in HBM; tile sizes Br, Bc fitting in SRAM
Output: O = softmax(QKT / √dk) V, written to HBM

// Partition Q into T/Br row blocks, K and V into T/Bc column blocks

for each Q block Qi (rows i*Br to (i+1)*Br):
 Load Qi from HBM to SRAM
 Initialize: Oi = 0, li = 0, mi = −∞
 // l = running sum of exponentials, m = running row-wise max

 for each K,V block (Kj, Vj):
 Load Kj, Vj from HBM to SRAM
 Sij = Qi KjT / √dk // computed in SRAM
 mnew = max(mi, rowmax(Sij))
 Pij = exp(Sij − mnew)
 // Rescale previous accumulator for updated max
 α = exp(mi − mnew)
 li = α ⋅ li + rowsum(Pij)
 Oi = α ⋅ Oi + Pij Vj
 mi = mnew

 Oi = Oi / li // final normalization
 Write Oi to HBM

return O


This is numerically equivalent to computing the full softmax but requires only O(B) SRAM at any point, rather than the full O(T) row. The correction factor ensures that as we discover larger values, all previous exponentials are rescaled consistently.

# Triton fused softmax kernel: compute softmax in a single GPU pass
# without materializing the full attention matrix in HBM.

@triton.jit
def softmax_kernel(
 output_ptr, input_ptr,
 input_row_stride, output_row_stride,
 n_cols,
 BLOCK_SIZE: tl.constexpr,
):
 """Fused softmax: one kernel, one pass through HBM per row."""
 # Each program handles one row
 row_idx = tl.program_id(0)
 row_start_ptr = input_ptr + row_idx * input_row_stride

 # Load the row into SRAM
 col_offsets = tl.arange(0, BLOCK_SIZE)
 mask = col_offsets < n_cols
 row = tl.load(row_start_ptr + col_offsets, mask=mask, other=float('-inf'))

 # Compute softmax entirely in SRAM
 # Step 1: Subtract max for numerical stability
 row_max = tl.max(row, axis=0)
 row = row - row_max

 # Step 2: Exponentiate
 numerator = tl.exp(row)

 # Step 3: Normalize
 denominator = tl.sum(numerator, axis=0)
 softmax_output = numerator / denominator

 # Write back to HBM
 output_row_start_ptr = output_ptr + row_idx * output_row_stride
 tl.store(output_row_start_ptr + col_offsets, softmax_output, mask=mask)

def fused_softmax(x):
 """Apply softmax to each row of x using a fused Triton kernel."""
 n_rows, n_cols = x.shape
 # BLOCK_SIZE must be a power of 2 >= n_cols
 BLOCK_SIZE = triton.next_power_of_2(n_cols)

 output = torch.empty_like(x)
 softmax_kernel[(n_rows,)](
 output, x,
 x.stride(0), output.stride(0),
 n_cols,
 BLOCK_SIZE=BLOCK_SIZE,
 )
 return output

The key insight: Q, K, V are each read from HBM once per outer loop iteration, and the T × T attention matrix is never materialized in HBM. Total HBM access is O($T^{2}$d²/M) instead of O($T^{2}$ + Td), where M is SRAM size. This is where the 2 to 4x speedup comes from.

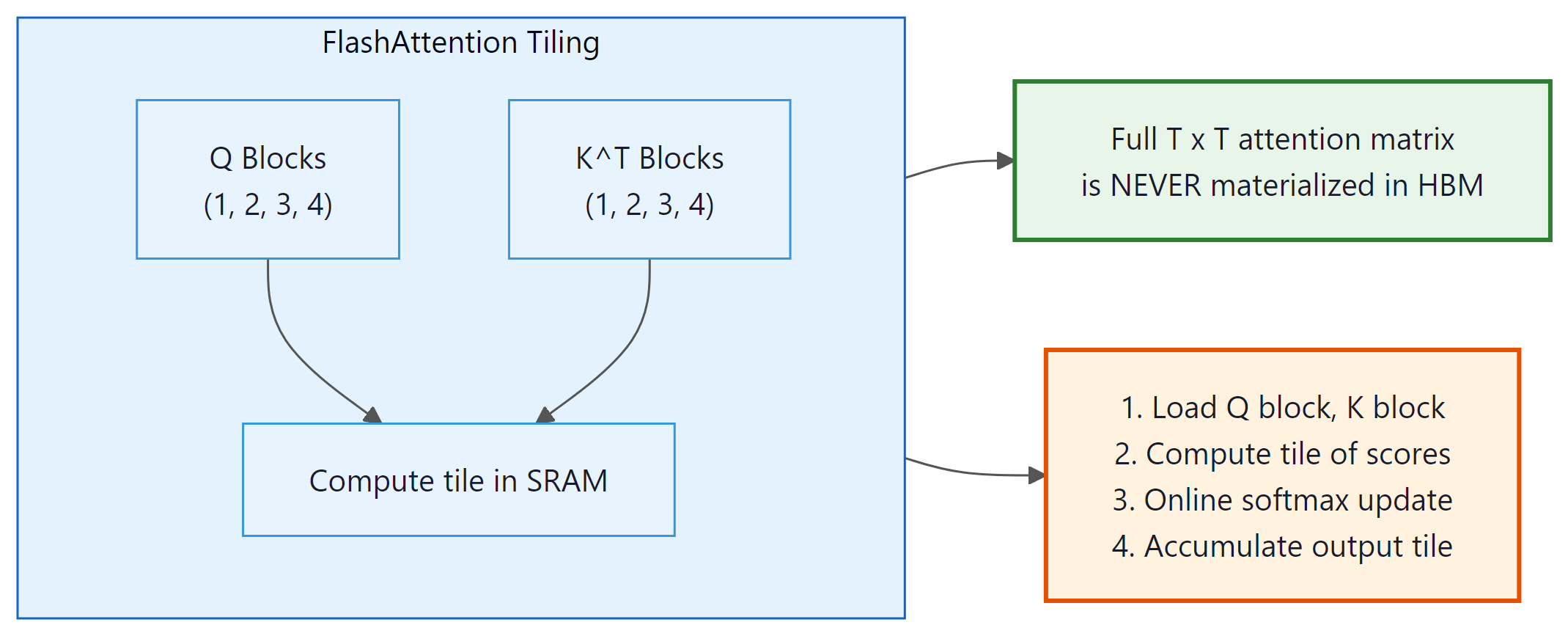

Figure 4.4.3: FlashAttention tiles the attention computation into blocks that fit in on-chip SRAM. The full T x T attention matrix is never materialized in HBM.

5. Introduction to Triton

Writing GPU kernels in CUDA requires managing threads, warps, shared memory, synchronization, and memory coalescing at a low level. Triton (developed at OpenAI) provides a higher-level abstraction: you write kernels in a Python-like language that operates on blocks of data rather than individual threads. Triton handles the complex details of thread mapping, shared memory management, and memory coalescing automatically. Code Fragment 4.4.2 below puts this into practice.

5.1 A Simple Example: Vector Addition

This Triton kernel performs element-wise vector addition, illustrating the block-based programming model.

# implement add_kernel, triton_add
# See inline comments for step-by-step details.

import triton
import triton.language as tl

@triton.jit
def add_kernel(
 x_ptr, y_ptr, output_ptr,
 n_elements,
 BLOCK_SIZE: tl.constexpr,
):
 # Each program instance handles BLOCK_SIZE elements
 pid = tl.program_id(axis=0)
 block_start = pid * BLOCK_SIZE
 offsets = block_start + tl.arange(0, BLOCK_SIZE)

 # Mask to handle the case where n_elements is not a multiple of BLOCK_SIZE
 mask = offsets < n_elements

 # Load, compute, store
 x = tl.load(x_ptr + offsets, mask=mask)
 y = tl.load(y_ptr + offsets, mask=mask)
 output = x + y
 tl.store(output_ptr + offsets, output, mask=mask)

def triton_add(x, y):
 output = torch.empty_like(x)
 n_elements = x.numel()
 BLOCK_SIZE = 1024

 # Launch kernel with enough program instances
 grid = (triton.cdiv(n_elements, BLOCK_SIZE),)
 add_kernel[grid](x, y, output, n_elements, BLOCK_SIZE)
 return output

Notice: no thread management, no shared memory allocation, no warp-level operations. Triton programs are specified in terms of program instances that each process a block of elements. The compiler handles the mapping to GPU hardware.

5.2 Lab: Fused Softmax in Triton

This fused kernel reads each row from HBM exactly once, performs the entire softmax in SRAM, and writes the result back once. The naive PyTorch implementation (torch.softmax) may require multiple reads and writes for the intermediate max and sum computations. On an A100, a fused softmax kernel can be 2 to 4x faster than the PyTorch default for typical Transformer shapes.

6. Key GPU Metrics for LLM Practitioners

7. Practical Considerations

7.1 Mixed Precision Training

Modern LLM training uses mixed precision: forward and backward passes use FP16 or BF16, while the master weights and optimizer states are kept in FP32. BF16 is preferred because it has the same exponent range as FP32 (avoiding overflow) but lower precision (8 vs. 23 mantissa bits). BF16 Tensor Core operations are natively supported on A100 and later GPUs.

7.2 Memory Budgeting

Training a Transformer model requires storing: (1) model parameters, (2) optimizer states (Adam stores momentum and variance, tripling the parameter memory), (3) gradients, and (4) activations (for the backward pass). The dominant cost for large models is often optimizer states. For a 7B parameter model in mixed precision:

• Parameters: 7B × 2 bytes (BF16) = 14 GB
• Optimizer (AdamW): 7B × 4 bytes × 2 states = 56 GB
• Gradients: 7B × 2 bytes = 14 GB
• Activations: Variable, depends on batch size and sequence length
• Total minimum: ~84 GB (before activations)

This is why training a 7B model requires multiple GPUs even when the model parameters alone would fit on a single 80 GB GPU. Techniques like ZeRO (distributed optimizer states), gradient checkpointing (recomputing activations instead of storing them), and offloading help manage this memory pressure. We cover distributed training strategies in Section 6.6 and inference-time memory optimization (including quantization) in Chapter 9.
