1. The Paper That Changed Everything

This is the architecture inside every AI you have ever used. ChatGPT, Claude, Gemini, Llama: they are all Transformers. In June 2017, Vaswani et al. published "Attention Is All You Need," proposing a sequence-to-sequence model that dropped recurrence and convolutions altogether. At its core, the Transformer relies on a single mechanism repeated many times: scaled dot-product attention, combined with simple position-wise feed-forward networks. This section walks through the complete architecture, explaining not just what each component does, but why it exists and how each design choice shapes the flow of information through the network.

The original Transformer is an encoder-decoder model. The encoder reads the entire input sequence in parallel (no sequential bottleneck like an RNN), and the decoder generates the output sequence one token at a time, attending both to the encoder output and to previously generated tokens. While modern LLMs typically use only the decoder half, understanding the full architecture is essential. Many design principles carry over directly.

2. Information Theory: The Language of Learning

Before diving into the Transformer's mechanics, we need the mathematical vocabulary that describes how well a model is learning. Every time you see a training loss curve, a perplexity score, or a KL divergence penalty in RLHF, you are looking at information theory at work. Claude Shannon formalized these ideas in 1948, and they remain the foundation of how we measure, train, and evaluate language models.

2.1 Entropy: Measuring Uncertainty

Entropy quantifies how much uncertainty (or "surprise") a random variable carries. For a discrete random variable X with possible outcomes x and probabilities P(x):

The unit is bits when we use log base 2. Each bit represents one yes/no question needed to determine the outcome.

Example: the coin flip. A fair coin has P(heads) = P(tails) = 0.5:

One bit: you need exactly one yes/no question ("Is it heads?") to determine the result. Now consider a loaded coin with P(heads) = 0.9, P(tails) = 0.1:

Less uncertainty means lower entropy. You already have a strong guess (heads), so less information is needed to pin down the outcome.

2.2 Cross-Entropy: The Loss We Minimize

In practice, we do not know the true distribution P of natural language. Instead, our model defines a learned distribution Q. Cross-entropy measures how many bits the model Q needs to encode data drawn from the true distribution P:

When Q matches P perfectly, cross-entropy equals entropy: H(P, P) = H(P). Any imperfection in Q pushes cross-entropy higher than entropy. The gap between them is the KL divergence (see below).

In LLM training, P is the one-hot distribution over the correct next token, and Q is the model's softmax output. This simplifies cross-entropy to:

If the model assigns probability 0.9 to the correct token, the loss is about 0.15 bits. If it assigns only 0.01, the loss jumps to about 6.64 bits. Small probabilities get magnified dramatically, which is why the model learns quickly from confident mistakes. (The magnification table in Section 4.4 illustrates this effect in detail.)

2.3 Perplexity: An Intuitive Scorecard

Perplexity converts cross-entropy into a more interpretable number:

Perplexity of 100 means the model is, on average, "as confused as if it were choosing uniformly among 100 equally likely options" at every token. Lower is better. A perfect model on English text would have a perplexity equal to 2^H(English), roughly estimated at 20 to 50 depending on the domain.

Historical landmarks help calibrate intuition:

• GPT-2 (2019, 1.5B parameters): perplexity around 30 on standard benchmarks.
• GPT-3 (2020, 175B parameters): perplexity around 20, a significant improvement.
• Modern frontier models: perplexities in the low teens on common benchmarks, though exact numbers depend heavily on the evaluation dataset.

2.4 KL Divergence: Measuring the Gap

Kullback-Leibler divergence measures how much extra cost (in bits) we pay by using the approximate distribution Q instead of the true distribution P:

Three essential properties:

• Non-negative: $D_{\operatorname{KL}}$ ≥ 0, with equality only when P = Q.
• Not symmetric: $D_{\operatorname{KL}}$(P || Q) ≠ $D_{\operatorname{KL}}$(Q || P) in general. The direction matters.
• Decomposes cross-entropy: Cross-entropy = Entropy + KL divergence. Minimizing cross-entropy is equivalent to minimizing KL divergence, since entropy (of the true distribution) is a constant we cannot change.

2.5 Mutual Information (Brief)

Mutual information I(X; Y) measures how much knowing one variable reduces uncertainty about another:

If X and Y are independent, mutual information is zero. If knowing X completely determines Y, mutual information equals H(Y). In the context of LLMs, mutual information appears in probing studies (Chapter 18), where researchers measure how much information about a linguistic property (syntax, semantics) is captured in the model's hidden representations. It also informs information-theoretic evaluation metrics that go beyond simple perplexity. Code Fragment 4.1.1 below puts this into practice.

2.6 Code Example: Computing the Metrics

The following code computes entropy, cross-entropy, and perplexity for a toy probability distribution.

# Entropy, cross-entropy, and perplexity from scratch with NumPy.
# Perplexity = 2^H; lower means the model is less "surprised" by the data.
import numpy as np

# --- Entropy ---
def entropy(probs):
 """H(X) = -sum P(x) log2 P(x), ignoring zero probabilities."""
 probs = np.array(probs, dtype=np.float64)
 mask = probs > 0
 return -np.sum(probs[mask] * np.log2(probs[mask]))

fair_coin = [0.5, 0.5]
loaded_coin = [0.9, 0.1]
print(f"Fair coin entropy: {entropy(fair_coin):.4f} bits") # 1.0000
print(f"Loaded coin entropy: {entropy(loaded_coin):.4f} bits") # 0.4690

# --- Cross-Entropy ---
def cross_entropy(p, q):
 """H(P, Q) = -sum P(x) log2 Q(x)."""
 p, q = np.array(p, dtype=np.float64), np.array(q, dtype=np.float64)
 mask = p > 0
 return -np.sum(p[mask] * np.log2(q[mask]))

# True distribution vs. model prediction
p_true = [0.0, 1.0, 0.0] # correct token is index 1
q_good = [0.05, 0.90, 0.05] # confident model
q_bad = [0.30, 0.40, 0.30] # uncertain model

print(f"\nCross-entropy (good model): {cross_entropy(p_true, q_good):.4f} bits") # 0.1520
print(f"Cross-entropy (bad model): {cross_entropy(p_true, q_bad):.4f} bits") # 1.3219

# --- Perplexity ---
def perplexity(p, q):
 """Perplexity = 2^(cross-entropy)."""
 return 2 ** cross_entropy(p, q)

print(f"\nPerplexity (good model): {perplexity(p_true, q_good):.2f}") # 1.11
print(f"Perplexity (bad model): {perplexity(p_true, q_bad):.2f}") # 2.50

# --- KL Divergence ---
def kl_divergence(p, q):
 """D_KL(P || Q) = sum P(x) log2(P(x) / Q(x))."""
 p, q = np.array(p, dtype=np.float64), np.array(q, dtype=np.float64)
 mask = p > 0
 return np.sum(p[mask] * np.log2(p[mask] / q[mask]))

p_lang = [0.7, 0.2, 0.1]
q_model = [0.5, 0.3, 0.2]
print(f"\nKL divergence D_KL(P||Q): {kl_divergence(p_lang, q_model):.4f} bits")
# Verify: cross-entropy = entropy + KL
ce = cross_entropy(p_lang, q_model)
h = entropy(p_lang)
kl = kl_divergence(p_lang, q_model)
print(f"H(P,Q)={ce:.4f} H(P)={h:.4f} D_KL={kl:.4f} H(P)+D_KL={h+kl:.4f}")

2.7 Visualizing the Relationships

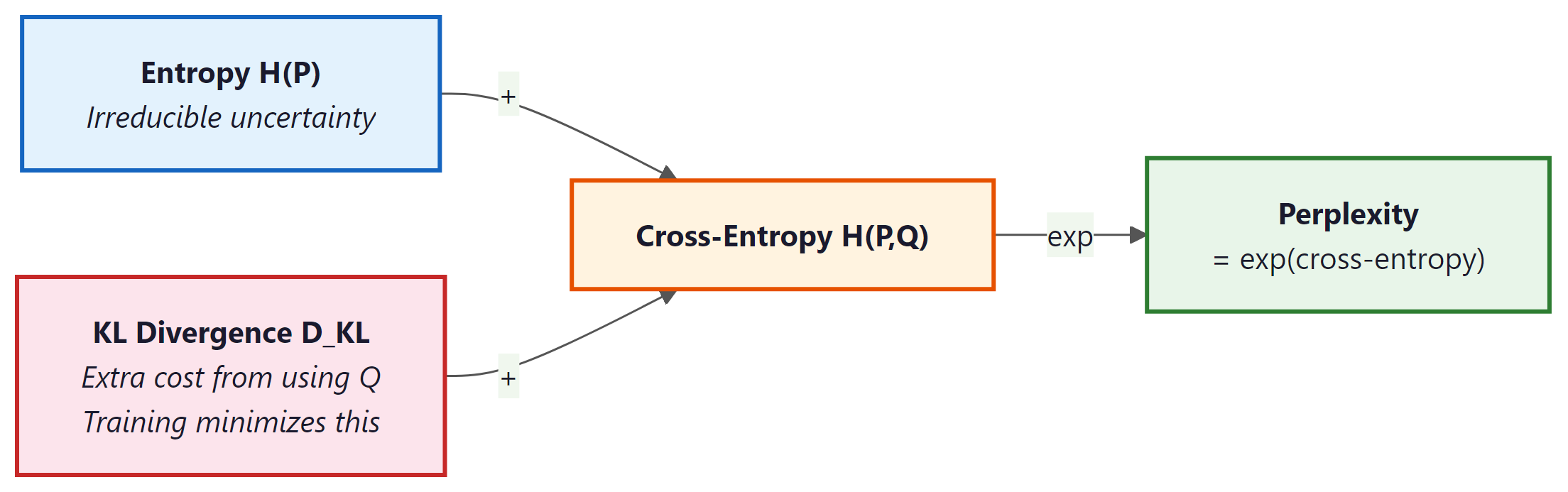

Figure 4.1.2: The information-theoretic decomposition. Cross-entropy splits into the irreducible entropy of the language plus the KL divergence that training minimizes. Perplexity exponentiates cross-entropy into an intuitive scale.

2.8 Comparison Table

3. High-Level Architecture

The Transformer consists of two stacks: an encoder (N=6 identical layers) and a decoder (N=6 identical layers). Each encoder layer has two sub-layers: (1) a multi-head self-attention mechanism and (2) a position-wise feed-forward network. Each decoder layer has three sub-layers: (1) masked multi-head self-attention, (2) multi-head cross-attention over the encoder output, and (3) a position-wise feed-forward network. Every sub-layer is wrapped in a residual connection followed by layer normalization.

Figure 4.1.3: High-level view of the encoder-decoder Transformer. Each sub-layer is wrapped with a residual connection and layer normalization.

4. Input Representation and Positional Encoding

4.1 Token Embeddings

The first step is converting discrete tokens into continuous vectors. A learned embedding matrix $W_{E} \in R^{V \times d}$ maps each token index to a $d$-dimensional vector. In the original paper, $d = 512$ and $V \approx 37,000$ (BPE tokens for English-German translation). The embedding weights are multiplied by $\sqrt{d}$ to bring their scale in line with the positional encodings that are added next. Code Fragment 4.1.2 below puts this into practice.

# Token embedding with scaling
import torch
import torch.nn as nn

class TokenEmbedding(nn.Module):
 def __init__(self, vocab_size, d_model):
 super().__init__()
 self.embed = nn.Embedding(vocab_size, d_model)
 self.scale = d_model ** 0.5

 # Forward pass: define computation graph
 def forward(self, x):
 return self.embed(x) * self.scale

4.2 Why We Need Positional Encoding

Self-attention is a set operation: it is permutation-equivariant, meaning that if you shuffle the input tokens, the outputs shuffle in the same way. Without any notion of position, the model cannot distinguish "the cat sat on the mat" from "mat the on sat cat the." Positional encoding injects ordering information into the representation.

4.3 Sinusoidal Positional Encoding

The original paper uses a fixed (non-learned) encoding based on sine and cosine functions of different frequencies:

Here $pos$ is the position in the sequence and $i$ is the dimension index. Each dimension oscillates at a different frequency, forming a unique "barcode" for each position. The key property: for any fixed offset $k$, the encoding at position $pos + k$ can be written as a linear function of the encoding at position $pos$. This allows the model to learn relative position patterns through linear projections. Code Fragment 4.1.3 below puts this into practice.

# Sinusoidal positional encoding: alternate sin/cos at different frequencies
# so each position gets a unique, smoothly varying vector.

import math

class SinusoidalPE(nn.Module):
 def __init__(self, d_model, max_len=5000):
 super().__init__()
 pe = torch.zeros(max_len, d_model)
 position = torch.arange(0, max_len).unsqueeze(1).float()
 div_term = torch.exp(
 torch.arange(0, d_model, 2).float() * (-math.log(10000.0) / d_model)
 )
 pe[:, 0::2] = torch.sin(position * div_term)
 pe[:, 1::2] = torch.cos(position * div_term)
 self.register_buffer('pe', pe.unsqueeze(0)) # (1, max_len, d_model)

 # Forward pass: define computation graph
 def forward(self, x):
 # x: (batch, seq_len, d_model)
 return x + self.pe[:, :x.size(1)]

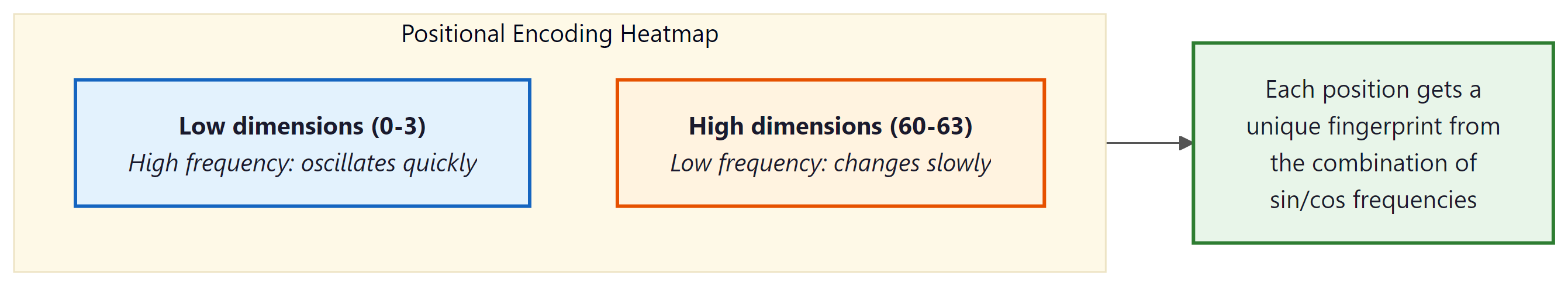

Figure 4.1.4: Each row is a position; each column a dimension. Low-index dimensions oscillate quickly (high frequency) while high-index dimensions change slowly, creating a unique fingerprint per position.

5. Scaled Dot-Product Attention (Revisited)

We covered attention in Chapter 3, but let us revisit it through the lens of the full Transformer. The attention function maps a query and a set of key-value pairs to an output. All are vectors. The output is a weighted sum of the values, where each weight is determined by the compatibility of the query with the corresponding key:

The division by $\sqrt{d_k}$ is crucial. Without it, when $d_{k}$ is large, the dot products grow large in magnitude, pushing the softmax into regions where it has extremely small gradients (the saturation problem). Vaswani et al. provide an elegant information-theoretic argument: if the components of Q and K are independent random variables with mean 0 and variance 1, then their dot product has mean 0 and variance $d_{k}$. Dividing by $\sqrt{d_k}$ restores unit variance.

5.1 Multi-Head Attention

Instead of performing a single attention function with $d$-dimensional keys, values, and queries, the Transformer linearly projects them $h$ times with different learned projections, performs attention in parallel on each projection, concatenates the results, and projects again:

With $h = 8$ heads and $d = 512$, each head operates on $d_{k} = d_{v} = 64$ dimensions. This is computationally equivalent to single-head attention with $d = 512$, but it allows the model to jointly attend to information from different representation subspaces at different positions. One head might learn syntactic dependencies while another captures semantic relatedness. Code Fragment 4.1.4 below puts this into practice.

# Multi-head attention: split d_model into n_heads parallel subspaces,
# compute scaled dot-product attention in each, concatenate, and project.

class MultiHeadAttention(nn.Module):
 def __init__(self, d_model, n_heads):
 super().__init__()
 assert d_model % n_heads == 0
 self.d_k = d_model // n_heads
 self.n_heads = n_heads

 self.W_q = nn.Linear(d_model, d_model)
 self.W_k = nn.Linear(d_model, d_model)
 self.W_v = nn.Linear(d_model, d_model)
 self.W_o = nn.Linear(d_model, d_model)

 def forward(self, q, k, v, mask=None):
 B, T, C = q.shape

 # Project and reshape: (B, T, d) -> (B, h, T, d_k)
 q = self.W_q(q).view(B, T, self.n_heads, self.d_k).transpose(1, 2)
 k = self.W_k(k).view(B, -1, self.n_heads, self.d_k).transpose(1, 2)
 v = self.W_v(v).view(B, -1, self.n_heads, self.d_k).transpose(1, 2)

 # Scaled dot-product attention
 scores = (q @ k.transpose(-2, -1)) / (self.d_k ** 0.5)
 if mask is not None:
 scores = scores.masked_fill(mask == 0, float('-inf'))
 attn = torch.softmax(scores, dim=-1)

 # Combine heads
 out = (attn @ v).transpose(1, 2).contiguous().view(B, T, C)
 return self.W_o(out)

# Production equivalent using PyTorch built-in
import torch.nn as nn

mha = nn.MultiheadAttention(embed_dim=512, num_heads=8, batch_first=True)
output, attn_weights = mha(query, key, value, attn_mask=mask)

6. Position-Wise Feed-Forward Network

After every attention sub-layer, the Transformer applies a simple two-layer feed-forward network to each position independently and identically:

This is applied to each token position separately (hence "position-wise"). The inner dimension is typically 4 times the model dimension: with $d = 512$, the inner layer has $d_{ff} = 2048$ units. The FFN accounts for roughly two-thirds of the parameters in each Transformer layer.

A quick numeric trace through a tiny FFN (d=3, d_ff=4) shows how the two linear layers and ReLU interact:

# Numeric example: FFN forward pass on a single token
import torch, torch.nn.functional as F

x = torch.tensor([0.5, -1.0, 0.8]) # one token, d_model=3
W1 = torch.tensor([[1, 0, -1, 0.5],
 [0, 1, 0, -1],
 [0.5, -0.5, 1, 0]]).float() # (3, 4)
hidden = F.relu(x @ W1) # project up, then ReLU
print(f"After W1 + ReLU: {hidden.tolist()}")
# After W1 + ReLU: [0.9, 0.0, 0.3, 1.25] (negatives clipped to 0)

W2 = torch.randn(4, 3) * 0.5 # (4, 3) project back down
out = hidden @ W2
print(f"FFN output shape: {out.shape}") # back to d_model=3

Why is the FFN important? Attention allows tokens to mix information across positions, but it is a linear operation over the value vectors (the softmax produces convex combination weights). The FFN provides the per-token nonlinear transformation that is essential for the model to learn complex functions. Think of attention as routing information and the FFN as processing it. Code Fragment 4.1.10 below puts this into practice.

# Position-wise feed-forward network: expand to d_ff, apply ReLU,
# project back to d_model. Applied identically at every sequence position.

class FeedForward(nn.Module):
 def __init__(self, d_model, d_ff, dropout=0.1):
 super().__init__()
 self.net = nn.Sequential(
 nn.Linear(d_model, d_ff),
 nn.ReLU(),
 nn.Dropout(dropout),
 nn.Linear(d_ff, d_model),
 nn.Dropout(dropout),
 )

 # Forward pass: define computation graph
 def forward(self, x):
 return self.net(x)

7. Residual Connections

Every sub-layer in the Transformer is wrapped with a residual (skip) connection:

Residual connections, introduced in ResNet (He et al., 2016), solve the degradation problem in deep networks: as you add more layers, training loss can increase because the optimization landscape becomes harder to navigate. A residual connection provides a gradient highway that allows gradients to flow directly from the output back to earlier layers without attenuation.

7.1 The Information-Theoretic View

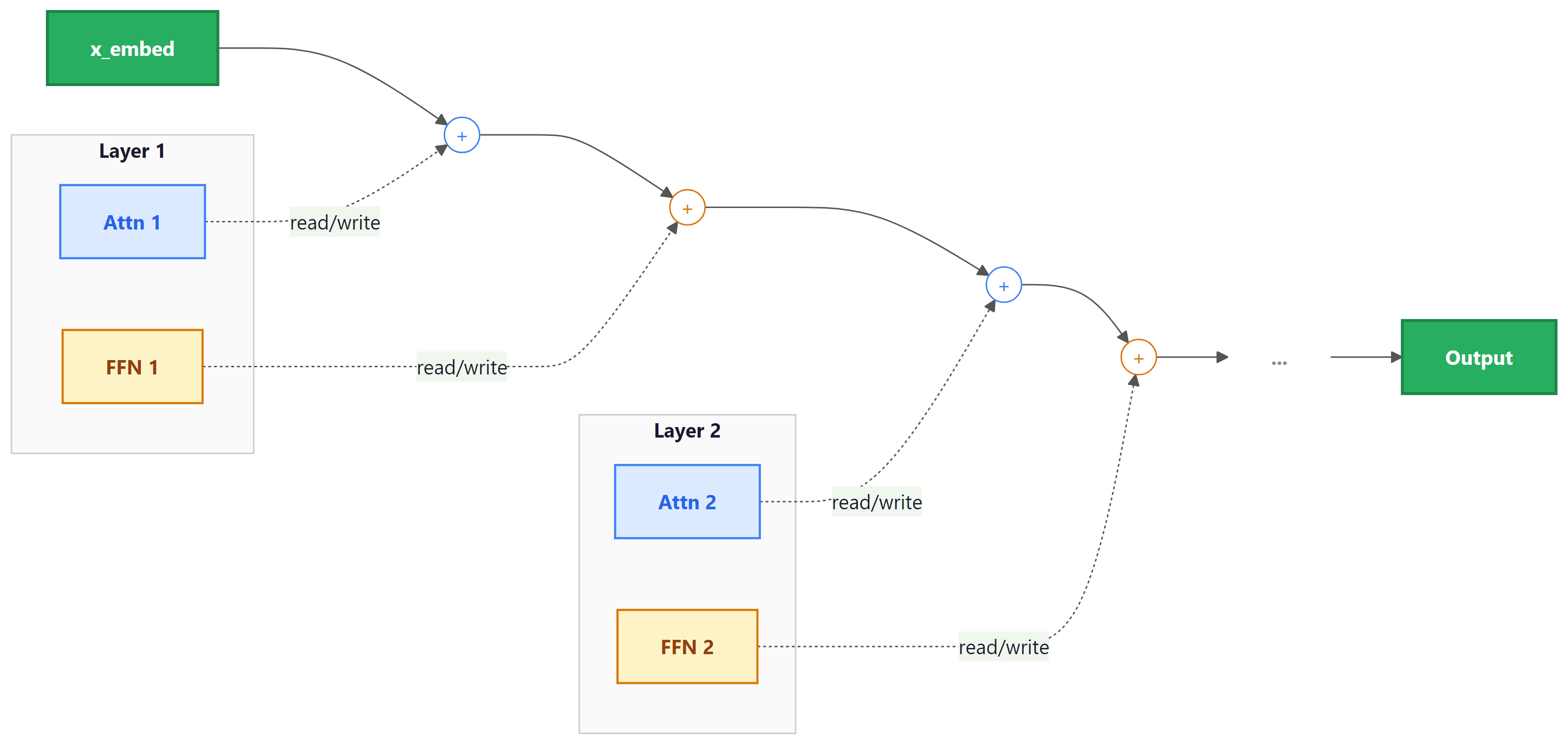

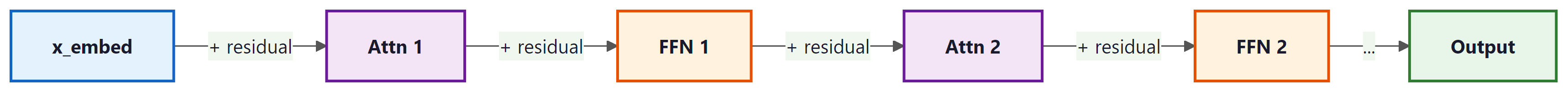

From an information flow perspective, residual connections ensure that the original input to each layer is preserved. Each sub-layer only needs to learn the delta (the difference between the desired output and the input). This is a much easier optimization target. If a layer has nothing useful to add, it can learn to output near-zero, effectively becoming an identity function. Without residuals, each layer must learn to pass through all information, including what it does not modify.

In a Transformer with $N$ layers, the residual connections create $2^{N}$ possible paths through the network (each sub-layer can be either included or skipped). This ensemble-like behavior helps explain the robustness of deep Transformers.

8. Layer Normalization

Layer normalization (Ba, Kiros, and Hinton, 2016) normalizes the activations across the feature dimension for each individual token:

where $\mu$ and $\sigma$ are the mean and standard deviation computed across the feature dimensions of a single token, $\gamma$ and $\beta$ are learned scale and shift parameters, and $\epsilon$ is a small constant for numerical stability.

A quick numeric example makes the centering and scaling concrete:

# Numeric example: LayerNorm on a single token's feature vector
import torch

x = torch.tensor([1.0, 2.0, 3.0, 4.0]) # one token, 4 features
mu = x.mean() # 2.5
sigma = x.std(unbiased=False) # 1.118
normed = (x - mu) / (sigma + 1e-5)
print(f"Input: {x.tolist()}")
print(f"Mean: {mu:.2f}, Std: {sigma:.3f}")
print(f"Output: {normed.round(decimals=3).tolist()}")
# Output: [-1.342, -0.447, 0.447, 1.342] (zero mean, unit variance)

8.1 Pre-LN vs. Post-LN

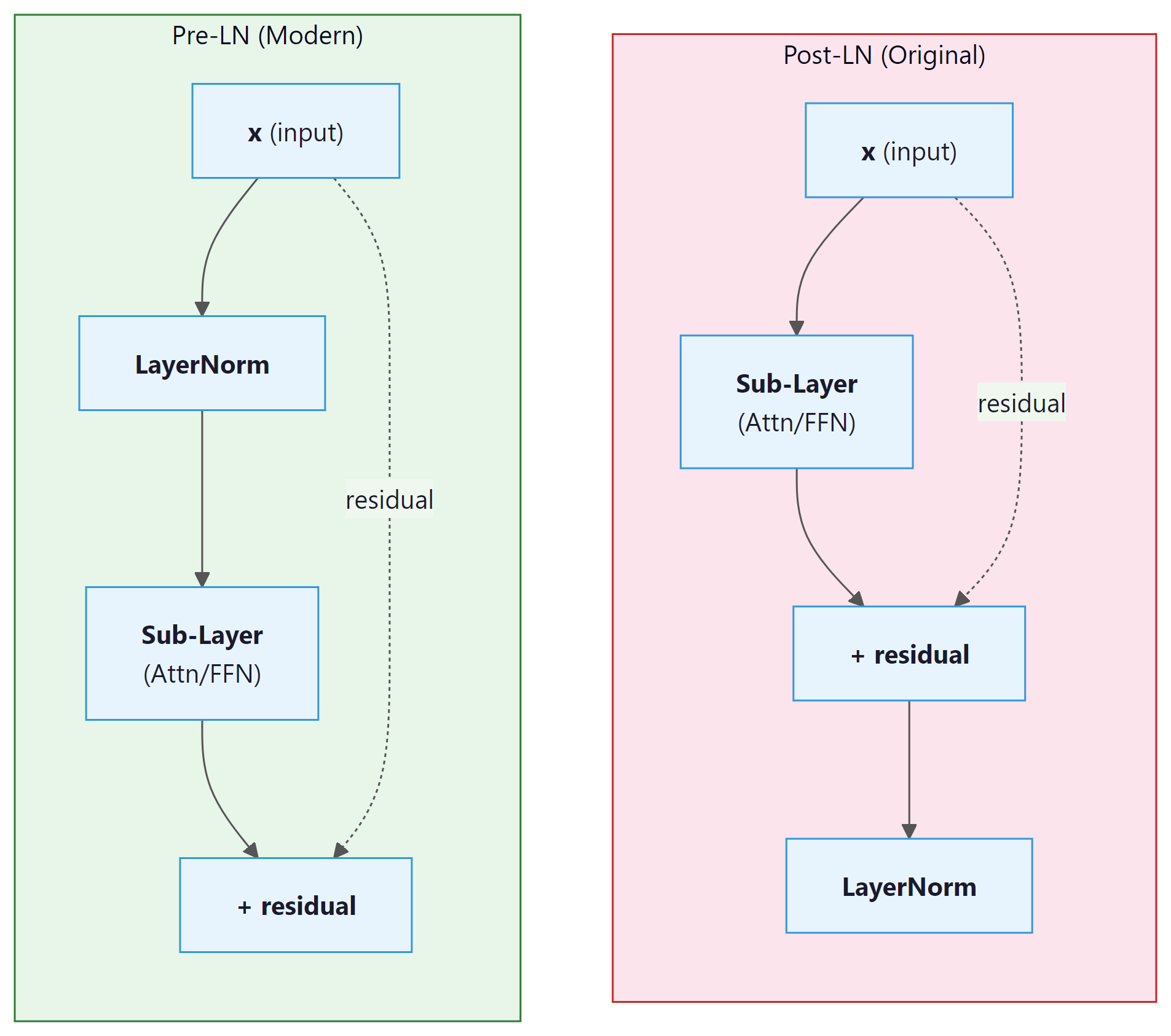

The original paper applies layer normalization after the residual addition (Post-LN): LayerNorm(x + SubLayer(x)). Most modern Transformers use Pre-LN, applying normalization before the sub-layer: x + SubLayer(LayerNorm(x)).

8.2 RMSNorm: The Modern Alternative

While LayerNorm has served Transformers well since the original paper, most modern LLMs (including LLaMA, Mistral, Gemma, and Qwen) have switched to RMSNorm (Root Mean Square Layer Normalization), introduced by Zhang and Sennrich (2019). RMSNorm simplifies LayerNorm by removing the mean-subtraction step and normalizing only by the root mean square of the activations:

The key difference from standard LayerNorm is the absence of the re-centering operation (subtracting the mean). LayerNorm computes both the mean and variance, subtracts the mean, then divides by the standard deviation. RMSNorm skips the mean computation entirely, dividing only by the root mean square. This simplification has two practical benefits. First, it is approximately 10 to 15% faster than LayerNorm because it requires fewer reduction operations on the GPU. Second, empirical results show that the re-centering step contributes little to training stability; the scale normalization alone is sufficient. The learned parameter $\gamma$ (a per-feature gain vector) allows the network to recover any needed scaling, just as in LayerNorm, but there is no learned bias $\beta$.

The adoption of RMSNorm in production LLMs is now nearly universal. Meta's LLaMA family, Mistral, Google's Gemma, and many other architectures all use RMSNorm with Pre-LN placement. If you are implementing a Transformer from scratch today, RMSNorm with Pre-LN is the recommended default.

The PyTorch implementation of RMSNorm is straightforward. The module stores a learnable gain vector weight (one element per feature dimension) and applies the RMS normalization formula during the forward pass. Note the absence of a bias parameter and the absence of mean subtraction, both of which distinguish RMSNorm from standard LayerNorm. Modern versions of PyTorch (2.4 and later) include torch.nn.RMSNorm as a built-in module, but the manual implementation below is instructive and remains common in research codebases.

# RMSNorm: normalize by root-mean-square instead of mean+variance.
# Cheaper than LayerNorm (skips the mean subtraction) with similar quality.
import torch
import torch.nn as nn

class RMSNorm(nn.Module):
 """Root Mean Square Layer Normalization (Zhang & Sennrich, 2019)."""

 def __init__(self, dim: int, eps: float = 1e-6):
 super().__init__()
 self.eps = eps
 self.weight = nn.Parameter(torch.ones(dim)) # learnable gain (gamma)

 def forward(self, x: torch.Tensor) -> torch.Tensor:
 # Compute RMS: sqrt(mean(x^2) + eps)
 rms = torch.sqrt(x.pow(2).mean(dim=-1, keepdim=True) + self.eps)
 # Normalize and apply learnable scale
 return (x / rms) * self.weight

# Usage: drop-in replacement for nn.LayerNorm in a Transformer block
norm = RMSNorm(dim=4096) # e.g., LLaMA 7B hidden dim
x = torch.randn(2, 128, 4096) # (batch, seq_len, hidden_dim)
out = norm(x) # same shape: (2, 128, 4096)

# Compare with PyTorch built-in (available in PyTorch 2.4+):
# builtin_norm = torch.nn.RMSNorm(4096, eps=1e-6)

# Built-in RMSNorm (PyTorch 2.4+), fused for GPU efficiency
import torch

norm = torch.nn.RMSNorm(4096, eps=1e-6) # same API as the manual version
x = torch.randn(2, 128, 4096)
out = norm(x) # (2, 128, 4096), normalized per token
print(f"Output shape: {out.shape}, RMS per token ~ 1.0: {out.pow(2).mean(-1)[0,0]:.3f}")

Figure 4.1.5: Post-LN (left) applies normalization after the residual addition. Pre-LN (right) normalizes the input before the sub-layer, placing the residual path outside the normalization.

9. Weight Initialization

Proper initialization is critical for training deep Transformers. The standard approach uses Xavier (Glorot) initialization for most weights: values are drawn from a uniform or normal distribution with variance $2 / (fan_{in} + fan_{out})$. This ensures that the variance of activations stays roughly constant as they propagate forward through layers.

A subtle but important refinement, used in GPT-2 and later models, is to scale the initialization of the output projection in the residual path by $1 / \sqrt{2N}$, where $N$ is the number of layers. The factor of 2 comes from having two residual sub-layers per block (attention and FFN). This keeps the residual stream variance from growing as $O(N)$ through the network. Code Fragment 4.1.9 below puts this into practice.

# GPT-2 style weight initialization: N(0, 0.02) for most layers,
# scaled by 1/sqrt(2*n_layers) for residual projections to stabilize depth.

def init_weights(module, n_layers):
 """GPT-2 style initialization."""
 if isinstance(module, nn.Linear):
 nn.init.normal_(module.weight, mean=0.0, std=0.02)
 if module.bias is not None:
 nn.init.zeros_(module.bias)
 elif isinstance(module, nn.Embedding):
 nn.init.normal_(module.weight, mean=0.0, std=0.02)

def scale_residual_init(module, n_layers):
 """Scale output projections in residual blocks."""
 for name, param in module.named_parameters():
 if name.endswith('W_o.weight') or name.endswith('net.3.weight'):
 # net.3 is the second linear layer in the FFN
 nn.init.normal_(param, mean=0.0, std=0.02 / (2 * n_layers) ** 0.5)

10. The Causal Mask (Decoder Self-Attention)

In auto-regressive language models (and in the decoder of the original Transformer), each position can only attend to itself and to earlier positions. This is enforced by a causal mask: an upper-triangular matrix of -inf values added to the attention scores before the softmax. The softmax converts -inf to zero, effectively blocking information flow from future tokens. Code Fragment 4.1.10 below puts this into practice.

# Build a causal (lower-triangular) boolean mask that blocks each token
# from attending to future positions, enforcing autoregressive generation.

def causal_mask(seq_len, device):
 """Returns a boolean mask: True = allowed, False = blocked."""
 return torch.tril(torch.ones(seq_len, seq_len, device=device, dtype=torch.bool))

# Usage in attention:
# scores.masked_fill_(~mask, float('-inf'))

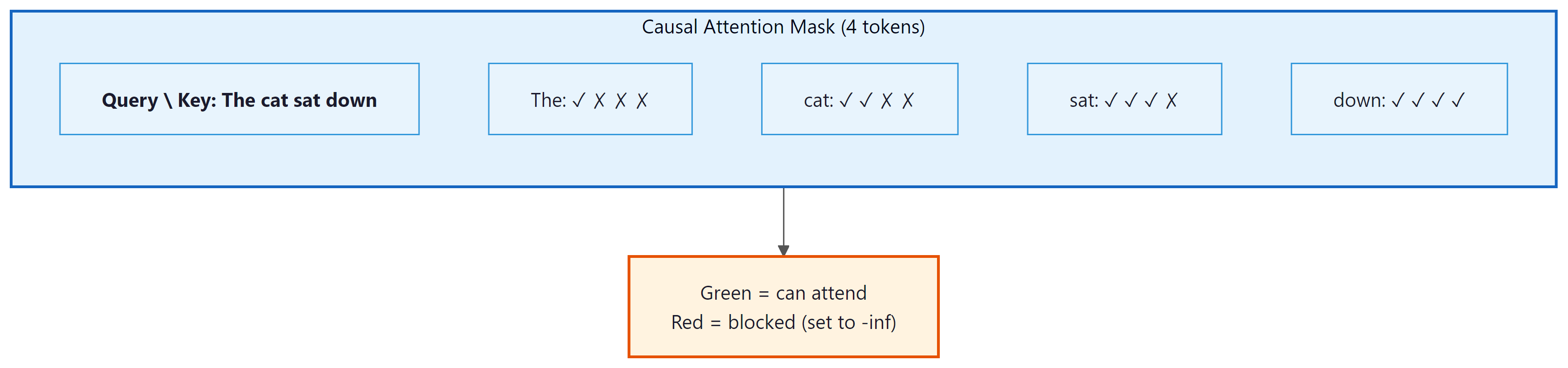

Figure 4.1.6: The causal (lower-triangular) attention mask for a 4-token sequence. Each row represents a query position; each column a key position. Green cells (1) allow attention; red cells (0) are set to negative infinity before softmax, blocking information flow from future tokens.

The mask ensures that the prediction for position $t$ depends only on tokens at positions $0, 1, ..., t$. This is what makes the model auto-regressive: during generation, each new token can be produced by conditioning only on the tokens generated so far.

10.1 The KV Cache: Avoiding Redundant Computation

Consider what happens when a decoder-only model generates text one token at a time. To produce token $t+1$, the model runs a forward pass over the entire sequence $[x_0, x_1, ..., x_t]$. To produce token $t+2$, it must run over $[x_0, x_1, ..., x_t, x_{t+1}]$. Notice that the Key and Value projections for positions $0$ through $t$ are identical in both passes. Recomputing them from scratch at every step is extremely wasteful, turning generation into an O(n²) operation in sequence length when it could be O(n).

The solution is the KV cache: after computing the Key and Value vectors for each position, the model stores them in a cache. When generating the next token, only the new token's Query, Key, and Value need to be computed. The new Key and Value are appended to the cache, and the attention for the new Query is computed against all cached Keys and Values. This reduces each generation step from processing the full sequence to processing a single token (plus the cached context), providing a dramatic speedup in practice.

The tradeoff is memory: the KV cache stores two tensors (K and V) per layer, per attention head, for every token in the sequence. For a model with $L$ layers, $H$ heads, and head dimension $d_h$, the cache for a sequence of length $n$ requires $2 \times L \times H \times d_h \times n$ elements. For large models serving long contexts, this cache can consume tens of gigabytes of GPU memory. Managing KV cache memory efficiently is one of the central challenges of LLM inference, and techniques like grouped-query attention (GQA), paged attention (vLLM), and cache quantization have been developed to address it. We will explore these optimizations in detail in Chapter 9: Inference Optimization.

11. The Complete Forward Pass

Let us trace a single forward pass through a decoder-only Transformer, the architecture used by GPT and most modern LLMs:

1. Tokenize the input text into a sequence of integer token IDs.
2. Embed the tokens: look up each ID in the embedding table and scale by $\sqrt{d}$.
3. Add positional encoding (sinusoidal, learned, or RoPE).
4. For each of the $N$ Transformer blocks:
   1. Apply Layer Normalization (Pre-LN).
   2. Compute Masked Multi-Head Self-Attention (with the causal mask).
   3. Add the residual (skip connection).
   4. Apply Layer Normalization (Pre-LN).
   5. Apply the Feed-Forward Network.
   6. Add the residual.
5. Apply a final Layer Normalization.
6. Project to vocabulary size with a linear layer (often weight-tied with the embedding matrix).
7. Apply softmax to obtain next-token probabilities.

12. Information Flow Through the Residual Stream

A powerful mental model for understanding Transformers (popularized by Elhage et al. at Anthropic) is the residual stream perspective. Instead of viewing the Transformer as a sequence of layers, imagine a single stream of vectors (one per position) flowing from the input embedding to the output. Each attention layer and each FFN layer reads from and writes to this stream additively:

Each sub-layer sees the accumulated state of the residual stream up to that point, performs some computation, and adds its contribution back. This means that earlier layers can communicate with later layers directly through the residual stream, without the information needing to "pass through" every intermediate layer. It also means that deleting a layer from a trained Transformer may be less catastrophic than you might expect; the residual stream carries forward most of the information regardless.

Figure 4.1.7: The residual stream perspective (Elhage et al., 2021). The Transformer's residual path acts as a shared communication channel. Each attention and FFN sub-layer reads from the stream and adds its output back, rather than sequentially transforming a single representation.

This perspective is central to the field of mechanistic interpretability, where researchers decompose the behavior of trained Transformers into the contributions of individual heads and MLP layers. We will return to this in a later module.

13. Putting It All Together: Parameter Counts

For a Transformer with $N$ layers, model dimension $d$, feed-forward dimension $d_{ff} = 4d$, $h$ attention heads, and vocabulary size $V$, the parameter count is approximately:

For GPT-3 (N=96, d=12288, V=50257), this gives roughly 175 billion parameters. The FFN contributes about twice as many parameters as the attention layers, a ratio that remains consistent across model sizes.
