Human-in-the-Loop Agent Systems

"Full autonomy is a spectrum, not a switch. The wisest agents know when to ask for help."

Census, Judiciously Supervised AI Agent

28.3.1 Why Human-in-the-Loop Matters

Fully autonomous agents are appealing in demos but dangerous in production. LLMs hallucinate, tools fail, and edge cases are inevitable. Human-in-the-loop (HITL) patterns insert human judgment at critical decision points, creating a safety net that catches errors before they cause real-world harm. The goal is not to have humans review every action (that defeats the purpose of automation) but to identify the specific moments where human oversight provides the most value.

The design challenge is finding the right granularity of human oversight. Too much oversight turns the agent into a glorified suggestion engine that requires human approval for every step. Too little oversight allows the agent to take irreversible actions based on incorrect reasoning. The optimal approach is graduated autonomy: the agent handles routine decisions independently, flags uncertain decisions for human review, and always requires human approval for high-consequence actions.

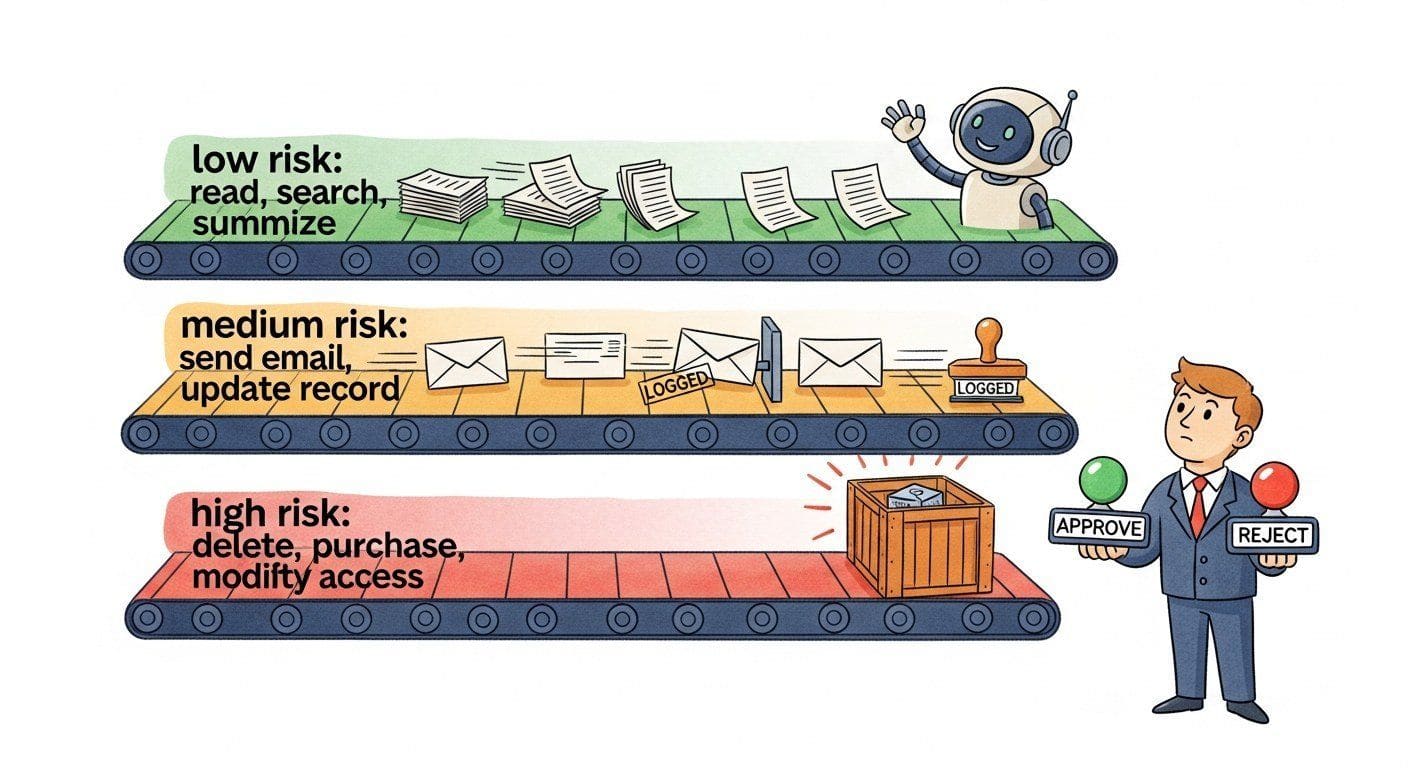

Graduated autonomy requires a classification system that assigns risk levels to agent actions. Low-risk actions (reading data, searching, summarizing) are auto-approved. Medium-risk actions (sending emails, updating records) are logged and can be reviewed after the fact. High-risk actions (deleting data, making purchases, modifying access controls) require explicit human approval before execution. The risk classification should be defined per-tool in the agent's configuration, not left to the agent's judgment.

28.3.2 Approval Workflow Patterns

This snippet implements a human-in-the-loop approval workflow that pauses agent execution for user confirmation before sensitive actions.

from langgraph.graph import StateGraph, END
from langgraph.checkpoint.sqlite import SqliteSaver
class ApprovalState(TypedDict):
    task: str
    agent_action: dict
    risk_level: str
    approved: Optional[bool]
    result: Optional[str]
    def classify_risk(state: ApprovalState) -> dict:
        action = state["agent_action"]
        # Risk classification based on action type
        if action["type"] in ["read", "search", "summarize"]:
            return {"risk_level": "low"}
        elif action["type"] in ["send_email", "update_record"]:
            return {"risk_level": "medium"}
        else:
            return {"risk_level": "high"}
    def route_by_risk(state: ApprovalState) -> str:
        if state["risk_level"] == "low":
            return "auto_execute"
        elif state["risk_level"] == "medium":
            return "execute_and_log"
            return "request_approval"
            def request_approval(state: ApprovalState) -> dict:
                # Send notification to human reviewer
                # The graph will pause here until the human responds
                send_approval_request(
                    action=state["agent_action"],
                    context=state["task"],
                    channel="slack", # or email, dashboard, etc.
                    )
                return {"approved": None} # Will be updated by human input
            def check_approval(state: ApprovalState) -> str:
                if state["approved"] is True:
                    return "execute"
                elif state["approved"] is False:
                    return "reject"
                    return "wait" # Still waiting for human response
                    graph = StateGraph(ApprovalState)
                    graph.add_node("classify", classify_risk)
                    graph.add_node("auto_execute", execute_action)
                    graph.add_node("execute_and_log", execute_and_log_action)
                    graph.add_node("request_approval", request_approval)
                    graph.add_node("execute", execute_action)
                    graph.add_node("reject", handle_rejection)
                    graph.set_entry_point("classify")
                    graph.add_conditional_edges("classify", route_by_risk)
                    graph.add_conditional_edges("request_approval", check_approval)
                    graph.add_edge("auto_execute", END)
                    graph.add_edge("execute_and_log", END)
                    graph.add_edge("execute", END)
                    graph.add_edge("reject", END)
                    # Checkpointer enables pause/resume for human approval
                    workflow = graph.compile(checkpointer=SqliteSaver.from_conn_string("approvals.db"))

28.3.3 Trust Calibration and Escalation

As an agent demonstrates reliability over time, its autonomy level can be increased. A new agent might require human approval for all write operations. After 100 successful executions with zero errors, medium-risk actions could be auto-approved with logging. This trust calibration should be data-driven: track the agent's decision accuracy across categories and adjust the risk thresholds based on measured reliability.

Escalation patterns define what happens when the agent encounters a situation it cannot handle. The simplest escalation is "stop and ask a human." More sophisticated patterns include: escalating to a more capable model (try GPT-4o-mini first, escalate to o3 for complex cases), escalating to a specialized agent (route from a general agent to a domain expert), or escalating with context (provide the human with the agent's reasoning, attempted actions, and error analysis to speed up human resolution).
