Query Transformation, HyDE & Multi-step Retrieval

It is not enough to find the right answer. You must first learn to ask the right question.

RAG, Inquisitive AI Agent

35.2.1 Query Transformation

Hybrid search and cross-encoder re-ranking (covered in 35.1) attack failure modes that live in the index. The techniques in this half work upstream of the index: they reshape the query itself, or wrap the whole retrieve-then-generate loop in a verification pass so the system can notice and recover when retrieval misses. We start with the lightest-weight intervention, multi-query expansion, where the model rephrases the user's question into several variants and merges the results.

# Multi-query expansion: ask the LLM to paraphrase the question N ways, retrieve
# for each paraphrase, then merge the unique hits. Cheap recall boost on ambiguous queries.
def multi_query_retrieve(query: str, collection, k: int = 5, num_variants: int = 3) -> list[dict]:
    """Generate query variants, retrieve for each, and dedupe by chunk id."""
    variants_response = client.chat.completions.create(
        model="gpt-4o-mini",  # Quality matters less than diversity here, so use a cheap model.
        messages=[
            {"role": "system",
             "content": f"Generate {num_variants} alternative phrasings of the following search query. Return one per line."},
            {"role": "user", "content": query},
        ],
    )
    variants = variants_response.choices[0].message.content.strip().splitlines()
    all_queries = [query, *variants]  # Original + paraphrases

    seen_ids, merged = set(), []
    for q in all_queries:
        hits = collection.query(query_texts=[q], n_results=k)
        for doc, meta, doc_id in zip(hits["documents"][0], hits["metadatas"][0], hits["ids"][0]):
            if doc_id in seen_ids:
                continue  # Same chunk surfaced by another paraphrase; skip the duplicate.
            seen_ids.add(doc_id)
            merged.append({"document": doc, "metadata": meta})
    return merged[: k * 2]  # Expanded recall set, capped at 2k

35.2.1.3 Step-Back Prompting

Step-back prompting (Zheng et al., 2023) generates a more abstract or general version of the query before retrieval. For example, the query "What was the GDP growth rate of Japan in Q3 2024?" might be stepped back to "What are the recent economic trends in Japan?" The broader query retrieves documents that provide necessary background context, which is then combined with results from the specific query. compares these three query transformation strategies.

A worked HyDE pass illustrates why "hypothetical and wrong" can still help. User query: "How does a transformer's KV cache reduce inference cost?" HyDE step 1: ask the LLM to write a fake passage as if it were the answer ("The KV cache stores previously computed key and value tensors so that during autoregressive decoding the model can skip recomputation for prior tokens, reducing complexity from O(n^2) to O(n) per step..."). HyDE step 2: embed that hypothetical passage, not the original question. The embedding now lives in "answer space," surrounded by real passages with similar phrasing. Even if the fake passage gets a fact wrong (say, it confuses K with V), the embedding is closer to actual technical explanations than the original question's embedding was, and the retriever surfaces better documents.

HyDE can be written compactly as a two-step transformation of the retrieval query. Let $q$ be the user query, $f_\mathrm{LLM}$ a hypothetical-passage generator (one or many samples), $E$ the document embedding model, and $\mathrm{sim}$ the index's similarity metric. Standard dense retrieval scores the corpus as $s_\mathrm{dense}(d) = \mathrm{sim}(E(q), E(d))$. HyDE instead samples $N$ hypothetical answers $\tilde{d}_i = f_\mathrm{LLM}(q)$ and scores documents against their mean embedding:

Setting $N = 1$ is the cheap default; $N = 4$ to $8$ averages out factual errors in any single hypothetical passage and is the typical published recipe. The mean-embedding pool is what makes the retriever robust to the "K versus V confusion" failure: a single wrong hypothesis lands near "encoder attention", but four wrong-but-related hypotheses average toward the centroid of "KV cache and inference cost" passages.

from openai import OpenAI

client = OpenAI()
HYDE_PROMPT = (
    "Write a short, technical paragraph that directly answers the user's "
    "question as if you were quoting it from a documentation page. Do not "
    "say 'I don't know'. Be confident even if uncertain about specifics."
)

def hyde_retrieve(query: str, collection, k: int = 5, n_samples: int = 4):
    """HyDE: generate N hypothetical answers, embed their mean, then retrieve."""
    hypothetical_passages = []
    for _ in range(n_samples):
        resp = client.chat.completions.create(
            model="gpt-4o-mini",
            temperature=0.8,
            messages=[
                {"role": "system", "content": HYDE_PROMPT},
                {"role": "user", "content": query},
            ],
        )
        hypothetical_passages.append(resp.choices[0].message.content.strip())

    # Embed each hypothetical passage; mean them to get a robust query vector.
    embeds = collection._embed(hypothetical_passages)  # (n_samples, d)
    mean_embed = embeds.mean(axis=0, keepdims=True)    # (1, d)

    hits = collection.query(query_embeddings=mean_embed.tolist(),
                            n_results=k)
    return list(zip(hits["documents"][0], hits["metadatas"][0]))

Figure 35.2.2a: Three query transformation strategies, each addressing different causes of retrieval failure.

35.2.1.4 HyPE: Hypothetical Prompt Embeddings

HyPE (Hypothetical Prompt Embeddings) is the dual of HyDE. Where HyDE generates a hypothetical answer at query time and embeds it, HyPE generates hypothetical questions at indexing time. For every chunk in the corpus, an LLM is asked to write three to five questions whose answer is contained in that chunk. Those generated questions are embedded and stored alongside (or instead of) the original chunk embeddings. At query time the user question is embedded once and matched directly against the question index, which puts query and index in the same linguistic register.

The tradeoff with HyDE is symmetric. HyDE shifts the LLM cost to query time (one extra LLM call per query) and keeps the index cheap. HyPE shifts the cost to indexing time (several LLM calls per chunk) and pays nothing at query time. HyPE wins when the corpus is small and stable and queries are frequent (an FAQ that serves millions of users per day); HyDE wins when the corpus is large and changes constantly and queries are rare. Both can be combined: index each chunk with both its raw embedding and three HyPE embeddings, then at query time run a HyDE pass and retrieve top-$k$ across the union.

35.2.1.5 MMR: Diversifying the Top-K

Pure top-$k$ retrieval often returns the same idea written five different ways. If the corpus contains five near-duplicate chunks of a popular API page, vanilla cosine retrieval will hand the generator all five and waste the context budget. Maximal Marginal Relevance (MMR) fixes this by re-ranking the candidate pool to balance relevance to the query with dissimilarity from already-selected results:

$$ \text{MMR} = \arg\max_{d_i \in C \setminus S} \left[ \lambda \cdot \text{sim}(d_i, q) - (1 - \lambda) \cdot \max_{d_j \in S} \text{sim}(d_i, d_j) \right] $$

where $C$ is the candidate set, $S$ is the already-selected set, $q$ is the query, and $\lambda \in [0, 1]$ trades off relevance ($\lambda = 1$ recovers vanilla cosine) against diversity ($\lambda = 0$ picks the most spread-out chunks regardless of relevance). A typical production setting is $\lambda = 0.5$, applied to a candidate pool that is 3 to 5 times larger than the desired top-$k$. Figure 35.2.3a shows the iterative selection loop that turns this argmax into a re-ranked list.

Figure 35.2.3b: MMR iteratively builds the output set $S$ by picking the candidate that maximises a convex combination of query similarity and dissimilarity to already-selected items. With $\lambda = 0.5$ the top-ranked d1 is kept on the first iteration; on subsequent iterations the scorer penalises near-duplicates of d1, so the second pick jumps to d4 (relevant but on a different sub-topic) and the third to d6 (different again).

from langchain_chroma import Chroma

retriever = Chroma(
    collection_name="docs",
    embedding_function=embeddings,
).as_retriever(
    search_type="mmr",
    search_kwargs={"k": 5, "fetch_k": 25, "lambda_mult": 0.5},
)
docs = retriever.invoke("How does the KV cache work?")

35.2.1.6 RAG-Fusion: Multi-Query + RRF

RAG-Fusion (Raudaschl, 2023) is the canonical name for the recipe that combines LLM multi-query expansion (Section 35.2.1.2) with Reciprocal Rank Fusion (RRF; see Section 36.2.1). The pipeline is: ask the LLM for $n$ paraphrases of the user question, run a vector search for each paraphrase, and merge the $n$ ranked lists into a single ranking using $\text{RRF}(d) = \sum_i \frac{1}{k + \text{rank}_i(d)}$ with $k = 60$. The Code Fragment 35.2.1 implementation above dedupes by document id; RAG-Fusion replaces that dedupe step with RRF so that documents appearing high in several paraphrase rankings are promoted relative to documents that appear in just one. LangChain's MultiQueryRetriever is the off-the-shelf wrapper for the front half (paraphrase generation plus per-query retrieval); pair it with the RRF helper from langchain.retrievers.ensemble to get the full RAG-Fusion pattern in under twenty lines.

Figure 35.2.3c: The RAG-Fusion pipeline. The user question is expanded into $n$ paraphrases, each paraphrase runs an independent vector search, and Reciprocal Rank Fusion (RRF) merges the $n$ ranked lists by summing $1/(k + \mathrm{rank}_i)$ across lists. Chunks that appear high in multiple paraphrase rankings dominate the fused result.

The pattern fits in well under twenty lines of Python; the two pieces are an LLM-driven query expander and the RRF helper, both already shipped in LangChain.

from langchain.retrievers import EnsembleRetriever
from langchain.retrievers.multi_query import MultiQueryRetriever
from langchain_openai import ChatOpenAI

# 1. Multi-query expander: LLM rewrites the user question into n paraphrases
expander = MultiQueryRetriever.from_llm(
    retriever=vectorstore.as_retriever(search_kwargs={"k": 10}),
    llm=ChatOpenAI(model="gpt-4o-mini", temperature=0),
)

# 2. Helper: Reciprocal Rank Fusion over the per-paraphrase ranked lists
def reciprocal_rank_fusion(ranked_lists, k=60):
    scores = {}
    for lst in ranked_lists:
        for rank, doc in enumerate(lst, start=1):
            scores[doc.page_content] = scores.get(doc.page_content, 0.0) + 1.0 / (k + rank)
    return sorted(scores.items(), key=lambda kv: kv[1], reverse=True)

# 3. Wire it up: each paraphrase yields its own ranked list, RRF fuses them
paraphrased = expander.generate_queries("How do I roll back a failed deployment?")
ranked_lists = [vectorstore.similarity_search(q, k=10) for q in paraphrased]
fused = reciprocal_rank_fusion(ranked_lists, k=60)[:5]
for doc_text, score in fused:
    print(f"{score:.4f}  {doc_text[:80]}")

35.2.1.7 Fusion-in-Decoder (FiD)

Every fusion technique above merges retrieval rankings. Fusion-in-Decoder (Izacard & Grave, 2021) merges retrieval contexts inside the generator itself, and it is worth knowing as the third option in the fusion taxonomy. The architecture uses an encoder-decoder model (originally T5): the encoder processes each retrieved passage independently and produces a separate token stream per passage, and the decoder cross-attends over the concatenation of all encoded passages when generating the answer. Because the encoder pass scales linearly with the number of passages (each one sees only its own context), FiD can fuse dozens or hundreds of retrieved documents without the quadratic-attention blow-up of stuffing them all into a single decoder-only prompt.

FiD is the dominant pattern in open-domain QA leaderboards because it lets the model reason across many short passages without a context-length limit. It is less common in production conversational systems for two reasons: it requires an encoder-decoder backbone (most production LLMs are decoder-only), and it costs a separate forward pass per passage. The three fusion patterns map onto a clean taxonomy: input fusion (stuff all passages into one prompt; this is naive RAG), output fusion (RRF over per-passage rankings; this is RAG-Fusion), intermediate fusion (cross-attend over per-passage encodings; this is FiD).

Figure 35.2.3d: Fusion-in-Decoder splits the attention budget across N independent encoder passes (one per passage) and fuses the resulting token streams inside the decoder's cross-attention. The architecture sidesteps the quadratic blow-up of stuffing all passages into a single self-attention window.

Concretely, with N retrieved passages each of length $L$, FiD's encoder cost is $\mathcal{O}(N \cdot L^2)$ (linear in $N$) and the decoder cross-attention cost is $\mathcal{O}(T_{\mathrm{out}} \cdot N \cdot L)$, where $T_{\mathrm{out}}$ is the answer length. The naive prompt-concatenation baseline pays $\mathcal{O}((N \cdot L)^2)$ for self-attention over the joined prompt, so FiD wins by a factor of $N$ on the dominant term:

The HuggingFace FiDT5 wrapper exposes the encoder loop directly:

from transformers import T5ForConditionalGeneration, T5Tokenizer
import torch

tok = T5Tokenizer.from_pretrained("t5-base")
model = T5ForConditionalGeneration.from_pretrained("t5-base")

question = "When was the Eiffel Tower built?"
passages = [
    "The Eiffel Tower was constructed between 1887 and 1889.",
    "Gustave Eiffel was a French engineer born in 1832.",
    "Paris hosts the Louvre, the Pantheon, and the Eiffel Tower.",
]

# Encode each (question, passage) pair independently
enc_inputs = [tok(f"question: {question} context: {p}", return_tensors="pt")
              for p in passages]
encoder_outs = [model.encoder(**inp).last_hidden_state for inp in enc_inputs]

# Concatenate along the sequence dimension and run the decoder once
fused = torch.cat(encoder_outs, dim=1)
attn_mask = torch.cat([inp.attention_mask for inp in enc_inputs], dim=1)
out = model.generate(encoder_outputs=(fused,), attention_mask=attn_mask, max_length=32)
print(tok.decode(out[0], skip_special_tokens=True))  # "1887 to 1889"

35.2.1.8 Memory-Augmented RAG

Production assistants need to remember the conversation, not just the corpus. Memory-augmented RAG maintains a second retrieval index built from the conversation history itself and retrieves from both indexes when answering a new turn. The dialog index typically lives in a separate vector store keyed by session and rotates older turns into a longer-term summary store (covered in Chapter 37). At query time the system retrieves the top-$k$ chunks from the corpus index plus the top-$m$ turns or summaries from the dialog index, concatenates them with provenance labels ("[wiki]" vs "[earlier in this chat]"), and hands the merged context to the generator.

The Knowledge Storage Spectrum table in Section 32.1 already lists agent memory as a first-class storage tier; memory-augmented RAG is the retrieval pattern that connects that tier to the corpus tier. Two practical gotchas: the dialog index needs strict per-session access control (treat it as PII) and the dialog retriever should weight recency more aggressively than the corpus retriever because conversational context decays in relevance much faster than reference documentation.

35.2.2 Contextual Retrieval

Standard chunking strips away the surrounding context that gives a chunk its meaning. A chunk reading "The company reported 15% growth" is ambiguous without knowing which company, which metric, and which time period. Contextual retrieval (Anthropic, 2024) prepends each chunk with a short contextual summary generated by an LLM, creating self-contained chunks that embed and retrieve much more accurately.

The complementary pattern compresses chunks at query time instead of enriching them at indexing time. LangChain calls this the ContextualCompressionRetriever: a base retriever returns ten candidate chunks, then a chain of compressors prunes the pool down to what is actually useful. The two most common compressors are LLMChainExtractor (cheap LLM extracts the relevant sentences from each chunk and discards the rest) and EmbeddingsFilter (drops chunks whose embedding similarity to the query is below a threshold). Stack them with DocumentCompressorPipeline for a two-stage filter:

from langchain.retrievers import ContextualCompressionRetriever
from langchain.retrievers.document_compressors import (
    DocumentCompressorPipeline, EmbeddingsFilter, LLMChainExtractor,
)

pipeline = DocumentCompressorPipeline(transformers=[
    EmbeddingsFilter(embeddings=embeddings, similarity_threshold=0.65),
    LLMChainExtractor.from_llm(llm),
])
compression_retriever = ContextualCompressionRetriever(
    base_compressor=pipeline,
    base_retriever=vectorstore.as_retriever(search_kwargs={"k": 20}),
)
docs = compression_retriever.invoke("What changed in v3.2?")

35.2.3 Self-Corrective RAG

Standard RAG blindly trusts the retrieval results and generates from whatever context is provided. Self-corrective RAG systems evaluate the quality of retrieved documents and the faithfulness of generated answers, triggering corrective actions when problems are detected.

35.2.3.1 CRAG: Corrective Retrieval-Augmented Generation

CRAG (Yan et al., 2024) adds a retrieval evaluator that classifies each retrieved document as "correct," "incorrect," or "ambiguous." If all documents are incorrect, the system falls back to web search. If documents are ambiguous, the system refines the query and re-retrieves. Only when documents are classified as correct does generation proceed normally. Figure 35.2.5a illustrates how CRAG branches into correction paths based on retrieval quality.

Figure 35.2.4b: CRAG evaluates retrieved documents and branches into three correction paths based on retrieval quality.

35.2.3.2 Self-RAG

Self-RAG (Asai et al., 2023) trains the LLM itself to generate special reflection tokens that assess whether retrieval is needed, whether retrieved passages are relevant, whether the generated response is supported by the evidence, and whether the response is useful. These self-assessments allow the model to adaptively decide when to retrieve, which passages to use, and when to regenerate.

35.2.3.3 RAFT: Retrieval-Augmented Fine-Tuning

Every technique up to this point modifies retrieval or prompting and leaves the generator untouched. RAFT (Retrieval-Augmented Fine-Tuning, Zhang et al., 2024) goes the other way: it fine-tunes the generator to behave well in the presence of imperfect retrieval. The training recipe encodes three priors that production RAG needs and a frozen instruction-tuned model lacks.

The first prior is QA-from-docs generation. For each chunk in the training corpus, an LLM generates question-answer pairs whose answers are grounded in that specific chunk. This produces a dataset of (question, gold chunk, gold answer) triples without manual labeling. The second prior is distractor mixing: each training example bundles the gold chunk together with several distractor chunks retrieved from elsewhere in the corpus, and the model learns to ignore the distractors when generating the answer. Critically, a fraction of the training examples (typically 20%) drop the gold chunk entirely and provide only distractors, teaching the model to abstain or to fall back on parametric knowledge when retrieval has failed. The third prior is chain-of-thought answers: the gold answer is rewritten to quote the supporting span from the gold chunk verbatim and then derive the final answer through a short reasoning chain. The fine-tuned model thus learns to read, cite, and reason rather than to pattern-match the longest retrieved string.

Figure 35.2.6a sketches how the three priors combine into a single training example, and the loss below states the chain-of-thought-with-quotes objective formally.

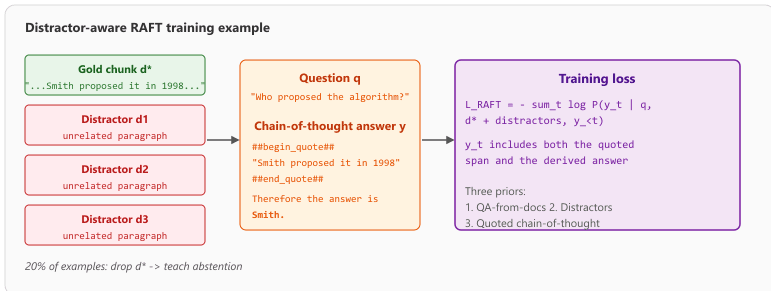

Figure 35.2.5b: RAFT's distractor-aware training example. The gold chunk is bundled with several distractor chunks, and the rewritten answer interleaves a verbatim quote from the gold chunk with a short reasoning chain that derives the final answer. A configurable fraction of examples drop the gold chunk entirely to teach abstention when retrieval fails.

Concretely, let $q$ be the question, $d^\star$ the gold chunk, $D^- = \{d_1^-, \ldots, d_n^-\}$ a set of distractor chunks, and $y = [y_1, \ldots, y_T]$ the chain-of-thought answer that interleaves a quoted span and the derived final answer. With probability $p$ (typically $p = 0.2$) the example drops $d^\star$ to train abstention. The RAFT training loss is the standard next-token cross-entropy taken over this distractor-aware context:

The indicator $\mathbb{1}[u > p]$ keeps the gold chunk with probability $1 - p$ and drops it otherwise, so the model sees both "retrieval succeeded" and "retrieval failed" contexts in the same training distribution. Because $y$ contains the ##begin_quote## span, gradient signal flows back into both faithfully copying the supporting evidence and deriving the final answer.

A typical RAFT training prompt looks like the following, with ##begin_quote## markers wrapping the spans the model is expected to lift from the gold chunk:

# RAFT-style training example
{
    "instruction": "Answer the question using the provided documents.",
    "documents": [
        {"id": 0, "text": "...gold passage about the topic..."},   # the gold doc
        {"id": 1, "text": "...irrelevant distractor..."},
        {"id": 2, "text": "...irrelevant distractor..."},
    ],
    "question": "Who first proposed the algorithm?",
    "cot_answer": (
        "##begin_quote##The algorithm was first proposed by Smith in 1998"
        "##end_quote## Therefore the answer is Smith."
    ),
    "answer": "Smith",
}

LlamaIndex ships a RAFT dataset builder that consumes a directory of documents and emits the training records above, ready for a QLoRA fine-tune of a 7B or 8B base model. In the original paper, a Llama 2 7B fine-tuned with RAFT matched or beat GPT-3.5 on domain-specific QA benchmarks (PubMed, HuggingFace docs, Gorilla API) at a tiny fraction of the inference cost. The technique is the natural complement to all the retrieval-side tricks earlier in this section: query rewriting, hybrid retrieval, and reranking raise the quality of the retrieved context, and RAFT teaches the generator to use that context responsibly.
