Subword Tokenization Algorithms

I merged byte pairs until "un" and "believable" became one token. Then I tried "un" and "fortunate." We don't talk about that.

Token, Compulsively Merging AI Agent

Overview of Subword Methods

You are about to learn the three algorithms that decide how every modern LLM reads text. If you have ever wondered why GPT tokenizes "ChatGPT" differently from "chatgpt," or why a simple Korean sentence consumes three times more tokens than its English translation, the answers lie in these algorithms. All subword tokenization algorithms solve the same problem: given a training corpus, learn a vocabulary of subword units that can represent any text efficiently. They differ in how they build the vocabulary and how they segment new text at inference time. The three dominant families are:

1. Byte Pair Encoding (BPE): a bottom-up, merge-based approach used by GPT-2, GPT-3, GPT-4, Llama, and most modern LLMs (Chapter 7).
2. WordPiece: a variant of BPE that uses a likelihood-based merge criterion, used by BERT and its derivatives.
3. Unigram Language Model: a top-down, pruning-based approach that assigns probabilities to all subword candidates and uses the Viterbi algorithm for segmentation, used by T5, ALBERT, and XLNet.

In addition, we will cover byte-level BPE (which eliminates the need for character-level preprocessing) and tokenizer-free models (which bypass discrete tokenization entirely).

Byte Pair Encoding (BPE)

The BPE Merge Algorithm

BPE was originally a data compression algorithm introduced by Philip Gage in 1994. Sennrich et al. (2016) adapted it for NLP by applying it to sequences of characters rather than bytes. The algorithm is elegantly simple:

1. Start with a vocabulary containing all individual characters found in the training corpus (plus any special tokens).
2. Count the frequency of every adjacent pair of tokens in the corpus.
3. Find the most frequent pair and merge it into a new token.
4. Add the new token to the vocabulary.
5. Replace all occurrences of the pair in the corpus with the new merged token.
6. Repeat from step 2 until the desired vocabulary size is reached.

The sequence of merges is recorded in a merge table, which is all you need (along with the base vocabulary) to tokenize new text at inference time. To encode a new word, you start with its characters and apply the merges in the same order they were learned. In Chapter 03, you will learn how these token IDs are converted into embedding vectors and processed by attention mechanisms.

Input: training corpus C, target vocabulary size V
Output: vocabulary, ordered merge table

vocab = set of all unique characters in C
merges = []

while |vocab| < V:
 pairs = count_adjacent_pairs(C)
 if no pairs remain:
 break
 best = argmax(a,b) ∈ pairs freq(a, b)
 new_token = concat(best.a, best.b)
 vocab.add(new_token)
 merges.append(best)
 // Replace all occurrences of the pair in the corpus
 C = replace_all(C, best.a + best.b, new_token)

return vocab, merges


# Production equivalent using HuggingFace tokenizers (Rust-backed)
from tokenizers import Tokenizer
from tokenizers.models import BPE
from tokenizers.trainers import BpeTrainer
from tokenizers.pre_tokenizers import Whitespace

tokenizer = Tokenizer(BPE(unk_token="[UNK]"))
tokenizer.pre_tokenizer = Whitespace()
trainer = BpeTrainer(vocab_size=1000, special_tokens=["[UNK]"])
tokenizer.train(files=["corpus.txt"], trainer=trainer)

Figure 2.2.2: BPE iteratively merges the most frequent character pair. The merge table records all merges in order.

Lab: Implementing BPE from Scratch

Below is a minimal but complete BPE implementation in Python. Study the code carefully; every line maps directly to a step in the algorithm described above.

# Minimal BPE implementation from scratch
from collections import Counter

def get_vocab(corpus):
 """Split each word into characters and add end-of-word marker."""
 words = corpus.split()
 word_freqs = Counter(words)
 vocab = {}
 for word, freq in word_freqs.items():
 # Each word becomes a tuple of characters + end-of-word symbol
 symbols = tuple(list(word) + ["</w>"])
 vocab[symbols] = freq
 return vocab

def get_pair_counts(vocab):
 """Count frequency of all adjacent symbol pairs."""
 pairs = Counter()
 for symbols, freq in vocab.items():
 for i in range(len(symbols) - 1):
 pairs[(symbols[i], symbols[i + 1])] += freq
 return pairs

def merge_pair(pair, vocab):
 """Merge all occurrences of a pair in the vocabulary."""
 new_vocab = {}
 bigram = pair
 for symbols, freq in vocab.items():
 new_symbols = []
 i = 0
 while i < len(symbols):
 # Look for the pair at position i
 if i < len(symbols) - 1 and symbols[i] == bigram[0] and symbols[i+1] == bigram[1]:
 new_symbols.append(bigram[0] + bigram[1])
 i += 2
 else:
 new_symbols.append(symbols[i])
 i += 1
 new_vocab[tuple(new_symbols)] = freq
 return new_vocab

def train_bpe(corpus, num_merges):
 """Train BPE and return the merge table and final vocabulary."""
 vocab = get_vocab(corpus)
 merges = []

 for step in range(num_merges):
 pairs = get_pair_counts(vocab)
 if not pairs:
 break
 best_pair = max(pairs, key=pairs.get)
 merges.append(best_pair)
 vocab = merge_pair(best_pair, vocab)
 print(f"Merge {step+1}: {best_pair} -> "
 f"'{best_pair[0]+best_pair[1]}' (freq={pairs[best_pair]})")

 return merges, vocab

# Train on a small corpus
corpus = "low low low lower lower lowest newest widest"
merges, final_vocab = train_bpe(corpus, num_merges=10)

print("\nFinal vocabulary:")
for symbols, freq in sorted(final_vocab.items(), key=lambda x: -x[1]):
 print(f" {' '.join(symbols):30s} (freq={freq})")

from transformers import AutoTokenizer

tok = AutoTokenizer.from_pretrained("bert-base-uncased") # WordPiece
print(tok.tokenize("unhelpfulness"))
# ['un', '##help', '##ful', '##ness']

tok2 = AutoTokenizer.from_pretrained("gpt2") # BPE
print(tok2.tokenize("unhelpfulness"))
# ['un', 'help', 'fulness']

Encoding New Text with Learned Merges

Once the merge table is learned during training, new words are tokenized by applying those merges in order.

# Encode a new word using the learned merge table
def encode_word(word, merges):
 """Tokenize a single word using learned BPE merges."""
 symbols = list(word) + ["</w>"]

 for left, right in merges:
 i = 0
 while i < len(symbols) - 1:
 if symbols[i] == left and symbols[i + 1] == right:
 symbols = symbols[:i] + [left + right] + symbols[i+2:]
 else:
 i += 1
 return symbols

# Test on known and unknown words
test_words = ["low", "lower", "lowest", "newer", "slowly"]

for word in test_words:
 tokens = encode_word(word, merges)
 print(f" '{word}' -> {tokens}")

Notice how "lowest" gets efficiently segmented into ["low", "est</w>"], reusing subword units learned from the training corpus. The unseen word "slowly" is handled by falling back to smaller units where no merges apply.

WordPiece

WordPiece, developed at Google for the neural machine translation system and later adopted by BERT (one of the landmark models discussed in Section 4.4), is closely related to BPE. The key difference is in the merge criterion. While BPE merges the most frequent pair, WordPiece merges the pair that maximizes the likelihood of the training data. Specifically, it merges the pair (A, B) that maximizes:

This score is essentially the pointwise mutual information (PMI) of the pair, measuring how much more often A and B appear together than expected by chance. It favors merging pairs where the combination AB appears much more often than you would expect if A and B occurred independently. In practice, this tends to produce linguistically meaningful subwords, because morphological boundaries (prefixes, suffixes, roots) tend to co-occur at rates much higher than chance.

WordPiece at Inference: MaxMatch

At inference time, WordPiece uses a greedy longest-match-first (MaxMatch) strategy. Given a word, it tries to match the longest possible token from the vocabulary starting from the left. If no match is found, it falls back to the longest match for the remaining substring. Continuation tokens are typically prefixed with ## to indicate they are not word-initial. Code Fragment 2.2.3 below puts this into practice.

# Simulated WordPiece MaxMatch tokenization
def wordpiece_tokenize(word, vocab, max_token_len=20):
 """Greedy longest-match-first tokenization."""
 tokens = []
 start = 0
 while start < len(word):
 end = min(start + max_token_len, len(word))
 found = False
 while end > start:
 substr = word[start:end]
 if start > 0:
 substr = "##" + substr # continuation prefix
 if substr in vocab:
 tokens.append(substr)
 found = True
 break
 end -= 1
 if not found:
 tokens.append("[UNK]")
 start += 1
 continue
 start = end
 return tokens

# Example vocabulary (simplified)
vocab = {"un", "##help", "##ful", "##ness", "##able", "token",
 "##ization", "##ize", "the", "##s", "play", "##ing",
 "##er", "##ed", "help", "##less"}

for word in ["tokenization", "unhelpfulness", "players", "helpless"]:
 tokens = wordpiece_tokenize(word, vocab)
 print(f" '{word}' -> {tokens}")

Unigram Language Model

Both BPE and WordPiece build their vocabularies from the bottom up, starting with individual characters and merging upward. The Unigram model takes the opposite direction entirely. Proposed by Kudo (2018) and implemented in the SentencePiece (a Google-developed tokenization library), it starts from the top down. Instead of starting small and merging upward, it starts with a large initial vocabulary of candidate subwords and iteratively prunes the least useful ones.

Training Procedure

The Unigram model assigns a probability to each possible segmentation of a word. Given a word $x$, the probability of a particular segmentation $S = (t_{1}, t_{2}, ..., t_{m})$ is:

The overall corpus loss is the negative log-likelihood over all words:

The training procedure alternates between finding the best segmentation of the corpus and removing the least useful tokens from the vocabulary:

1. Begin with a large candidate vocabulary (for example, all substrings up to a certain length that appear in the training data).
2. Assign a probability to each subword based on its frequency in the corpus, forming a unigram language model: $P(token) = freq(token) / total_{freq}$.
3. For each word in the training data, find the most probable segmentation using the Viterbi algorithm (dynamic programming over all possible tokenizations).
4. Compute the overall log-likelihood of the corpus under the current model.
5. For each subword in the vocabulary, measure how much worse the model's predictions would become if that subword were removed.
6. Remove the subwords whose removal causes the smallest decrease (they are the least useful).
7. Repeat from step 2 until the vocabulary reaches the target size.

Worked Example: Viterbi Segmentation Step by Step

A 10-character word has 512 possible segmentations; enumerating them all is impractical, so we use dynamic programming. The Viterbi algorithm, originally developed for decoding signals in communication systems, finds the optimal path through a sequence of possible states. To see how it works in practice, consider tokenizing the word "cats" with a small unigram vocabulary. We process the word left to right, at each position finding the best way to reach that point.

Suppose our vocabulary has these subwords and log-probabilities:

Step 1: Initialize. Create a score array for positions 0 through 4 (one past each character). Set score[0] = 0 (the start has no cost).

Step 2: Fill position 1 (after "c"). The only subword ending here is "c" (log P = -2.5). Best path to position 1: ["c"], score = -2.5.

Step 3: Fill position 2 (after "ca"). Two candidates reach here:

• "a" from position 1: score[1] + log P("a") = -2.5 + (-2.3) = -4.8
• "ca" from position 0: score[0] + log P("ca") = 0 + (-1.8) = -1.8 (winner)

Best path to position 2: ["ca"], score = -1.8.

Step 4: Fill position 3 (after "cat"). Three candidates:

• "t" from position 2: score[2] + log P("t") = -1.8 + (-2.4) = -4.2
• "at" from position 1: score[1] + log P("at") = -2.5 + (-1.9) = -4.4
• "cat" from position 0: score[0] + log P("cat") = 0 + (-1.2) = -1.2 (winner)

Best path to position 3: ["cat"], score = -1.2.

Step 5: Fill position 4 (after "cats"). Four candidates:

• "s" from position 3: score[3] + log P("s") = -1.2 + (-2.6) = -3.8 (winner)
• "ts" from position 2: score[2] + log P("ts") = -1.8 + (-2.0) = -3.8 (tie)
• "ats" from position 1: score[1] + log P("ats") = -2.5 + (-2.1) = -4.6
• "cats" from position 0: score[0] + log P("cats") = 0 + (-3.0) = -3.0 (actually best!)

Best path to position 4: ["cats"], score = -3.0. But if "cats" were not in the vocabulary, the best segmentation would be ["cat", "s"] with score -3.8.

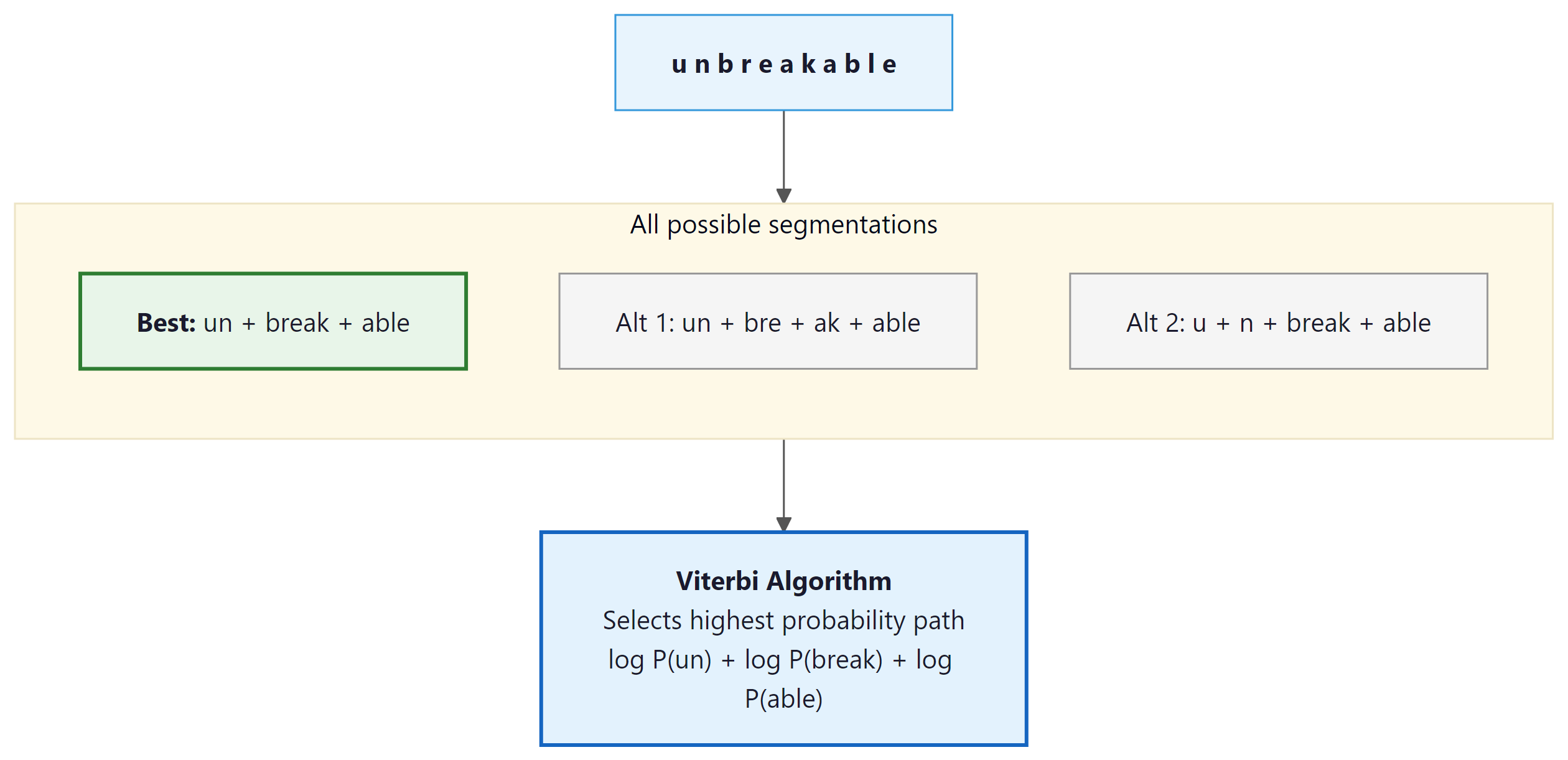

Figure 2.2.4: The Unigram model considers all possible segmentations and selects the one with the highest probability (lowest negative log-likelihood) using the Viterbi algorithm.

Comparison of the Three Methods

You need to know all three algorithms because you will encounter all three in production: GPT models use BPE, BERT uses WordPiece, and T5 uses Unigram. Understanding the differences helps you debug tokenization issues specific to each model.

# pip install sentencepiece
import sentencepiece as spm
import tempfile, os

# Write sample training data to a temp file
corpus = "The cat sat on the mat.\nThe dog chased the cat.\nLanguage models learn from text."
tmp = tempfile.NamedTemporaryFile(mode="w", suffix=".txt", delete=False)
tmp.write(corpus); tmp.close()

# Train a small Unigram tokenizer
spm.SentencePieceTrainer.train(
 input=tmp.name, model_prefix="tiny_sp",
 vocab_size=50, model_type="unigram"
)

# Load and tokenize
sp = spm.SentencePieceProcessor(model_file="tiny_sp.model")
tokens = sp.encode("The cat chased the dog.", out_type=str)
print("Tokens:", tokens)
ids = sp.encode("The cat chased the dog.")
print("IDs:", ids)
print("Decoded:", sp.decode(ids))
os.unlink(tmp.name)

# pip install tokenizers
from tokenizers import Tokenizer
from tokenizers.models import BPE
from tokenizers.trainers import BpeTrainer
from tokenizers.pre_tokenizers import Whitespace

tokenizer = Tokenizer(BPE(unk_token="[UNK]"))
tokenizer.pre_tokenizer = Whitespace()
trainer = BpeTrainer(vocab_size=100, special_tokens=["[UNK]", "[PAD]"])

# Train on raw text (pass list of file paths for large corpora)
tokenizer.train_from_iterator(
 ["The cat sat on the mat", "The dog chased the cat"],
 trainer=trainer,
)
output = tokenizer.encode("The cat chased the dog")
print("Tokens:", output.tokens)
print("IDs:", output.ids)

Byte-Level BPE

Standard BPE operates on Unicode characters, which means the initial vocabulary must include all characters that appear in the training data. For multilingual models, this can mean thousands of distinct characters from Chinese, Japanese, Korean, Arabic, Devanagari, and other scripts before any merges even begin.

Byte-level BPE, introduced by the GPT-2 team (Radford et al., 2019), solves this by operating on raw bytes instead of Unicode characters. Since there are only 256 possible byte values, the initial vocabulary is always exactly 256, regardless of what languages or scripts appear in the data. Multi-byte Unicode characters (such as Chinese characters, which are typically 3 bytes in UTF-8) are initially represented as sequences of byte tokens, and BPE merges then learn to combine them into higher-level units.

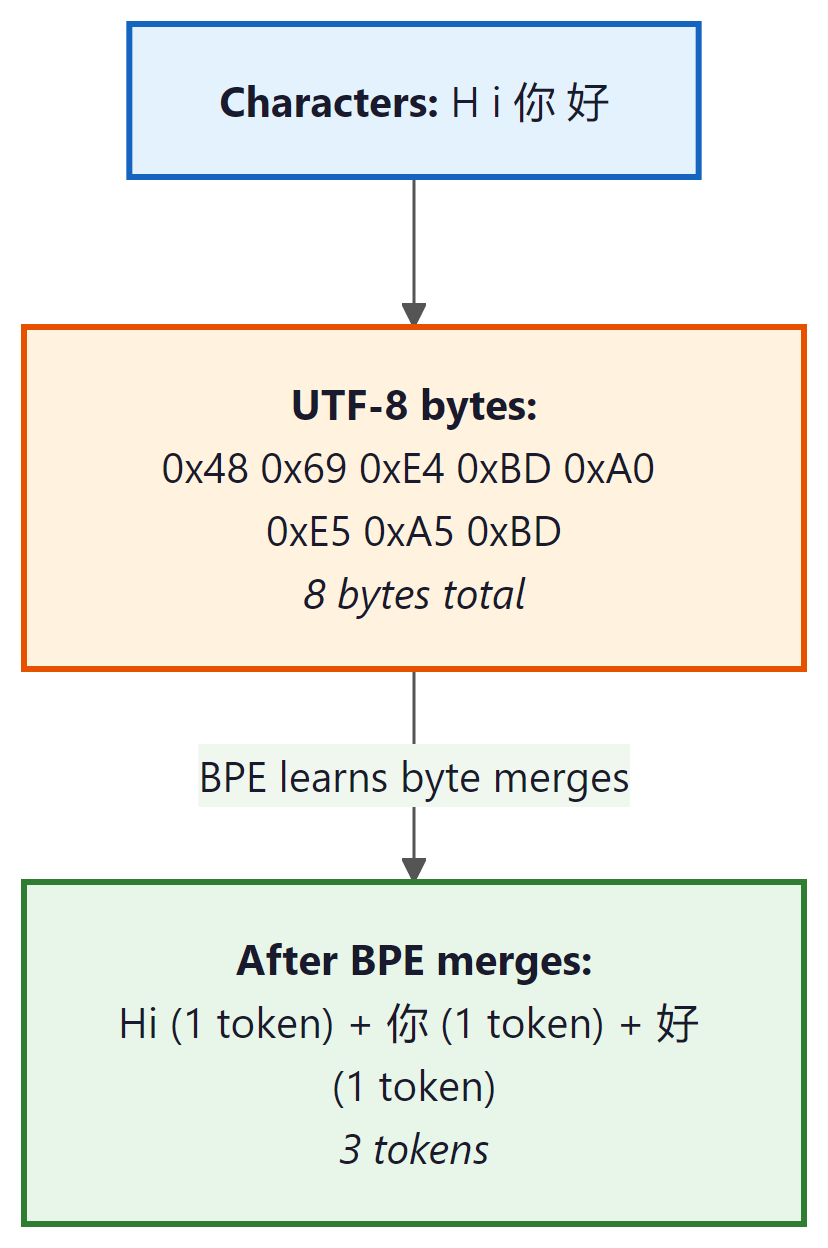

Figure 2.2.5: Byte-level BPE starts with 256 byte tokens and merges them upward. Common multi-byte characters become single tokens after training.

Tokenizer-Free Models

Byte-level BPE still requires a trained merge table and a fixed vocabulary. Could we go further and skip the vocabulary entirely? What if we eliminated the tokenizer altogether and let the model operate directly on raw bytes? This idea has gained traction with models like ByT5 (Xue et al., 2022) and MegaByte (Yu et al., 2023), which process byte sequences without any subword segmentation step.

ByT5: Bytes Are All You Need

ByT5 modifies the T5 architecture to accept raw UTF-8 bytes as input. It uses a vocabulary of only 259 tokens (256 byte values plus 3 special tokens). The obvious downside is that sequences become very long: a 100-word English sentence might be 400 to 600 bytes, compared to 120 to 150 subword tokens. ByT5 compensates with a deeper encoder (relative to the decoder) and achieves competitive performance on many NLP benchmarks while being more robust to noise, spelling errors, and cross-lingual transfer.

MegaByte: Hierarchical Byte Models

MegaByte addresses the long-sequence problem by introducing a hierarchical architecture. It divides the byte sequence into fixed-size patches (for example, P = 8 bytes each) and processes these patches with a large "global" transformer. Within each patch, a smaller "local" transformer predicts individual bytes. The global transformer processes N/P patches instead of N bytes, reducing the quadratic attention cost from O(N²) to O((N/P)² + P²). This two-level approach makes byte-level modeling practical for longer documents.

More recently, Meta's Byte Latent Transformer (BLT, 2024) dynamically allocates compute to complex byte sequences, achieving competitive performance with subword models while maintaining the benefits of byte-level input. This line of research suggests that the gap between tokenizer-free and subword-based models is narrowing.

Tradeoffs of Tokenizer-Free Models

Now that you understand how these algorithms work internally, Section 2.3 shows how they behave in practice: special tokens, chat templates, multilingual fertility, and cost estimation.
