Scaled Dot-Product & Multi-Head Attention

Why have one head when you can have eight, each looking at the sentence from a slightly different existential angle?

Attn, Multi-Headed AI Agent

1. The Query, Key, Value Abstraction

In Section 3.2, we described attention as a soft dictionary lookup: a query is compared against keys to produce weights, which are used to combine values. In Bahdanau and Luong attention, the keys and values were the same thing (encoder hidden states), and the query was the decoder state.

The Transformer formalizes and generalizes this. Given input vectors, it creates three separate representations through learned linear projections:

• Query (Q): What am I looking for? Obtained by projecting the input through $W^{Q}$.
• Key (K): What do I contain? Obtained by projecting the input through $W^{K}$.
• Value (V): What should I send back? Obtained by projecting the input through $W^{V}$.

These are separate projections of the same (or different) input vectors. This decoupling is crucial: the information used for matching (Q and K) can differ from the information that gets passed forward (V). A position might have a key that says "I am a verb in past tense" (used for matching) while its value encodes the actual semantic meaning of that verb (used for the output).

2. Scaled Dot-Product Attention

Given query matrix $Q$, key matrix $K$, and value matrix $V$, the Transformer computes:

Let us break this formula apart:

1. QK^T: Computes dot-product similarity between every query and every key simultaneously. If Q has shape $(n, d_{k})$ and K has shape $(m, d_{k})$, this produces an $(n, m)$ matrix of raw attention scores.
2. Scaling by √$d_{k}$: Divides each score by the square root of the key dimension. Without this scaling, the dot products would grow in magnitude with $d_{k}$, pushing the softmax into saturated regions where its gradients are extremely small.
3. Softmax: Converts each row into a probability distribution over key positions.
4. Multiply by V: Uses the attention weights to take a weighted combination of value vectors.

Why Scale by √d_k?

Consider two random vectors $q$ and $k$, each with entries drawn from a standard normal distribution. Their dot product $q \cdot k = \Sigma _{i} q_{i}k_{i}$ is a sum of $d_{k}$ independent products, each with mean 0 and variance 1. By the properties of sums of random variables, the dot product has mean 0 and variance $d_{k}$. As $d_{k}$ grows, the typical magnitude of the dot product increases as $\sqrt{d_k}$.

Large-magnitude inputs to softmax produce outputs very close to 0 or 1, with tiny gradients. Dividing by $\sqrt{d_k}$ restores the variance to approximately 1, keeping softmax in its sensitive, gradient-friendly regime. Code Fragment 3.3.1 below puts this into practice.

# Show why scaling matters: as d_k grows, raw dot products explode
# and softmax saturates, concentrating all weight on one key.
import torch
import torch.nn.functional as F

torch.manual_seed(42)

# Demonstrate the scaling problem
for d_k in [8, 64, 512]:
 q = torch.randn(1, d_k)
 K = torch.randn(10, d_k)

 # Unscaled dot products
 scores_unscaled = q @ K.T
 # Scaled dot products
 scores_scaled = scores_unscaled / (d_k ** 0.5)

 probs_unscaled = F.softmax(scores_unscaled, dim=-1)
 probs_scaled = F.softmax(scores_scaled, dim=-1)

 print(f"d_k={d_k:3d} | unscaled std={scores_unscaled.std():.2f}, "
 f"max prob={probs_unscaled.max():.4f} | "
 f"scaled std={scores_scaled.std():.2f}, "
 f"max prob={probs_scaled.max():.4f}")

import torch
import torch.nn as nn

# Built-in MHA: same functionality, one line to create
mha = nn.MultiheadAttention(embed_dim=128, num_heads=4, batch_first=True)

x = torch.randn(2, 10, 128) # (batch, seq_len, d_model)

# Bidirectional (BERT-style): pass x as query, key, and value
out, weights = mha(x, x, x)
print(f"Output: {out.shape}") # torch.Size([2, 10, 128])
print(f"Weights: {weights.shape}") # torch.Size([2, 10, 10])

# Causal (GPT-style): generate a causal mask
mask = nn.Transformer.generate_square_subsequent_mask(10)
out_causal, _ = mha(x, x, x, attn_mask=mask)

At $d_{k} = 512$, the unscaled softmax is completely saturated (max probability is essentially 1.0, meaning all attention goes to a single position). The scaled version maintains a healthy distribution. This is not just a cosmetic issue; saturated softmax means near-zero gradients, which makes training extremely difficult.

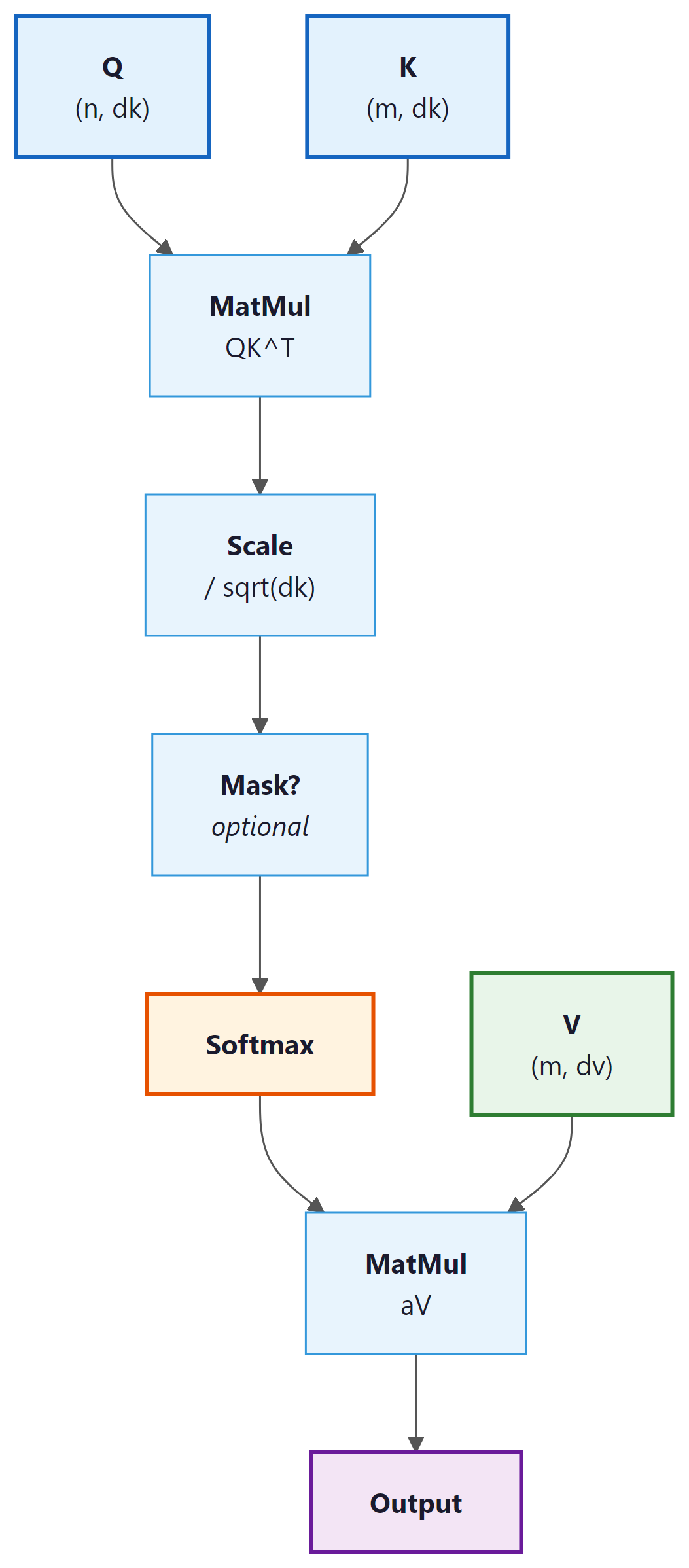

Figure 3.3.2: Scaled dot-product attention. Q and K are multiplied, scaled, optionally masked, passed through softmax, then used to weight V. The optional mask is used for causal (autoregressive) attention.

Implementation from Scratch

This implementation computes scaled dot-product attention step by step, including the optional causal mask.

# Scaled dot-product attention from scratch: Q @ K^T / sqrt(d_k),
# optional mask to block future tokens, softmax, then V weighting.
import torch
import torch.nn.functional as F
import math

def scaled_dot_product_attention(Q, K, V, mask=None):
 """
 Q: (batch, n_queries, d_k)
 K: (batch, n_keys, d_k)
 V: (batch, n_keys, d_v)
 mask: (batch, n_queries, n_keys) or broadcastable, True = mask out
 Returns: output (batch, n_queries, d_v), weights (batch, n_queries, n_keys)
 """
 d_k = Q.size(-1)

 # Step 1: Compute raw attention scores
 scores = torch.bmm(Q, K.transpose(-2, -1)) # (batch, n_q, n_k)

 # Step 2: Scale
 scores = scores / math.sqrt(d_k)

 # Step 3: Apply mask (if provided)
 if mask is not None:
 scores = scores.masked_fill(mask, float('-inf'))

 # Step 4: Softmax to get attention weights
 weights = F.softmax(scores, dim=-1) # (batch, n_q, n_k)

 # Step 5: Weighted sum of values
 output = torch.bmm(weights, V) # (batch, n_q, d_v)
 return output, weights

# Test: 4 queries attending to 6 key-value pairs
batch, n_q, n_k, d_k, d_v = 2, 4, 6, 32, 64
Q = torch.randn(batch, n_q, d_k)
K = torch.randn(batch, n_k, d_k)
V = torch.randn(batch, n_k, d_v)

out, wts = scaled_dot_product_attention(Q, K, V)
print(f"Output shape: {out.shape}") # (2, 4, 64)
print(f"Weights shape: {wts.shape}") # (2, 4, 6)
print(f"Weights row 0 sums to: {wts[0, 0].sum():.4f}")
print(f"Weights[0,0]: {wts[0,0].detach().numpy().round(3)}")

3. Self-Attention vs. Cross-Attention

The Q/K/V framework enables two fundamental modes of attention:

Self-Attention

In self-attention, the queries, keys, and values all come from the same sequence. Each position in the sequence attends to every other position (including itself). This allows each token to gather information from the entire input, building context-aware representations in a single operation.

Self-attention is what makes Transformers fundamentally different from RNNs. An RNN can only see past context (or future context, if bidirectional); self-attention sees all positions simultaneously. For a sentence like "The animal didn't cross the street because it was too tired," self-attention allows the model to connect "it" directly to "animal" regardless of distance.

Cross-Attention

In cross-attention, the queries come from one sequence (typically the decoder) while the keys and values come from a different sequence (typically the encoder). This is exactly the encoder-decoder attention from Section 3.2, reformulated in the Q/K/V framework. Cross-attention is what allows a Transformer decoder to "look at" the encoder output.

4. Causal Masking for Autoregressive Models

In autoregressive language models (like GPT), each token should only attend to tokens that appear before it in the sequence (and itself). It must not "peek" at future tokens that have not been generated yet. This causal constraint is what makes left-to-right text generation (Chapter 5) possible. This constraint is enforced with a causal mask: an upper-triangular matrix of True values that sets future positions to $- \infty$ before the softmax.

After masking, the scores for future positions become $- \infty$, which softmax maps to exactly 0. Each position can only attend to itself and earlier positions. Code Fragment 3.3.3 below puts this into practice.

# Causal (autoregressive) masking: build an upper-triangular boolean mask
# and pass it to scaled_dot_product_attention to block future positions.
import torch

# Create a causal mask for sequence length 5
seq_len = 5
causal_mask = torch.triu(torch.ones(seq_len, seq_len, dtype=torch.bool), diagonal=1)
print("Causal mask (True = blocked):")
print(causal_mask.int())

# Apply to attention scores
scores = torch.randn(1, seq_len, seq_len)
# Mask future positions with -inf so softmax ignores them
scores_masked = scores.masked_fill(causal_mask.unsqueeze(0), float('-inf'))
# Convert scores to attention weights (probabilities summing to 1)
weights = torch.softmax(scores_masked, dim=-1)

print("\nAttention weights (causal):")
print(weights[0].detach().numpy().round(3))

Notice the triangular structure: position 0 can only attend to itself (weight 1.0), position 1 can attend to positions 0 and 1, and so on. The upper triangle is exactly zero, guaranteeing no information leakage from the future.

5. Multi-Head Attention

A single attention head can only capture one type of relationship at a time. If a word needs to attend to its syntactic head, its semantic role, and a coreferent pronoun simultaneously, a single attention distribution cannot represent all three patterns.

Multi-head attention solves this by running multiple attention operations in parallel, each with its own learned projections:

The individual head outputs are concatenated and projected back to the model dimension:

Each head operates in a lower-dimensional subspace. If the model dimension is $d_{model}$ and there are $h$ heads, each head works with dimension $d_{k} = d_{model} / h$. Variants like Grouped Query Attention (GQA) reduce the number of key/value heads to save memory; we cover these optimizations in Section 4.3 and their inference impact in Section 9.2. The outputs of all heads are concatenated and projected back to the full model dimension through $W^{O}$.

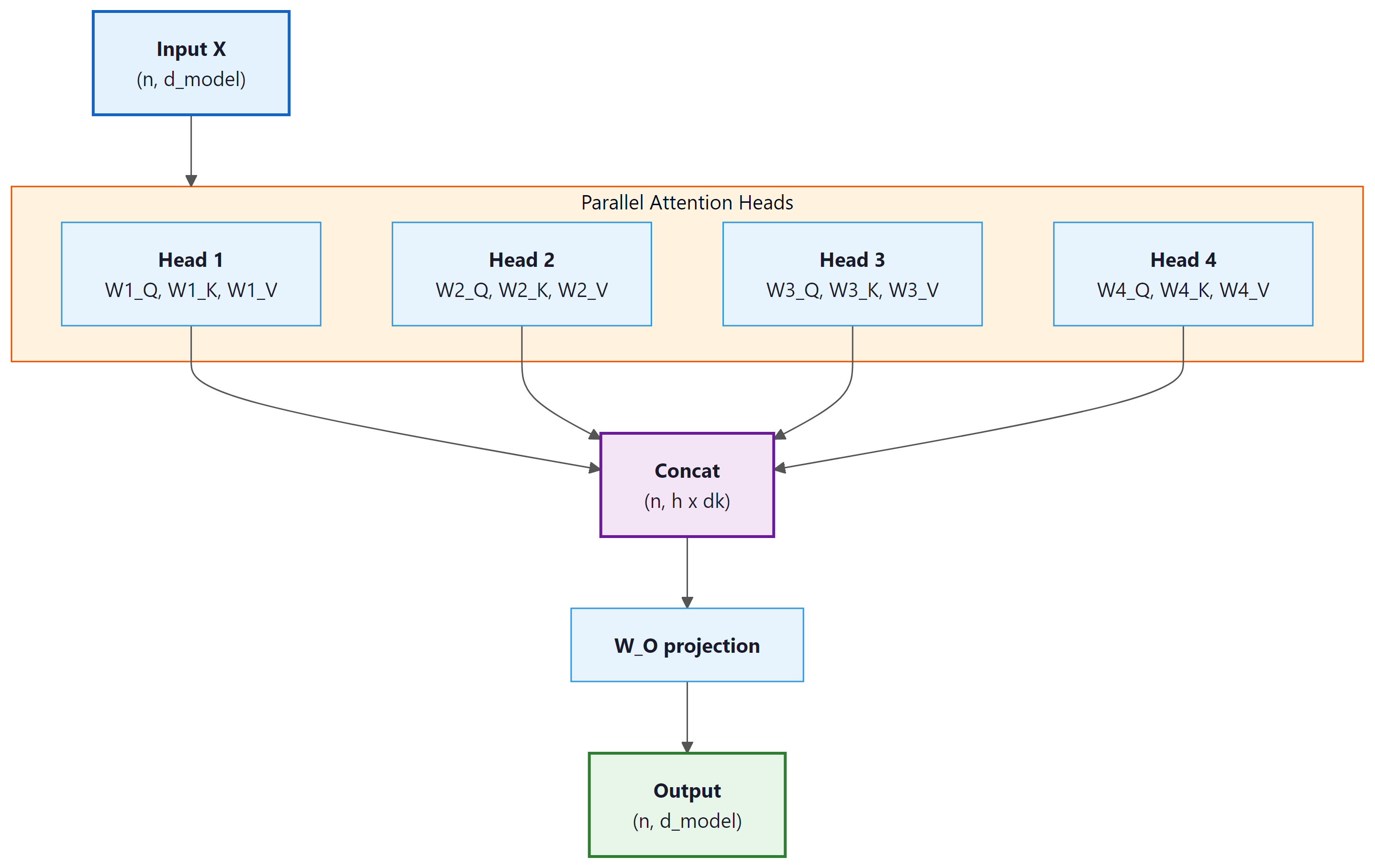

Figure 3.3.3: Multi-head attention with h=4 heads. Each head independently projects the input into a lower-dimensional Q/K/V space, computes attention, and the results are concatenated and projected back to the full model dimension.

6. Lab: Implementing Multi-Head Self-Attention

Let us now build a complete, production-style multi-head self-attention module. This is the exact computation at the heart of every Transformer layer. Code Fragment 3.3.4 below puts this into practice.

# Multi-head self-attention: project input into h separate (Q, K, V) triples,
# run scaled dot-product attention on each head, concatenate, and project back.
import torch
import torch.nn as nn
import torch.nn.functional as F
import math

class MultiHeadSelfAttention(nn.Module):
 """Multi-head self-attention with optional causal masking."""

 def __init__(self, d_model, n_heads, dropout=0.0):
 super().__init__()
 assert d_model % n_heads == 0, "d_model must be divisible by n_heads"

 self.d_model = d_model
 self.n_heads = n_heads
 self.d_k = d_model // n_heads # dimension per head

 # Combined Q, K, V projection (more efficient than three separate ones)
 self.qkv_proj = nn.Linear(d_model, 3 * d_model)

 # Output projection
 self.out_proj = nn.Linear(d_model, d_model)
 self.dropout = nn.Dropout(dropout)

 def forward(self, x, causal=False):
 """
 x: (batch, seq_len, d_model)
 causal: if True, apply causal mask
 Returns: (batch, seq_len, d_model)
 """
 B, T, C = x.shape

 # Step 1: Project to Q, K, V
 qkv = self.qkv_proj(x) # (B, T, 3*C)
 Q, K, V = qkv.chunk(3, dim=-1) # each: (B, T, C)

 # Step 2: Reshape for multi-head: (B, T, C) -> (B, h, T, d_k)
 Q = Q.view(B, T, self.n_heads, self.d_k).transpose(1, 2)
 K = K.view(B, T, self.n_heads, self.d_k).transpose(1, 2)
 V = V.view(B, T, self.n_heads, self.d_k).transpose(1, 2)

 # Step 3: Scaled dot-product attention
 scores = torch.matmul(Q, K.transpose(-2, -1)) # (B, h, T, T)
 scores = scores / math.sqrt(self.d_k)

 # Step 4: Causal mask (optional)
 if causal:
 mask = torch.triu(torch.ones(T, T, device=x.device, dtype=torch.bool), diagonal=1)
 scores = scores.masked_fill(mask.unsqueeze(0).unsqueeze(0), float('-inf'))

 # Step 5: Softmax + dropout
 weights = F.softmax(scores, dim=-1) # (B, h, T, T)
 weights = self.dropout(weights)

 # Step 6: Weighted sum of values
 out = torch.matmul(weights, V) # (B, h, T, d_k)

 # Step 7: Concatenate heads: (B, h, T, d_k) -> (B, T, C)
 out = out.transpose(1, 2).contiguous().view(B, T, C)

 # Step 8: Output projection
 out = self.out_proj(out) # (B, T, C)
 return out, weights

# Create and test the module
mha = MultiHeadSelfAttention(d_model=128, n_heads=4)
x = torch.randn(2, 10, 128) # batch=2, seq_len=10, d_model=128

# Bidirectional (BERT-style)
out_bi, wts_bi = mha(x, causal=False)
print(f"Bidirectional output: {out_bi.shape}")
print(f"Weights shape: {wts_bi.shape}")

# Causal (GPT-style)
out_ca, wts_ca = mha(x, causal=True)
print(f"Causal output: {out_ca.shape}")

# Verify causal mask works: position 0 should have zero weight on all future positions
print(f"\nCausal weights for head 0, position 0:")
print(f" {wts_ca[0, 0, 0].detach().numpy().round(4)}")
print(f" (Only first entry is non-zero: position 0 attends only to itself)")

# Count parameters
params = sum(p.numel() for p in mha.parameters())
print(f"\nTotal parameters: {params:,}")
print(f" QKV projection: {128 * 3 * 128 + 3 * 128:,}")
print(f" Output projection: {128 * 128 + 128:,}")

7. Complexity Analysis: The O(n²) Problem

Self-attention has a fundamental computational cost: the score matrix $QK^{T}$ has shape $(n, n)$ where $n$ is the sequence length. This means both the computation and memory required grow quadratically with sequence length.

For typical LLM settings, $n$ can be 2048, 8192, or even 128,000 tokens. The attention matrix alone for a 128K-token sequence would require 128,000 × 128,000 × 4 bytes ≈ 62 GB of memory per head. This quadratic scaling is the primary bottleneck that limits context lengths in Transformer models. Code Fragment 3.3.5 below puts this into practice.

# Benchmark attention wall-clock time as sequence length doubles.
# Quadratic O(n^2) scaling becomes visible at longer sequences.
import torch, time

# Measure how attention scales with sequence length
d_model, n_heads = 128, 4
mha = MultiHeadSelfAttention(d_model, n_heads)
mha.eval()

print(f"{' seq_len':>10} {'time (ms)':>10} {'mem (MB)':>10} {'ratio':>8}")
prev_time = None
for seq_len in [64, 128, 256, 512, 1024, 2048]:
 x = torch.randn(1, seq_len, d_model)

 # Warm up
 with torch.no_grad():
 _ = mha(x)

 # Time it
 t0 = time.perf_counter()
 with torch.no_grad():
 for _ in range(20):
 _ = mha(x)
 elapsed = (time.perf_counter() - t0) / 20 * 1000

 # Memory for attention matrix
 attn_mem = seq_len * seq_len * n_heads * 4 / 1e6 # float32

 ratio = f"{elapsed / prev_time:.1f}x" if prev_time else ""
 print(f"{seq_len:>10} {elapsed:>10.2f} {attn_mem:>10.2f} {ratio:>8}")
 prev_time = elapsed

Each doubling of sequence length increases computation time by roughly 4x (approaching the theoretical quadratic scaling). The memory for attention matrices also grows quadratically. This is why modern LLM research invests heavily in techniques like Flash Attention, sparse attention, and linear attention approximations to tame this O(n²) cost.

import torch
import torch.nn.functional as F

# Simulated Q, K, V: batch=1, heads=8, seq_len=128, head_dim=64
Q = torch.randn(1, 8, 128, 64)
K = torch.randn(1, 8, 128, 64)
V = torch.randn(1, 8, 128, 64)

# PyTorch's fused kernel selects FlashAttention, memory-efficient,
# or math backend automatically based on hardware
out = F.scaled_dot_product_attention(Q, K, V, is_causal=True)
print("Output shape:", out.shape) # (1, 8, 128, 64)

# Check which backend was selected
# Requires: pip install flash-attn (for the FlashAttention backend on CUDA)

8. Putting It All Together: Complete Example

Let us combine everything into a demonstration that shows multi-head self-attention operating on actual token embeddings, with visualization of what different heads learn: Code Fragment 3.3.6 below puts this into practice.

# End-to-end demo: embed a 5-word sentence, run multi-head attention,
# and inspect the output shape to verify the residual-ready dimensions.
import torch
import torch.nn as nn

# Simulate a small vocabulary and sentence
vocab = {"the": 0, "cat": 1, "sat": 2, "on": 3, "mat": 4}
sentence = ["the", "cat", "sat", "on", "mat"]
token_ids = torch.tensor([[vocab[w] for w in sentence]])

# Embedding + self-attention
d_model, n_heads = 64, 4
embedding = nn.Embedding(len(vocab), d_model)
attn = MultiHeadSelfAttention(d_model, n_heads)

# Forward pass
x = embedding(token_ids) # (1, 5, 64)
output, weights = attn(x, causal=True) # causal for GPT-style

print(f"Input shape: {x.shape}")
print(f"Output shape: {output.shape}")
print(f"Weights shape: {weights.shape} (batch, heads, queries, keys)")

# Show what each head attends to for the word "mat" (last position)
print(f"\nAttention to generate representation of 'mat' (position 4):")
for h in range(n_heads):
 w = weights[0, h, 4].detach().numpy()
 top_pos = w.argmax()
 print(f" Head {h}: {' '.join(f'{sentence[i]}:{w[i]:.2f}' for i in range(5))}"
 f" (peak: '{sentence[top_pos]}')")

# Verify output is different from input (attention has mixed information)
cos_sim = nn.functional.cosine_similarity(x[0], output[0], dim=-1)
print(f"\nCosine similarity (input vs output) per position:")
for i, word in enumerate(sentence):
 print(f" '{word}': {cos_sim[i]:.4f}")

Each head focuses on a different relationship. Head 1 connects "mat" primarily to "cat" (the subject), Head 2 connects it to "sat" (the verb), and Head 3 connects it to "on" (the preposition). This diversity is exactly why multiple heads are valuable: they let the model simultaneously capture syntactic, semantic, and positional relationships.

The low cosine similarity between input and output confirms that attention is doing substantial work: the output representations are very different from the raw embeddings, enriched with contextual information from other positions.

pip install numpy matplotlib torch

import numpy as np

def softmax(x, axis=-1):
 """Numerically stable softmax."""
 e_x = np.exp(x - np.max(x, axis=axis, keepdims=True))
 return e_x / np.sum(e_x, axis=axis, keepdims=True)

def scaled_dot_product_attention(Q, K, V, mask=None):
 """
 Q, K, V: arrays of shape (seq_len, d_k)
 mask: optional boolean array; True means "mask this position"
 Returns: attention output and attention weights
 """
 d_k = Q.shape[-1]
 scores = Q @ K.T / np.sqrt(d_k) # (seq_len, seq_len)

 if mask is not None:
 scores = np.where(mask, -1e9, scores)

 weights = softmax(scores, axis=-1)
 output = weights @ V
 return output, weights

# Test with a small example: 4 tokens, dimension 8
np.random.seed(42)
seq_len, d_k = 4, 8
Q = np.random.randn(seq_len, d_k)
K = np.random.randn(seq_len, d_k)
V = np.random.randn(seq_len, d_k)

output, weights = scaled_dot_product_attention(Q, K, V)
print(f"Attention output shape: {output.shape}")
print(f"Attention weights (each row sums to 1):")
print(np.round(weights, 3))

import matplotlib.pyplot as plt

tokens = ["The", "cat", "sat", "down"]

fig, axes = plt.subplots(1, 2, figsize=(12, 4))

# Bidirectional attention (no mask)
_, weights_bidi = scaled_dot_product_attention(Q, K, V)
im1 = axes[0].imshow(weights_bidi, cmap="Blues", vmin=0, vmax=1)
axes[0].set_xticks(range(4))
axes[0].set_xticklabels(tokens)
axes[0].set_yticks(range(4))
axes[0].set_yticklabels(tokens)
axes[0].set_title("Bidirectional Attention")
axes[0].set_xlabel("Key")
axes[0].set_ylabel("Query")
for i in range(4):
 for j in range(4):
 axes[0].text(j, i, f"{weights_bidi[i,j]:.2f}",
 ha="center", va="center", fontsize=9)

# Causal attention (masked)
causal_mask = np.triu(np.ones((4, 4), dtype=bool), k=1)
_, weights_causal = scaled_dot_product_attention(Q, K, V, mask=causal_mask)
im2 = axes[1].imshow(weights_causal, cmap="Oranges", vmin=0, vmax=1)
axes[1].set_xticks(range(4))
axes[1].set_xticklabels(tokens)
axes[1].set_yticks(range(4))
axes[1].set_yticklabels(tokens)
axes[1].set_title("Causal Attention (Masked)")
axes[1].set_xlabel("Key")
for i in range(4):
 for j in range(4):
 axes[1].text(j, i, f"{weights_causal[i,j]:.2f}",
 ha="center", va="center", fontsize=9)

plt.suptitle("Attention Weight Heatmaps", fontsize=13, fontweight="bold")
plt.tight_layout()
plt.savefig("attention_heatmaps.png", dpi=150)
plt.show()

def multi_head_attention(X, n_heads, d_model, W_q, W_k, W_v, W_o, mask=None):
 """
 X: input of shape (seq_len, d_model)
 W_q, W_k, W_v: projection matrices (d_model, d_model)
 W_o: output projection (d_model, d_model)
 """
 seq_len = X.shape[0]
 d_head = d_model // n_heads

 Q = X @ W_q # (seq_len, d_model)
 K = X @ W_k
 V = X @ W_v

 # Reshape into heads: (n_heads, seq_len, d_head)
 Q = Q.reshape(seq_len, n_heads, d_head).transpose(1, 0, 2)
 K = K.reshape(seq_len, n_heads, d_head).transpose(1, 0, 2)
 V = V.reshape(seq_len, n_heads, d_head).transpose(1, 0, 2)

 # Run attention on each head
 all_outputs = []
 all_weights = []
 for h in range(n_heads):
 out_h, w_h = scaled_dot_product_attention(Q[h], K[h], V[h], mask)
 all_outputs.append(out_h)
 all_weights.append(w_h)

 # Concatenate heads and project
 concat = np.concatenate(all_outputs, axis=-1) # (seq_len, d_model)
 output = concat @ W_o
 return output, all_weights

# Initialize random projections
d_model, n_heads = 16, 4
np.random.seed(0)
X = np.random.randn(4, d_model)
W_q = np.random.randn(d_model, d_model) * 0.1
W_k = np.random.randn(d_model, d_model) * 0.1
W_v = np.random.randn(d_model, d_model) * 0.1
W_o = np.random.randn(d_model, d_model) * 0.1

output, head_weights = multi_head_attention(X, n_heads, d_model, W_q, W_k, W_v, W_o)
print(f"Multi-head output shape: {output.shape}")
print(f"Number of attention heads: {len(head_weights)}")

import torch
import torch.nn as nn

d_model, n_heads, seq_len = 16, 4, 4
mha = nn.MultiheadAttention(embed_dim=d_model, num_heads=n_heads, batch_first=True)

x = torch.randn(1, seq_len, d_model) # (batch, seq, d_model)

# Causal mask for autoregressive attention
causal = nn.Transformer.generate_square_subsequent_mask(seq_len)

output, attn_weights = mha(x, x, x, attn_mask=causal)
print(f"PyTorch MHA output shape: {output.shape}")
print(f"PyTorch attention weights shape: {attn_weights.shape}")
print(f"Weights (averaged over heads):")
print(attn_weights[0].detach().numpy().round(3))
print("\nBoth implementations follow the same formula:")
print(" Attention(Q,K,V) = softmax(QK^T / sqrt(d_k)) V")
