Text Watermarking: Kirchenbauer Green-List and SynthID-Text

"Mark every other token green and pray the editor does not paraphrase. This is the entire LLM-watermarking literature in one sentence."

Token, Green-List-Veteran AI Agent

54.2.1 The Core Idea: Bias the Distribution, Decode the Bias

Imagine you are generating text one token at a time. At each step, the model has a probability distribution over the vocabulary. The trick is to partition the vocabulary into two sets, call them green and red, before each step, in a way that depends pseudo-randomly on the previous token. You then add a small bonus δ to the logits of green tokens and renormalize. The model still picks tokens that are good completions, but it has a measurable preference for green tokens at every step.

To detect the watermark on a piece of text, you re-derive the green-list partition for each position, count how often the actual chosen token was on the green list, and run a statistical test. If the green-token rate is much higher than the chance baseline (50% by default for a 50/50 partition), the text is watermarked with high confidence; if it's near 50%, it isn't.

54.2.2 The Kirchenbauer Algorithm in Detail

Let $V$ be the model's vocabulary. For each generation step $t$ with previous token $x_{t-1}$, the watermarked decoder modifies the logits as

where $H$ is a keyed hash, $K$ the secret key, $\gamma \in (0,1]$ the green-list fraction (typically $\gamma=0.5$), and $\delta$ the logit bias (typically $\delta = 2$). The next token is sampled from $\mathrm{softmax}(\ell'_t)$.

Algorithm: WATERMARKED-DECODE (Kirchenbauer et al., 2023)
Input:  Model p_theta, secret key K, gamma, delta,
        prompt x_{<=t0}, max tokens T
Output: Watermarked token sequence x_{t0+1:t0+T}

  For t = t0 + 1 to t0 + T:
    seed_t = H(x_{t-1}, K)
    G_t    = Top_{gamma|V|}( Permute(V; seed_t) )
    For each v in V:
      logits_t(v) = log p_theta(v | x_{<t})
      If v in G_t: logits_t(v) = logits_t(v) + delta
    x_t = sample from softmax(logits_t)
  Return x_{t0+1:t0+T}

Algorithm: WATERMARK-DETECT
Input:  Candidate text x_{1:n}, secret key K, gamma
Output: z-score, p-value, verdict in {WATERMARKED, NOT}

  s = 0    // count of green-list hits
  For t = 2 to n:
    G_t = Top_{gamma|V|}( Permute(V; H(x_{t-1}, K)) )
    If x_t in G_t: s = s + 1
  // Under H_0: s ~ Binomial(n-1, gamma)
  z = ( s - gamma * (n-1) ) / sqrt( (n-1) * gamma * (1 - gamma) )
  p_value = 1 - Phi(z)                  // one-sided
  verdict = WATERMARKED if z > 4 else NOT
  Return (z, p_value, verdict)

import hashlib
import torch
from transformers import AutoModelForCausalLM, AutoTokenizer

class GreenListWatermark:
    def __init__(self, model, tokenizer, secret_key: bytes,
                 gamma: float = 0.5, delta: float = 2.0):
        self.model = model
        self.tokenizer = tokenizer
        self.vocab_size = model.config.vocab_size
        self.secret_key = secret_key
        self.gamma = gamma
        self.delta = delta

    def _green_list(self, prev_token_id: int) -> torch.Tensor:
        """Returns a boolean mask of size vocab_size; True = green."""
        h = hashlib.sha256(self.secret_key + prev_token_id.to_bytes(4, "big")).digest()
        seed = int.from_bytes(h[:4], "big")
        g = torch.Generator().manual_seed(seed)
        perm = torch.randperm(self.vocab_size, generator=g)
        green_size = int(self.gamma * self.vocab_size)
        mask = torch.zeros(self.vocab_size, dtype=torch.bool)
        mask[perm[:green_size]] = True
        return mask

    def generate(self, prompt: str, max_new_tokens: int = 50) -> str:
        ids = self.tokenizer(prompt, return_tensors="pt").input_ids[0]
        for _ in range(max_new_tokens):
            with torch.no_grad():
                logits = self.model(ids.unsqueeze(0)).logits[0, -1]
            green = self._green_list(int(ids[-1]))
            logits[green] += self.delta
            next_id = int(torch.argmax(logits))  # or sample with softmax
            ids = torch.cat([ids, torch.tensor([next_id])])
        return self.tokenizer.decode(ids, skip_special_tokens=True)

    def detect(self, text: str) -> dict:
        ids = self.tokenizer(text, return_tensors="pt").input_ids[0]
        n_green = 0
        n_total = 0
        for i in range(1, len(ids)):
            green = self._green_list(int(ids[i - 1]))
            if green[int(ids[i])]:
                n_green += 1
            n_total += 1
        expected = self.gamma * n_total
        std = (n_total * self.gamma * (1 - self.gamma)) ** 0.5
        z = (n_green - expected) / std if std > 0 else 0
        return {"n_tokens": n_total, "n_green": n_green, "z_score": z,
                "watermarked": z > 4.0}

54.2.3 SynthID-Text: Tournament Sampling at Google Scale

SynthID-Text, deployed in production across Gemini in late 2024, generalizes the green-list scheme. Instead of a binary green/red partition, SynthID-Text uses a tournament: at each step, it samples k candidate tokens from the model's distribution, then runs a single-elimination tournament where the winner is determined by a pseudo-random function keyed on context and a secret. The winner is emitted as the next token.

Key properties from the published DeepMind paper (Dathathri et al., 2024, Nature):

• Distortion-free at low strength. Sampling from the tournament with the right parameters yields a distribution that is statistically indistinguishable from the original, but still detectable in aggregate over >100 tokens.
• Detectable at production thresholds. SynthID-Text achieves >95% detection at false-positive rate <1% on Gemini outputs of 200+ tokens.
• Robust under moderate paraphrasing. Detection survives word-level paraphrasing of up to ~25% of tokens. Sentence-level rewrites by a separate LLM degrade detection more substantially.

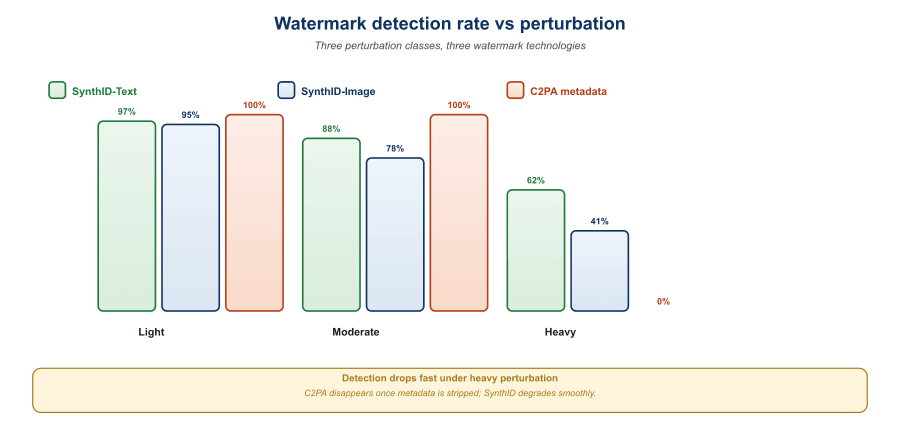

54.2.4 Robustness: What Watermarks Survive and What Kills Them

Empirical robustness data, mostly from the Kirchenbauer 2023 follow-ups and the SynthID-Text paper, gives a sober picture.

Survives: typo correction, whitespace normalization, minor punctuation changes, light Grammarly-style edits. Adding ~5% of human edits to a 500-token watermarked passage typically leaves the z-score above the detection threshold.

Degrades: word-level synonym substitution (each substitution has ~50% chance of moving the new token off the green list), translation to another language and back. With ~30% of tokens substituted, detection drops to chance.

Defeats: full LLM-based paraphrasing (re-generating the text via another model), sentence reordering, summarization. These are generative attacks, the attacker has access to an LLM, so the cost of removal is the same as the cost of original generation.

54.2.5 Practical Deployment Considerations

Five issues come up in every production deployment.

Quality tradeoff. A higher δ gives stronger detection at the cost of pushing the output distribution further from the unwatermarked version. SynthID-Text's tournament scheme is designed to minimize this tradeoff; the operating point for Gemini is reported as effectively imperceptible on human-evaluation studies.

Short-text undetectability. All current schemes need ~50-200 tokens to achieve reliable detection. Tweets, single sentences, and code snippets are essentially undetectable. This is a fundamental information-theoretic limit, not an implementation flaw.

Key management. The secret key used for green-list seeding must be guarded. If it leaks, attackers can deliberately produce text with adversarial low z-scores (text that looks watermarked is not), undermining the detector's credibility.

Per-language behavior. Green-list watermarks behave differently across languages because vocabularies have different size and entropy. SynthID-Text reports per-language calibration; if you fine-tune for a new language, recalibrate.

Detection-as-a-service. Google ships a detector that runs server-side: you submit text and a model identifier, the API returns a confidence score. This makes detection accessible without exposing the secret key. Cost is currently negligible (under $0.001 per call). The trade-off is centralization: you must trust Google's API to behave honestly.

Section 54.3 moves from text to images and video. We will cover the C2PA Content Credentials specification (versions 2.x), Google DeepMind's SynthID-Image (pixel-domain watermarking that survives JPEG re-encoding), and Adobe's Content Credentials in production at the AP, Microsoft, and the BBC. Image provenance is further along than text in real-world deployment, partly because the cryptographic-signature approach (C2PA) has a simpler threat model than statistical watermarking.
