Function Calling Across Providers

"Give a model a tool and it will use it. Give it the wrong JSON schema and it will use it creatively."

Pip, Schema-Validated AI Agent

27.1.1 The Function Calling Interface

Function calling is the wire format for the tool-call slot of the agent loop: the model emits structured JSON naming a function and its arguments, and your application is responsible for executing it and returning the result. Every major provider now supports it; the schema format, multi-tool handling, and streaming behavior differ.

OpenAI was the first major provider to ship function calling (June 2023), and their format has become the de facto standard that many open-source frameworks adopt. Anthropic's tool use implementation adds explicit thinking before tool calls. Google's Gemini API supports function calling with automatic function execution in some modes. Open-source models accessed through frameworks like Ollama or vLLM increasingly support function calling, though the reliability varies by model size and training data.

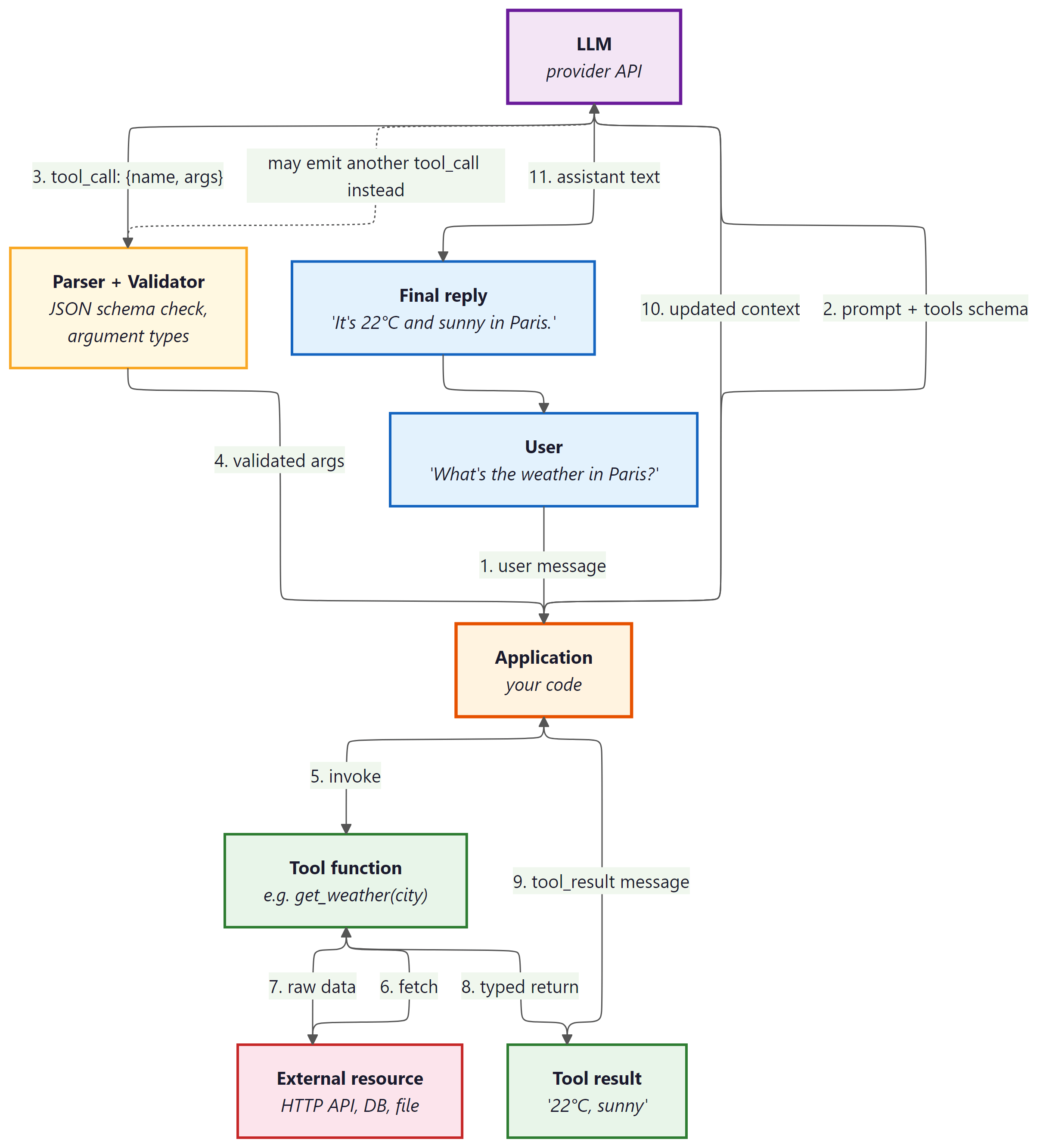

Figure 27.1.2: The function-calling loop expanded into eleven labelled steps with named actors (User, Application, LLM, Parser+Validator, Tool function, External resource, Tool result, Final reply). The dashed loop back from LLM to Parser is the iteration mechanism: an agent that decides it needs more information emits another tool_call instead of a final reply, repeating steps 3 to 10 until it has what it needs.

Input: user message M, tool schemas {T1, ..., Tn}, LLM model, max iterations K
Output: final text response

1. messages = [system_prompt, M]
2. for i = 1 to K:
  a. response = LLM(messages, tools={T1, ..., Tn})
  b. if response has no tool_calls:
  return response.content // final answer
  c. Append assistant message (with tool_calls) to messages
  d. for each tool_call in response.tool_calls:
  i. name = tool_call.function.name
  ii. args = parse_json(tool_call.function.arguments)
  iii. result = execute(name, args)
  iv. Append tool result message (role="tool", id=tool_call.id) to messages
3. return "Max iterations reached"

OpenAI Function Calling

This snippet defines a tool schema and processes function-call responses using the OpenAI function calling API.

from openai import OpenAI

client = OpenAI()
tools = [
    {
        "type": "function",
        "function": {
            "name": "get_weather",
            "description": "Get the current weather for a location",
            "parameters": {
                "type": "object",
                "properties": {
                    "location": {
                        "type": "string",
                        "description": "City and state, e.g. San Francisco, CA",
                    },
                    "unit": {
                        "type": "string",
                        "enum": ["celsius", "fahrenheit"],
                        "description": "Temperature unit",
                    },
                },
                "required": ["location"],
            },
        },
    }
]
response = client.chat.completions.create(
    model="gpt-4o",
    messages=[{"role": "user", "content": "What is the weather in Paris?"}],
    tools=tools,
    tool_choice="auto",
)
# Handle the tool call
tool_call = response.choices[0].message.tool_calls[0]
print(f"Function: {tool_call.function.name}")
print(f"Arguments: {tool_call.function.arguments}")

from pydantic_ai import Agent
agent = Agent("openai:gpt-4o")
@agent.tool_plain
def get_weather(location: str, unit: str = "celsius") -> str:
    """Get the current weather for a location."""
    return f"72F, partly cloudy in {location}"
result = agent.run_sync("What is the weather in Paris?")
print(result.data)

Anthropic Tool Use

This snippet defines tools and handles tool-use responses using the Anthropic messages API.

import anthropic

client = anthropic.Anthropic()
tools = [
    {
        "name": "get_weather",
        "description": "Get the current weather for a location",
        "input_schema": {
            "type": "object",
            "properties": {
                "location": {
                    "type": "string",
                    "description": "City and state, e.g. San Francisco, CA",
                },
                "unit": {
                    "type": "string",
                    "enum": ["celsius", "fahrenheit"],
                    "description": "Temperature unit (default: celsius)",
                },
            },
            "required": ["location"],
        },
    }
]
response = client.messages.create(
    model="claude-sonnet-4-20250514",
    max_tokens=1024,
    tools=tools,
    messages=[{"role": "user", "content": "What is the weather in Paris?"}],
)
# Anthropic returns tool_use blocks within the content array
for block in response.content:
    if block.type == "tool_use":
        print(f"Tool: {block.name}, Input: {block.input}")

from pydantic_ai import Agent
# Same code works with any provider; just change the model string
agent = Agent("anthropic:claude-sonnet-4-20250514") # or "openai:gpt-4o"
@agent.tool_plain
def get_weather(location: str, unit: str = "celsius") -> str:
    """Get the current weather for a location."""
    return f"22C, sunny in {location}"
result = agent.run_sync("What is the weather in Paris?")

To understand why function calling is architecturally significant (and not just a convenience feature), consider what happens without it. Before structured function calling, agents had to embed tool invocations in natural language ("I should search for 'weather Paris'"), and application code had to parse these free-form strings with regex or heuristics. This was fragile: minor rephrasing broke the parser, and the model had no formal contract specifying valid actions. Structured function calling introduces a type system for agent actions. The JSON schema defines exactly what the model can do, with what parameters, and in what format. This transforms agent tool use from "string parsing with fingers crossed" into a well-defined API contract, enabling reliable orchestration, automatic validation, and composable tool chains as explored in Section 27.2 (MCP).

27.1.2 Multi-Tool Orchestration

Real agents need multiple tools working together. A research agent might search the web, extract content from URLs, store findings in a database, and generate a report. The model must decide not only which tool to call but in what order, and it must handle the data flow between tool calls. Modern APIs support parallel tool calling, where the model can request multiple tool executions in a single response, significantly reducing the number of round trips for independent operations.

The agent loop for multi-tool orchestration follows a standard pattern: send the user message with all tool definitions, receive the model's response (which may contain one or more tool calls), execute all requested tools, return all results in a single follow-up message, and repeat until the model produces a final text response without tool calls. Managing this loop correctly, especially handling errors from individual tool calls without derailing the entire conversation, is a core engineering challenge.

27.1.3 Open-Source Function Calling

Open-source models have rapidly closed the gap in function calling capability. Models like Llama-3.1 (with tool use training), Mistral's function calling models, and Qwen 2.5 support structured tool interactions. These models can be served through vLLM, Ollama, or TGI with OpenAI-compatible API endpoints, making them drop-in replacements for many use cases. The trade-off is typically reliability: frontier models handle complex multi-tool scenarios more robustly, while open-source models may require more careful prompt engineering and schema design.

For teams that need to keep data on-premises or require custom fine-tuning for domain-specific tools, open-source function calling models provide a viable path. Fine-tuning on examples of your specific tool schemas and usage patterns can bring open-source models to near-frontier reliability for a constrained tool set. The ToolACE and Gorilla projects have demonstrated that targeted training on tool-use data can produce highly capable tool-using models from relatively small base models.

Supervised fine-tuning for function calling (OpenAI's API)

The most straightforward way to specialize a model for your tool catalogue is supervised fine-tuning on labelled (input, tool-call) pairs. OpenAI's fine-tuning API accepts the same chat-format JSONL used for standard SFT, with each training example specifying the user message, any required system context, and the expected assistant message containing a tool_calls array with the canonical name and argument JSON. With as few as 50 to 200 high-quality examples per tool, a fine-tuned gpt-4o-mini typically closes most of the gap to gpt-4o on the trained tools while costing several times less per call. The general fine-tuning mechanics (data formatting, training-loss monitoring, evaluation splits) live in Chapter 16; the tool-call-specific addition is just the schema for the assistant message.

Toolformer: self-supervised tool learning with a loss-reduction filter

Hand-labelling enough (input, tool-call) pairs to cover a real tool catalogue is expensive. Toolformer (Schick et al., 2023) showed that the model can mine its own training data with no human annotation, starting from any plain text corpus. The procedure has four stages. First, the LLM is prompted with a few-shot template that asks it to nominate insertion points inside an unlabelled passage (typically after punctuation or noun phrases) where a tool call might plausibly help. Second, at each candidate point the LLM samples several possible tool calls (for example, "[Calculator(231 * 17)]" or "[QA('Who founded Tesla?')]"), each conditioned on the surrounding context. Third, every sampled call is actually executed against the real tool, and the result is spliced back into the passage just after the call. Fourth, and crucially, each candidate is kept only if it reduces the completion loss on the remaining tokens of the original passage, compared to the loss with no call (or with the call but no result). The intuition is that a useful tool-call lowers the model's perplexity on the bytes that came after, because the result span tells the model something it would otherwise have to guess; an unhelpful or hallucinated call leaves the loss flat or higher.

The filtered (input + call + result) sequences become the SFT training set. During fine-tuning the loss is masked on the result span so that the model learns when to emit the call and how to format it, but not to predict what the tool will return (that is the tool's job at inference). The original paper fine-tuned GPT-J 6.7B on five tools (calculator, Wikipedia search, QA, calendar, machine translation) and reached or exceeded much larger models on each tool's downstream tasks. The pattern (insertion-point proposal, sample-and-execute, loss-reduction filter, masked SFT) generalizes well beyond the original tool set and is now the standard recipe for bootstrapping tool data when labelled examples are scarce.

The loss-reduction filter is the heart of the method. For a passage x with a candidate tool call c inserted at position i and the executed result r, the filter compares two weighted next-token losses on the suffix x[i:]:

$$ L_{\text{call}}(c, r) = -\sum_{t \ge i} w_t \log p_M(x_t \mid x_{<i}, c, r, x_{i:t-1}) $$

$$ L_{\text{no-call}} = -\sum_{t \ge i} w_t \log p_M(x_t \mid x_{<t}) $$

The candidate is kept iff $L_{\text{no-call}} - L_{\text{call}}(c, r) \ge \tau$, where $\tau$ is a small positive threshold (the paper uses values such as 1.0 nat per token of suffix). $p_M$ is the same frozen LM used in stage 2; the weights $w_t$ decay with distance from the call site so that nearby tokens dominate the score. Intuitively, a useful call gives the model information it would otherwise have to guess, so the post-call distribution is sharper on the actual continuation; a hallucinated or off-topic call leaves the distribution unchanged or worse.

def loss_reduction_filter(model, passage, call, result, i, tau=1.0):
    """Keep a Toolformer candidate iff it lowers suffix loss by at least tau."""
    suffix = passage[i:]
    # With-call context: insert "[call] -> result" just before the suffix.
    ctx_call = passage[:i] + format_call(call, result)
    ctx_none = passage[:i]
    L_call = weighted_nll(model, ctx_call, suffix)   # eq. for L_call above
    L_none = weighted_nll(model, ctx_none, suffix)   # eq. for L_no_call above
    return (L_none - L_call) >= tau                   # True -> add to SFT set

def mine_toolformer_data(model, corpus, tool, k=5):
    examples = []
    for passage in corpus:
        for i in propose_insertion_points(model, passage):     # stage 1
            for call in sample_calls(model, passage, i, n=k):  # stage 2
                result = tool.execute(call)                    # stage 3
                if loss_reduction_filter(model, passage, call, result, i):
                    examples.append((passage, i, call, result))  # stage 4
    return examples  # masked-SFT training set

ToolkenGPT: tools as vocabulary tokens with a frozen LM

An alternative to fine-tuning the whole model on every tool is to leave the base LM completely frozen and add a small, trainable head that decides when to switch into tool mode. ToolkenGPT (Hao et al., 2023) does exactly this. The vocabulary is extended with one new toolken per tool (for example, <tool:calculator>, <tool:search>); next-token logits are produced by concatenating the frozen LM head with a small trainable projection that scores only the toolkens. At inference, if a toolken's score beats every word-token score the model switches to "tool mode": it greedily completes the call signature (writing "<tool:calculator>(" then the arguments under an in-context-learning prompt), the runtime executes the tool, the result is appended to the stream, and the model returns to normal decoding. Training touches only the toolken projection, so adding a new tool is a matter of training one extra logit while the rest of the network and the original vocabulary stay frozen, an attractive property when the base model is large or proprietary.

The trade-off versus Toolformer is the usual frozen-vs-tuned trade-off: ToolkenGPT is cheap to update (one new toolken per tool, no full retraining) and preserves the base model's general capabilities perfectly, while Toolformer can shape the model's argument-formatting behaviour more aggressively at the cost of needing a full SFT run per generation of tools. In practice both ideas continue to be useful, sometimes combined: a Toolformer-style data-mining stage produces the (input, call, result) corpus, and a ToolkenGPT-style frozen-backbone head decides at inference time which call to fire.

Concretely, let $h \in \mathbb{R}^d$ be the final hidden state, $W_{\text{LM}} \in \mathbb{R}^{|V| \times d}$ the frozen LM output matrix, and $W_T \in \mathbb{R}^{|T| \times d}$ the trainable toolken head with one row $e_t$ per tool $t \in T$. The next-token distribution over the extended vocabulary $V \cup T$ is:

$$ p(y \mid h) = \mathrm{softmax}\big([\, W_{\text{LM}} h \,;\, W_T h \,]\big) $$

$$ \mathcal{L}_{\text{toolken}} = -\sum_{(h, t^\star) \in \mathcal{D}} \log p(t^\star \mid h) $$

Only $W_T$ receives gradient updates; $W_{\text{LM}}$ and every transformer layer stay frozen. The training set $\mathcal{D}$ pairs hidden states from positions where a tool should fire with the gold toolken $t^\star$, mined either from human demos or from a Toolformer-style filter. Because each new tool adds exactly one row to $W_T$, the cost of expanding the tool catalogue is $\mathcal{O}(d)$ parameters per tool rather than a full fine-tune.

import torch, torch.nn as nn, torch.nn.functional as F

class ToolkenHead(nn.Module):
    """Adds |T| trainable logits on top of a frozen LM head."""
    def __init__(self, hidden_dim: int, num_tools: int):
        super().__init__()
        self.W_T = nn.Linear(hidden_dim, num_tools, bias=False)   # only trained matrix

    def forward(self, h, frozen_word_logits):
        tool_logits = self.W_T(h)                                  # (B, |T|)
        return torch.cat([frozen_word_logits, tool_logits], dim=-1)  # (B, |V|+|T|)

@torch.no_grad()
def generate_with_toolkens(lm, head, tokenizer, tools, prompt, max_new=64):
    ids = tokenizer.encode(prompt, return_tensors="pt")
    for _ in range(max_new):
        out = lm(ids, output_hidden_states=True)
        h = out.hidden_states[-1][:, -1]                           # final hidden state
        logits = head(h, out.logits[:, -1])
        nxt = int(logits.argmax(-1))
        if nxt >= tokenizer.vocab_size:                            # a toolken won
            tool = tools[nxt - tokenizer.vocab_size]
            args = lm.complete_args_in_context(ids, tool)          # ICL args sketch
            result = tool.run(**args)
            ids = torch.cat([ids, tokenizer.encode(f"=>{result}", return_tensors="pt")], dim=1)
        else:
            ids = torch.cat([ids, torch.tensor([[nxt]])], dim=1)
    return tokenizer.decode(ids[0])

Gorilla and Gorilla CLI: retrieval-augmented tool selection at scale

Fine-tuning works when the tool catalogue is small enough to fit in the training set. When the catalogue is large (thousands of cloud APIs, the npm registry, a corporate API zoo), enumerating every call in SFT becomes impractical. Gorilla (Patil et al., 2023) and the Gorilla CLI productisation address this with retrieval-augmented tool selection. A vector index is built over the API documentation; at inference time the user's request first retrieves the top-k candidate API specs from the index, those specs are prepended to the prompt as in-context examples, and the fine-tuned Gorilla model writes the call against them. The same mechanism powers Gorilla CLI's user-facing pattern ($ gorilla "list all my GCP instances" or $ gorilla "order my pizza"): the natural-language request is rewritten into an executable command by selecting from an API zoo of thousands of community-contributed specs. The general lesson is that for large tool catalogues, the right architecture is RAG over the tool registry, not SFT on every endpoint; the function-calling mechanism becomes the wire format, and retrieval becomes the routing layer.

from sentence_transformers import SentenceTransformer
import faiss, numpy as np
from transformers import AutoTokenizer, AutoModelForCausalLM

# 1) Build a vector index over API specs once.
specs = load_api_specs("api_zoo/")           # list of {name, signature, doc}
encoder = SentenceTransformer("BAAI/bge-small-en-v1.5")
spec_vecs = encoder.encode([s["doc"] for s in specs], normalize_embeddings=True)
index = faiss.IndexFlatIP(spec_vecs.shape[1])
index.add(spec_vecs.astype(np.float32))

# 2) Gorilla LM does the call-writing.
tok = AutoTokenizer.from_pretrained("gorilla-llm/gorilla-7b-hf-v1")
lm  = AutoModelForCausalLM.from_pretrained("gorilla-llm/gorilla-7b-hf-v1")

def gorilla_call(query: str, k: int = 3) -> str:
    q = encoder.encode([query], normalize_embeddings=True).astype(np.float32)
    _, idx = index.search(q, k)                              # top-k spec ids
    context = "\n\n".join(specs[i]["signature"] for i in idx[0])
    prompt  = f"### API specs:\n{context}\n\n### User: {query}\n### Call:"
    out = lm.generate(**tok(prompt, return_tensors="pt"), max_new_tokens=128)
    return tok.decode(out[0], skip_special_tokens=True).split("### Call:")[-1].strip()

Exercises
